Rohde & Schwarz ELEMI-A – ELEKTRA EMI Extension

Rohde & Schwarz ELEMI-A – ELEKTRA EMI Extension

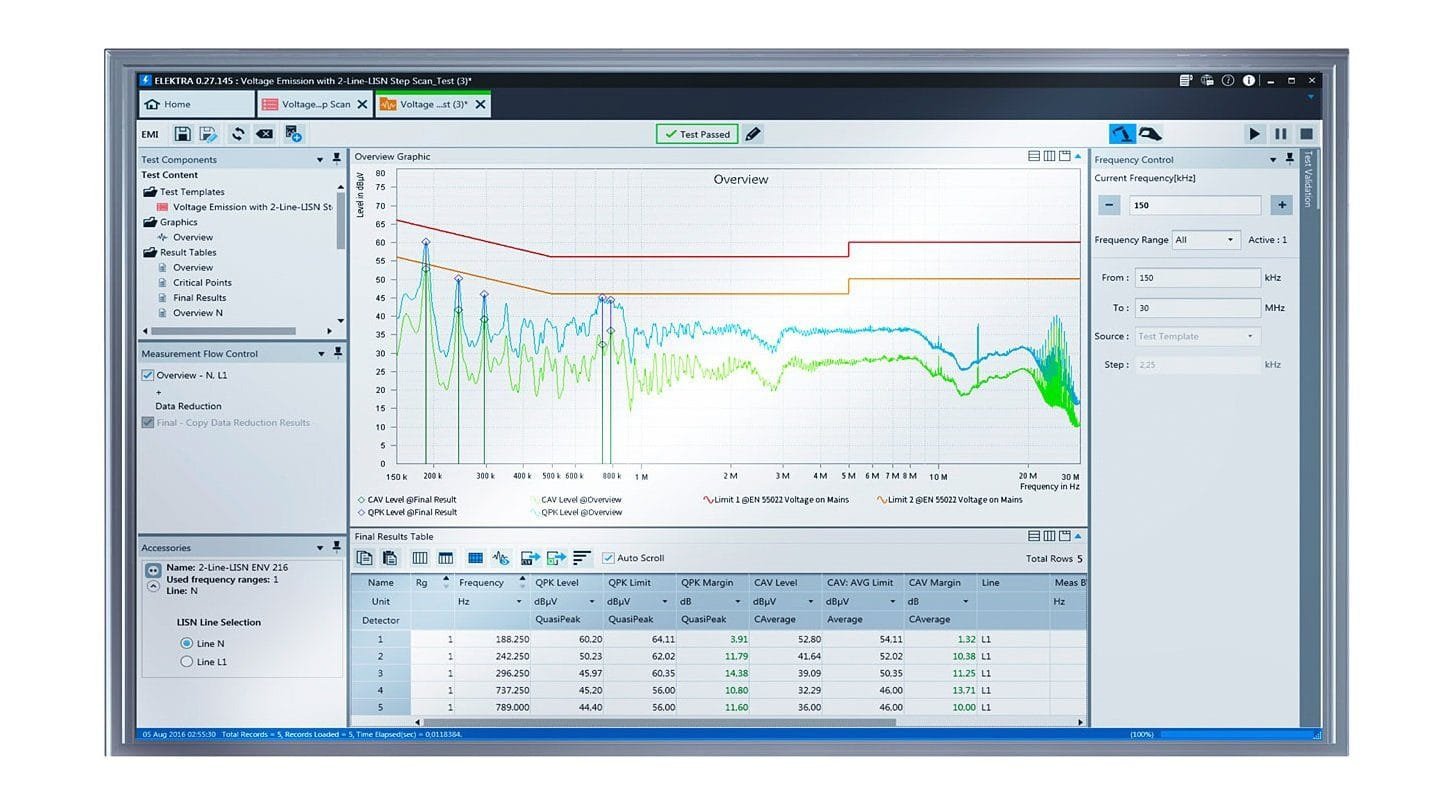

The R&S®ELEKTRA EMC test software is a solution that controls complete EMC systems and automates measurements on equipment under test (EUT) that is being tested for emissions (EMI) and immunity (EMS) compliance.

New, reliable and highly efficient automatic and interactive measuring procedures create accurate results and allow in-depth analysis of EMI and EMS measurements during development and certification. This reduces the time needed to develop and certify products. R&S®ELEKTRA features a predefined software library in accordance with the common standards – including relevant limit lines, test setups and transducer factors – to simplify configuration and enable users to start testing faster. The ability to create EUT test plans allows users to build and define EUT-applicable tests and prepare comprehensive reports in advance. The dashboard with favorites (frequently used items), tagging and search functions and the all-in-one page interface enhances usability and allows users to easily navigate through the huge amount of data created during EMC testing. Planning, execution and reporting of test campaigns based on the EUT enables users to maintain an overview. Test setups, measurement procedures and reports can be tailored to user requirements for tests that differ from the standards. R&S®ELEKTRA has an open interface that supports a huge variety of instruments and system components.

Sleek, fast and modern
With a revolutionary user interface (UI) design, R&S®ELEKTRA is future-ready. The sleek, fast and modern UI focuses on good typography with a large, scalable, high-resolution design optimized for touchscreen devices.

The R&S^®ELEKTRA dashboard with multiple favorite items “pinned” for one-click access

Powerful search function that combines searches in different categories with searches using filters and tags

EMI autotest template where hardware setups and configurations can be viewed and changed directly with the all-in-one page interface

Increase your Test throughput​

R&S^®ELEKTRA is designed for compatibility with powerful EMC testing instruments to boost testing speed with automated test execution.

Automated execution of tests

R&S^®ELEKTRA allows automated execution of tests by controlling and monitoring the test instruments used. The automated test execution and interactive test modes can be toggled to enable detailed debugging. Users can simulate and validate test configurations and procedures prior to actual testing to ensure hardware resources are used efficiently.

Migration Features

Migration wizard

R&S^®ELEKTRA allows existing R&S^®EMC32 users to easily migrate the hardware setup, test templates, settings and tests from R&S^®EMC32 to R&S®ELEKTRA.
