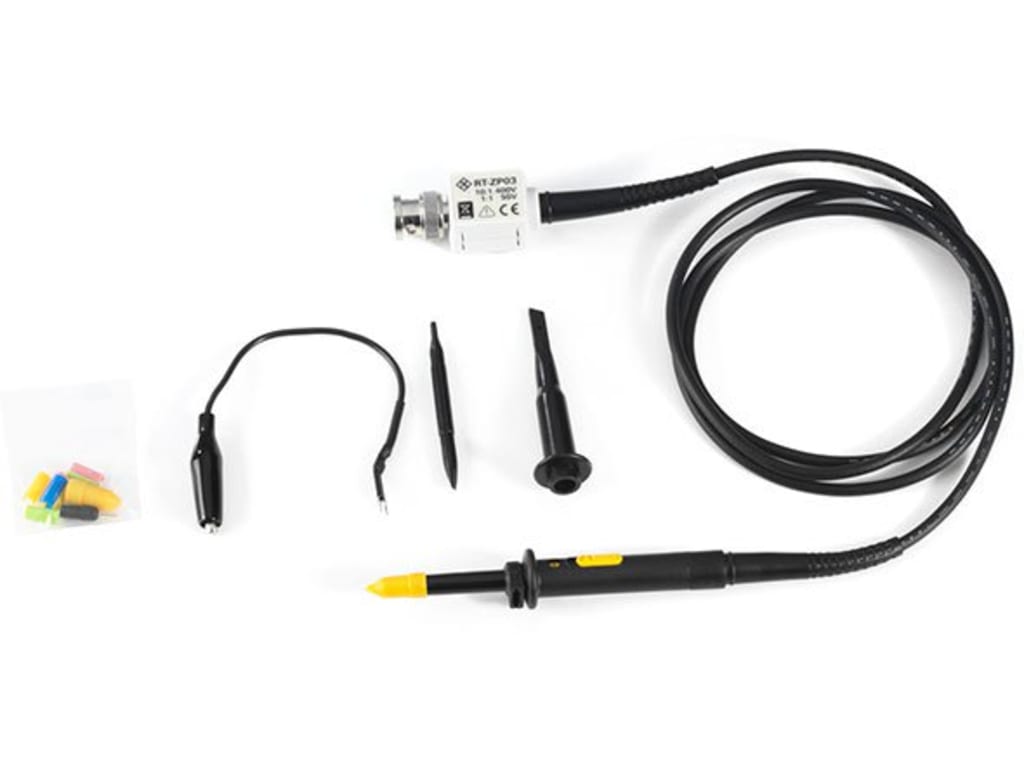

Rohde & Schwarz RT-ZP03S Passive Probe 1:1 (10MHz), 10:1 (300MHz)

• 5 mm tip, no probe detection
• Bandwidth: 300 MHz
• Maximum voltage: 400 V (RMS) / 55 V (RMS)
• Attenuation factor: 10:1 / 1:1
• Input impedance: 10 MΩ || 12 pF / 1 MΩ || 82 pF

Universal application

Rohde & Schwarz passive probes are the all-rounders in the world of probes. They are low-cost, general purpose probing solutions for a broad range of applications. The BNC connector allows them to be used on almost any oscilloscope. Passive probes with readout pin enable Rohde & Schwarz oscilloscopes to automatically detect the attenuation factor. A spring-loaded tip ensures good contact with the DUT.

Individual adjustment for precise measurements

In order to achieve optimum measurement accuracy, passive probes with a probe bandwidth larger than 350 MHz must be adjusted to the input impedance of the oscilloscope. Rohde & Schwarz offers the R&S RTM-ZP10 and the R&S RT-ZP10 500 MHz passive probes, which are preadjusted for the R&S RTM and the R&S RTO oscilloscopes, respectively.

Extensive accessories

For optimal contacting, Rohde & Schwarz offers the R&S RT-ZA1 accessory set for passive probes. It includes spare spring-loaded tips, rigid tips, ground contact springs, ground leads and color-coded rings.

Derating

Note that the input impedance of the probe

decreases as the frequency of the applied signal increases..

The probe can be adjusted for low (LF) and high-frequency compensation (HF).
