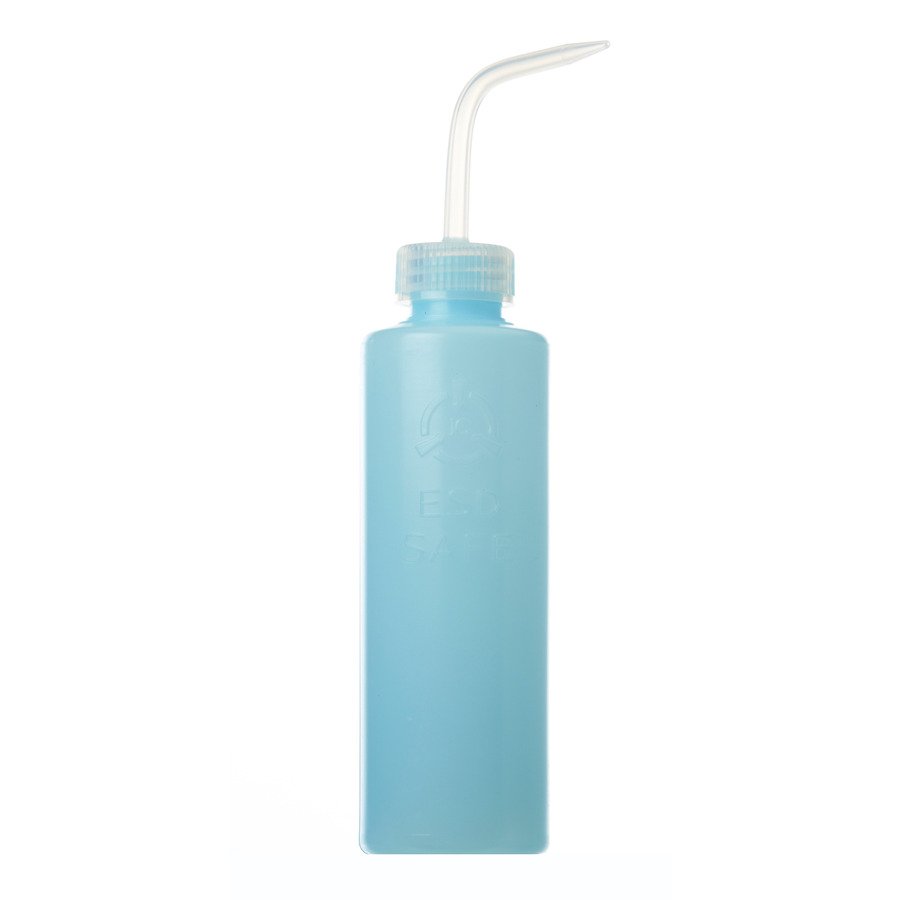

R&R Lotion WHB-8-ESD – I.C. Bottle, ESD Safe, with 90 Deg. Stem, 8oz

I.C. ESD Safe Wash Bottles are designed to safely cleanse your labware or equipment and store your washing solutions in any cleanroom or sterile environment. Surface resistivity of 10^9 to 10^10 Ω/sq, and an average static decay rate of 0.5 seconds at 40% RH guarantee ease of access into static-sensitive environments. An easily cut spout customizes water pressure and, along with a long straw attachment, allows for functional use at any angle.

Directions For Use:

Unfasten the nozzle from the bottle to fill the ESD bottle with the solution. Tightly refasten the nozzle and press to prime or dispense the solution.

Uses:

• For use in a cleanroom or sterile environment
• For use cleansing or rinsing lab equipment or beakers
• For use in storing cleaning solutions or solvents

Applications:

Electronics Manufacturing, Cleanrooms, Static-Sensitive Environments

Workplace Certifications and Testing:

• Exceeds MIL-B-81705 & NFPA-56A “Electrostatic decay in accordance with Federal Test Standard 101, method 4046.”
• Tested to ESD ADV 11.21 surface resistance of Electrostatically dissipative materials between 1 x 10^4 and < 1 x 10^11
• Helps support the ESD control program requirements stated in ANSI/ESD S20.20.
• Meets EIA 625 triboelectric charge standards.
• Helps Meet ANSI/ESD S4.1
• DOD-HDBK-263 Military Spec Compliant
