Description
Sauermann Si-RD3
- Detects most common refrigerants and mixtures including all HCFC and HFC refrigerants, R1234yf, R1234ze, R290, R600a, and 5% hydrogen–95% nitrogen mixtures
- High sensitivity mode measurement range: 0 – 3 g/year
- Medium sensitivity mode measurement range: 0 – 30 g/year
- Low sensitivity mode measurement range: 0 – 300 g/year
- 30cm (11.8-inch) flexible probe
Refrigerant Leak Detector
The Sauermann Si-RD3 refrigerant leak detector uncovers leads of most common refrigerant gases to a high degree of sensitivity, including all HCFC and HFC refrigerants, R1234yf, R1234ze, R290, R600a, and 5% hydrogen-95% nitrogen mixtures (Nidron 5 and Trace-A-Gas).
The Si-RD3 complies with the EN 14624 standard that determines the following points:
Minimum threshold of sensitivity: Fixed: < 1 g/year at 3 mm; In moving air: 2 g/year, 2 cm/s at 3 mm
Minimum time of detection (1 g/year): 1 second
Autozero: 2 seconds
Recuperation time after exposition: from 1 to 10 seconds (depending on detection level and threshold of sensitivity)
The detector is supplied with a verification certificate according to 2007-737 decree.

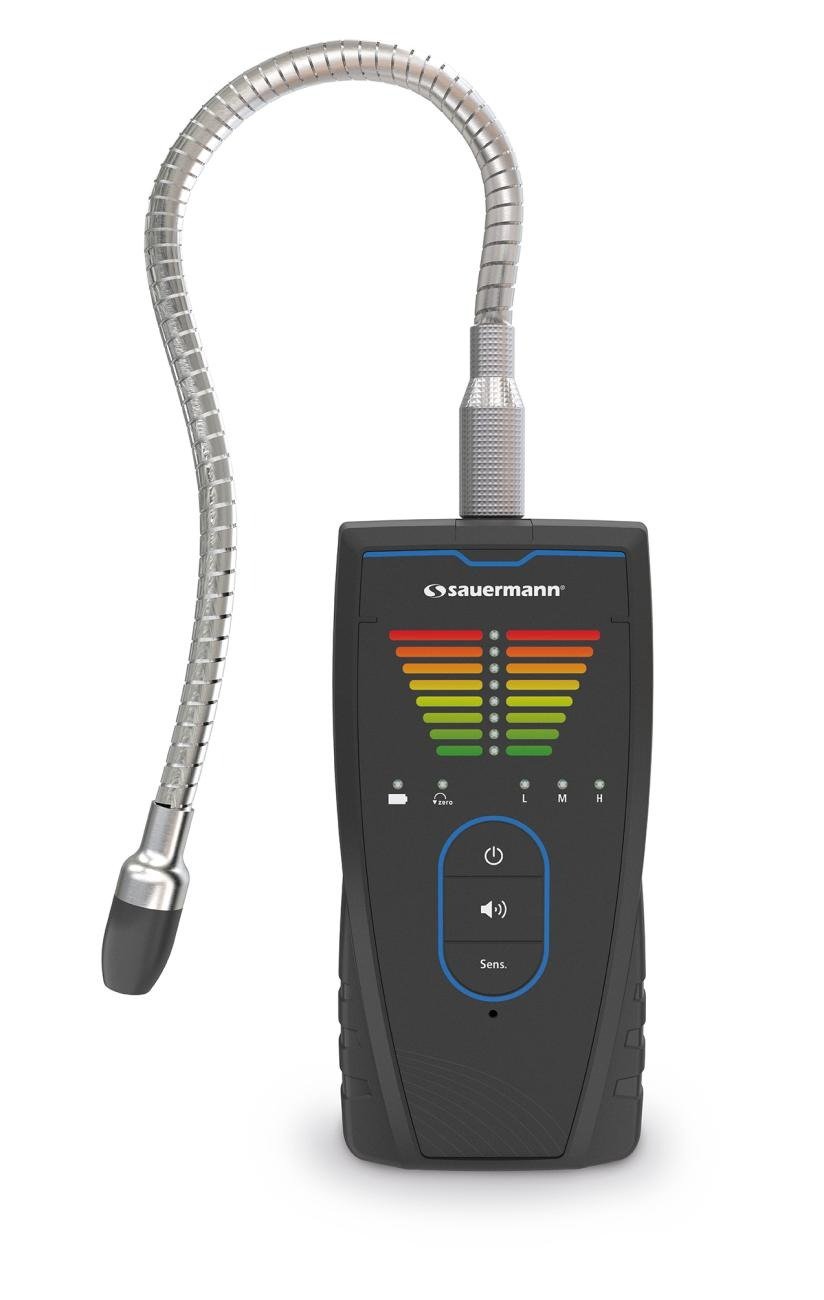

Device Description
A. Detection probe
B. LED graphic visualization of thresholds
C. LED indication of sensitivity
D. On/Off button
E. Activate/Deactivate audible signal
F. Sensitivity/Manual autozero button
G. Battery LED
H. Autozero LED
HVAC Equipment and Instruments/Refrigerant HVAC/Refrigerant Leak Detectors Template | |
|---|---|
| Refrigerant Detection | CFC, HCFC, HFC |
| Adjustable Sensitivity Levels | Yes |
| Type of Alarm | Audible, Visual |
| Refrigerant & Gas Detected | CFC, HCFC, HFC |
| Flexible Probe | Yes |
| Auto Zero | Yes |
| Battery Life | 12 HR |
Product General Attributes | |
| Warranty | 2 YEARS |
| Product Weight | 10.4 OUNCES (0.65 LBS) |
| Product Height | 1.34 IN |
| Product Length | 20.16 IN |
| Product Width | 2.81 IN |
| Battery Type | AAA |
| Power Supply Voltage | Battery Powered |
