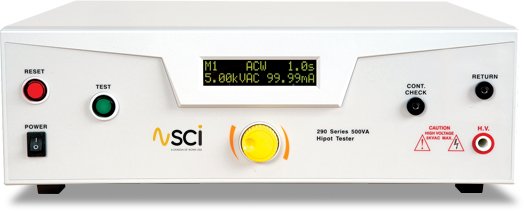

SCI 298 – AC Hipot (5 kV, 99.99 mA)

With a separate function that allows for Output up to 100 mA of current during an AC Hipot test.

The factory default allows for storing test values in 5 memory locations.
Option 04 – 10 Memory Option
This option increases the total number of memory locations on the tester from 5 memories to 10 memories. With this option the tester will display memories M0 to M9 for a total of 10 memory locations.

Alternatively the tester is programmable with the following option:
Option 03 – USB interface.
This option may be added as a serial type communication protocol. This option provides all of the function control of the USB
interface. The Type B USB connector labeled “USB” is for connection of the SCI 290 Series Testers to any compatible PC. When selecting USB Interface, the protocol for interfacing and communicating with a PC can be found in Appendix D: Remote Bus
Interface: USB of this manual.

Range: 0.1 A, Fixed
Accuracy: ± 0.01 A

Option List
Code Description
01 Rear Output Kit
03 USB Port
04 10 Memory Option
05 Dual Test Switch Compatibility
06 3mA AC/DC Current Limit
07 Pulse Mode (model 295 only)
08 Push to Test Mode (model 295 only)

The SCI 290 series of testers are equipped with 5 memory programs numbered 1 through 5. Each memory can be
connected sequentially to the next consecutive memory. Only one test type can be selected for each memory location.
However, all 5 memory locations can be programmed and the parameters will be saved in each memory. The tests loaded
in each memory location can be executed one at a time or as a sequence.
Optional upgrade to 10 memory locations.

This tester was calibrated using standards that are traceable to the National Institute of Standards and Technology (NIST).

100 – 120 / 220 – 240V Auto Range, ± 10% variation
