Seaward 109A913 PR33D High Voltage Testing Phasing Sticks

• PR33D Digital Phasing Unit up to 33KV & Proving Unit
• Provides a means of phase angle comparison and indication of phase angle voltage at the point of intended paralleling of two circuits on neutral earthed systems
• Kit comprises two elements with resistor chains, one with digital indicator and the second a phasing rod
• Both units are digital instruments
• Chart provides a means of checking phase angle difference of circuits paralleled
• Comes with NIST Calibration Certificate

The PR33D is a digital HV potential indicator and phasing stick which can be used to indicate the presence of voltage, make voltage measurements and provide a means of phase comparison at the point of paralleling two circuits, without the interposition of voltage transformers or secondary wiring circuits. It is suitable for use on earthed neutral systems up to 33kV.

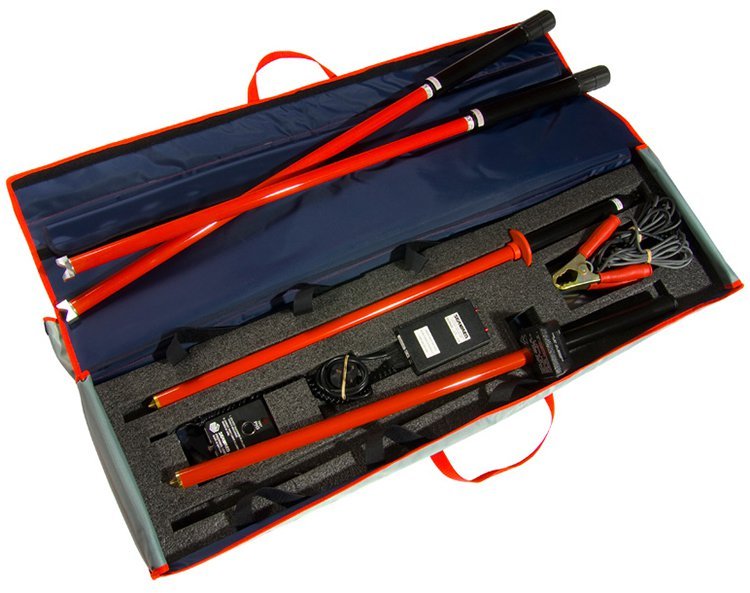

The LCD display is powered by an integral rechargeable battery and is supplied complete with a battery charger and PH3 proving unit in a bespoke carrying case. Conforming to recommended, creepage and safety standards, the PR33D features high-grade PVC tubing and incorporates totally encapsulated resistor chains. The PR33D comes with NIST calibration certificate.
