Seaward DO7E Rugged Digital Micro OhMmeter
49 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:5 days
Rugged Digital Microhmmeter for Low resisitance measurement
- True 4 wire measurement eliminates lead resistance
- Auto ranging
- 10mA measuring current on lowest range (60Ω)
- 0.8” LED Display daylight viewable
- Input protection up to 415 Volts rms
- Forward and reverse current measurement
- Auto average of forward and reverse measurement
- Auto power off
- 2 ranges 60Ω and 600Ω
- Resolution 10mΩ on 60Ω range
- Mains / rechargeable battery operation
- Digital calibration pass code protected
Guarantee Safe and Secure Payment Checkout
Description
Seaward DO7E Rugged Digital Micro OhMmeter
- True 4 wire measurement eliminates lead resistance
- Auto ranging
- 10mA measuring current on lowest range (60Ω)
- 0.8” LED Display daylight viewable
- Input protection up to 415 Volts rms
Rugged Digital Micro Ohmmeter for Low Resistance Measurement

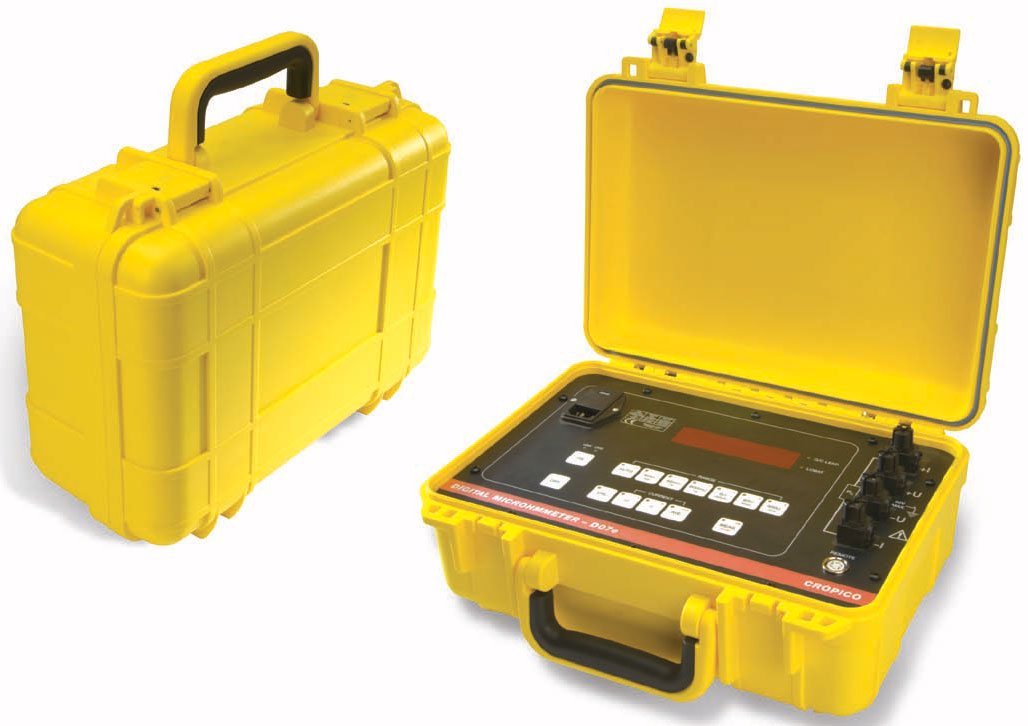

The DO7e is a very rugged yet compact and portable digital micro ohmmeter for the measurement of low resistance.
Using a rechargeable sealed lead acid battery with built-in charger, the DO7e is capable of measuring with a current of 10 Amps on the lowest range.
The DO7e has been designed with the latest solid state and microprocessor techniques to ensure the very best in measurement, reliability and features.
Automatic range selection, forward and reverse current measurements with auto average and a remote start socket are all included as well as an energy saving power down mode.
Micro / Milli / Meg Ohmmeters/Micro-Ohmmeter / DLRO / Bond Testing Template | |
|---|---|
| Style (Micro-Ohmmeter) | Portable |
| Maximum Test Current | 10 A |
| Variable Test Current | Yes |
| Min Resistance | 6 m Ohms Min Resistance 1uO resolution @ 10A on the 6mOhm scale |
| Max Resistance (ohm) | 600 Ohms Max Resistance (ohm) 100mO resolution @ 1mA on the 600Ohm scale |
| Alarm | No |
| Temperature Compensation | No |
| Line Power or Battery power | Battery Power, Line Power |
| Kelvin Four-Terminal Measurement | Yes |
Product General Attributes | |
| Calibration Included | |
| Battery Type | Other Battery Type Sealed Lead Acid Battery |
| Power Supply Voltage | 120V/220V Universal |
| Country of Origin | United Kingdom |
