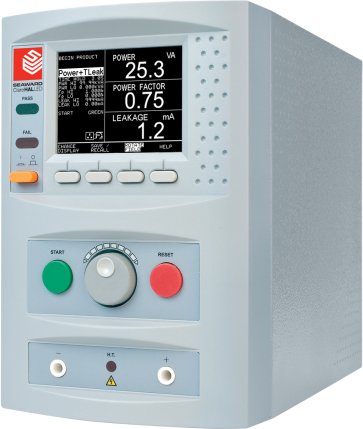

Seaward H LED – LED And Lighting Testers

Seaward H LED – LED And Lighting Testers

The HAL LED has been designed with a reduced power measurement range with greater resolution than the HAL 104, making it ideal for the testing of low power electronics such as LED lighting.

On-board Storage

Large memory for test result storage with the capability to add a product reference for traceability

Test Sequences

Fully configurable automatic test sequences to improve your efficiency reducing user interaction

Full Suite of Tests

The HAL performs many tests including Ground Bond, AC & DC Hipot, Insulation Resistance

Fully Compliant

Tests to IEC/EN 60950, IEC/EN 61010, BS EN 60335-1, BS EN 60598 and BS EN 60745, and many others.

The production line safety test solution for LED lighting manufacturers in accordance

200mVA Resolution Power Measurement

LED lighting is fast becoming the choice for ‘green’ conscious consumers; manufacturers are striving to produce more efficient lighting solutions for a competitive market. With 200mVA resolution, the HAL LED is designed so that manufacturers can measure the output of every product manufactured to ensure it falls within acceptable power limits.

This gives the manufacturer peace of mind that correct components, such as LED drivers, were fitted at time of manufacture. The HAL LED is appropriate for medium-large scale electrical manufacturers: LED lighting manufacturers, LED lighting importers, QA and product auditing departments and manufacturers of low powered equipment


Traceable Results

With quality systems placing more pressure on manufacturers to provide traceable, accurate results the HAL LED eliminates the pressure of manually logging test results.

Date and Time stamps are applied to each product tested along with an optional field a product identifier such as a serial or batch number. A large memory capable of storing 6000 tested products will capture the daily results of even the busiest production line.


Flexible User Configurable Test Sequences

The HAL LED can store up to 50 test sequences in its automatic mode configuration. Each test sequence can comprise of up to 5 individual test (not including repeats).

Once configured, automatic mode provides a structured and repeatable method of testing, ensuring that the required test parameters and timings are adhered to during end-of-productionline test requirements.


Designed with Safe Testing Practices in Mind

In order to aid compliance with safe test area requirements (EN 50191) the HAL LED utilises a number of safety features.

Isolated test outputs when performing Flash (HiPot) and Insulation resistance tests reduce the potential for shock.

The built-in guard switch enables automatic disconnection of test voltages if opened, ideal for ensuring safety if a person accidentally enters the test area during a potentially hazardous test. That coupled with a ‘plug and play’ style beacon port enables clear identification when high voltage testing is being performed.

Powerful production line testing software

Safety e-Base Pro delivers supreme productivity, enabling totally customisable test sequences to be set up and operated via a PC from any safe, convenient location, even away from the production line if required.

It’s intuitive user-interface is taken a step further with the ability to provide user prompts in text or picture format – operators can be guided step-by-step on what to do next, saving time and reducing the risk of human error.

Total traceability and auditability of results is made possible through virtually unlimited storage, with results being stored on a PC or network drive.
