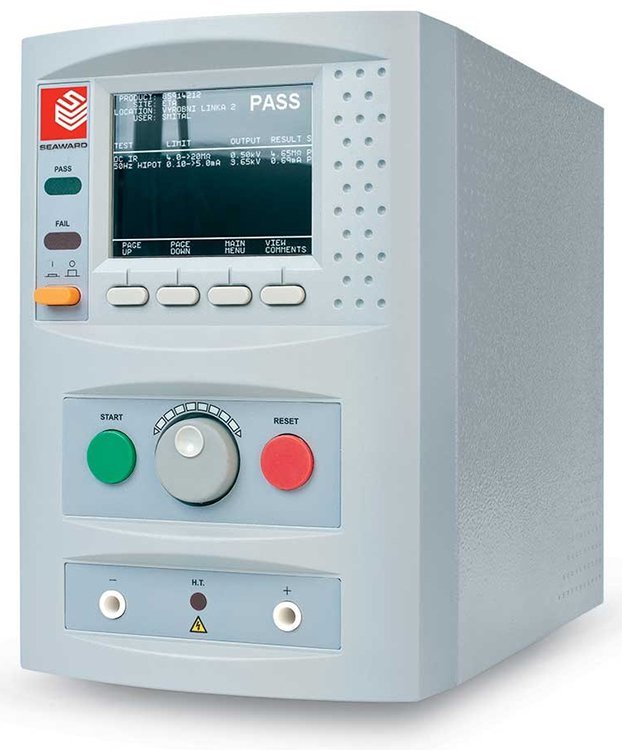

Seaward H104 – ClareHAL 104 Industrial Electrical Safety Testing and Measurement

• Function/Power/Load/Leakage/ Touch current test
• Flash/Hipot/Dielectric Strength test
• Large graphical display
• Tests in accordance with IEC/EN/UL International Standards
• Isolated test outputs on Flash/Hipot/Dielectric Strength/Insulation test to aid with EN 50191 and for safety

Testing – General

The unit can perform either continuous or timed tests, except the Earth/ Ground bond test which is timed. If during the Hipot test, the arc detects level is exceeded the test will be halted and the output removed. A beeper is present to let the user know that a test fails condition has occurred. The Reset button will clear the condition back to a default screen. If the programmed limit is exceeded at any time during a test, the unit will display the appropriate test fail message. If the test fails the unit will light the red fail indicator, and sound the audible alarm. If hazardous voltages (50V AC or DC) are present on the outputs of the unit, this will be indicated by a red warning indicator and a “lightning strike” icon will blink on the display.

Also, the HT present LED indicator will illuminate adjacent to the test output sockets. Auto discharge – at the end of Insulation and Hipot testing test all capacitances and inductances will be automatically discharged. The tester would normally be used with a test fixture or guard system and no tests can be performed without positive confirmation that the guard is in place. If the guard is opened or the Reset button is pressed at any time, the test will be halted and an appropriate test fails the message will be displayed.
