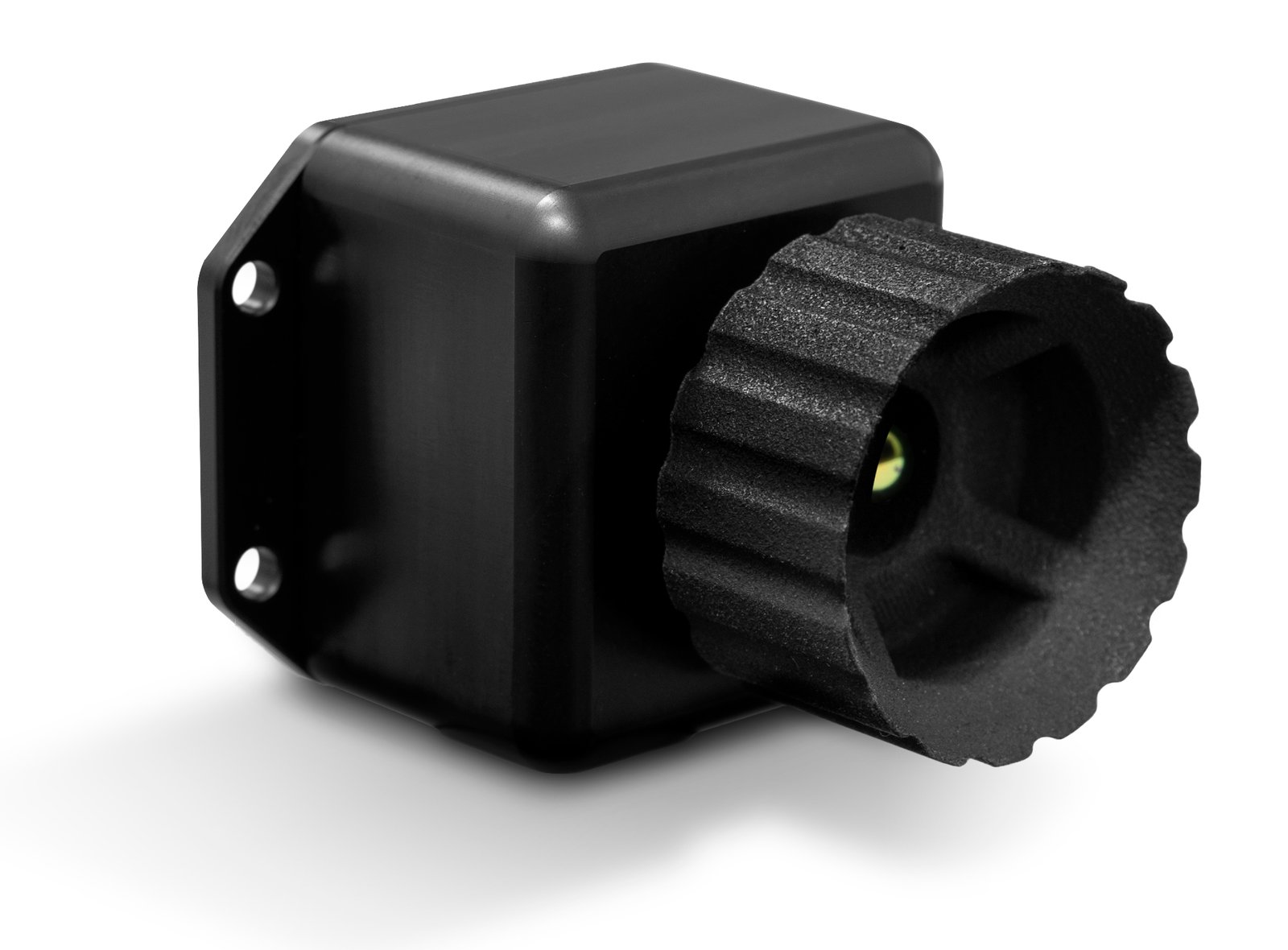

Seek Thermal InspectionCAM – High Resolution Thermal Camera for Electronic Components

• 320 x 240 high resolution thermal sensor

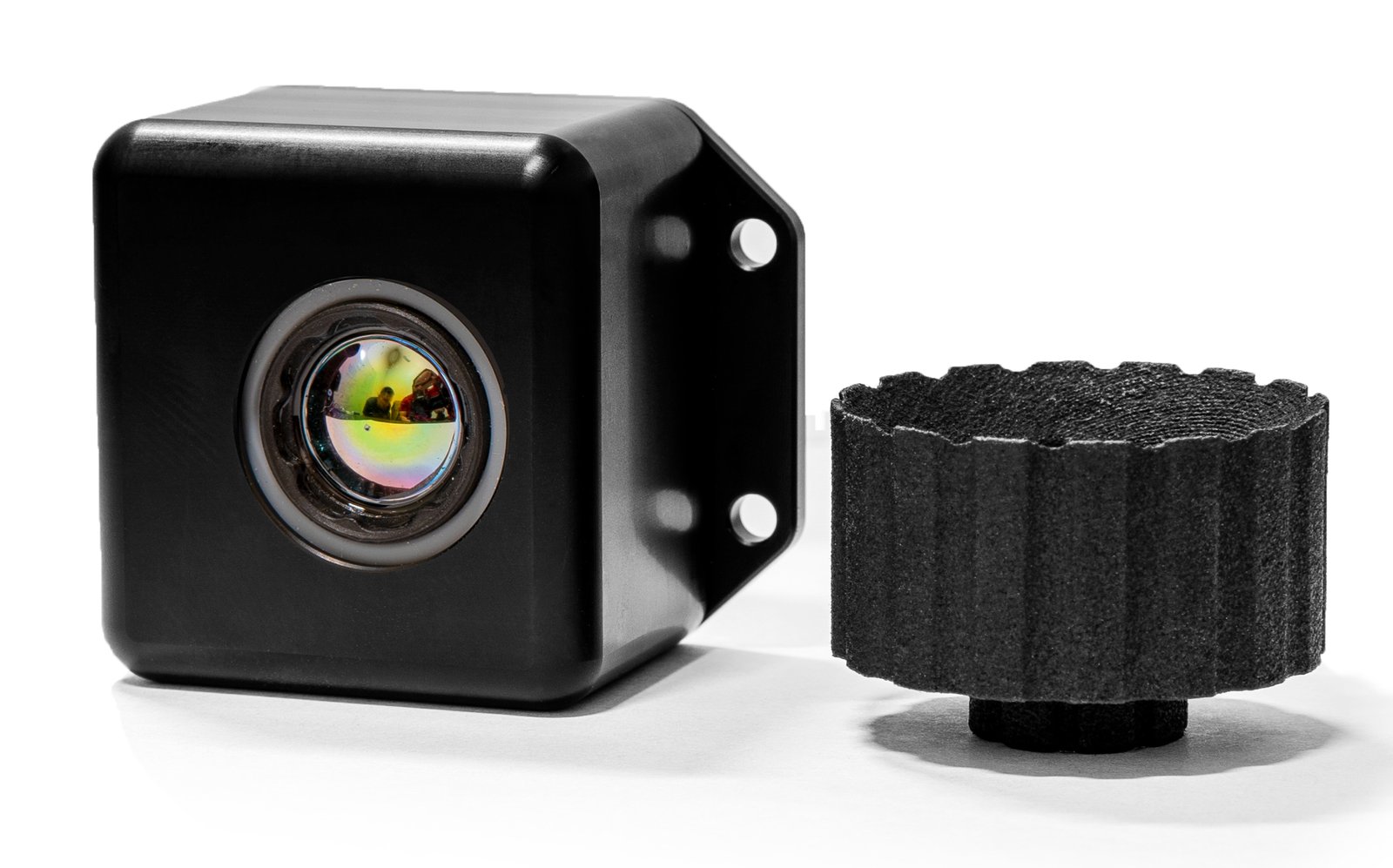

• Adjustable 9.1 mm lens; 4cm minimum focal distance with a spot size of 52μm per pixel
• ±5°C Temperature Accuracy
• Frame rate: < 9Hz
• Imaging range: -40°C – 330°C

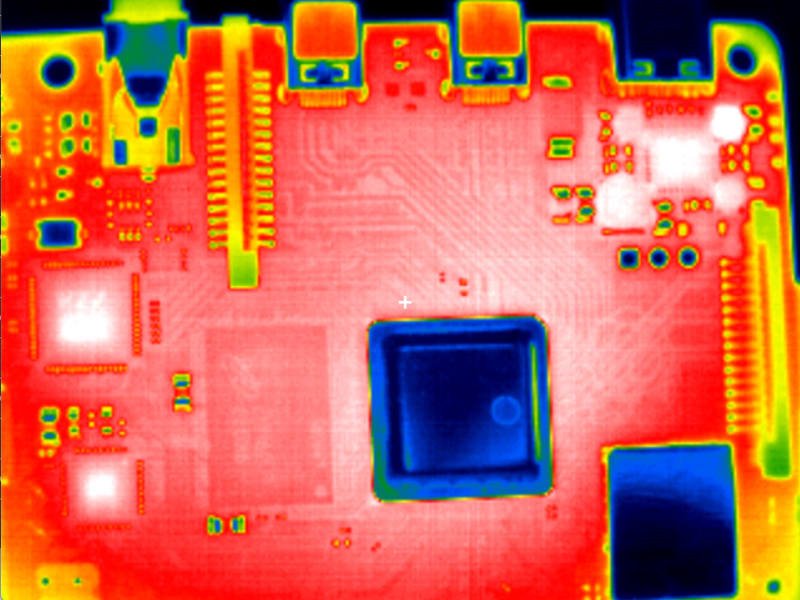

The Seek Thermal InspectionCAM is a low-cost, high-resolution thermal imaging solution that enables fast, detailed analysis of electronic components. The data and heat signature provided by a thermal image can reveal undesired operating states, such as excessive thermal stress, damaged boards and components, and other potential failure points invisible to the naked eye. Seek InspectionCAM eliminates the difficulty and time-consuming task of identifying these failures using other test and measurement equipment.

Seek InspectionCAM is ideal for first article and incoming quality inspection, monitoring tight spaces, and general testing and scientific research.

The Seek Thermal InspectionCAM enables you to use temperature data and thermal images to ensure electronics are working as designed. Evaluate performance in high detail with the large lens and small minimum focus range that the InspectionCAM offers, giving you excellent up-close detail.
