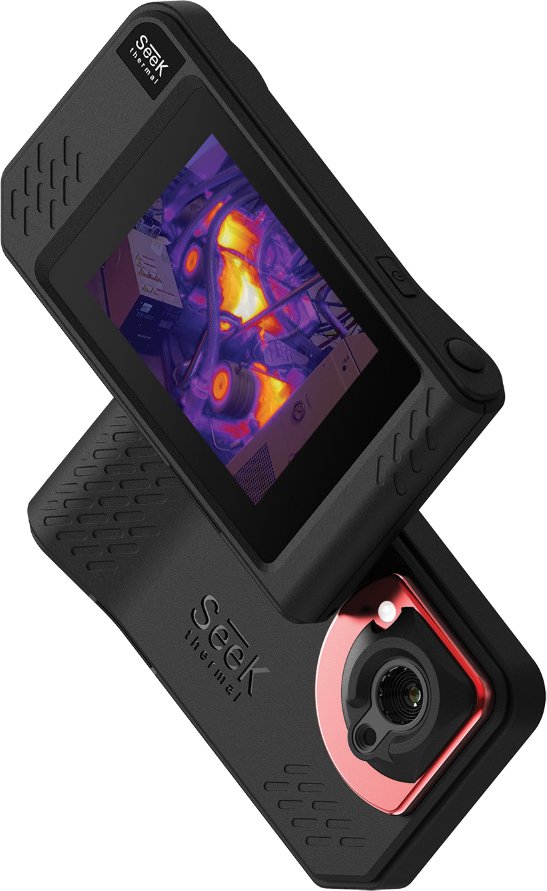

Seek Thermal ShotPRO Infrared Camera
29 people are viewing this product right now
Original price was: $768.90.$614.90Current price is: $614.90.
Shipping calculated at checkout.
Estimated delivery:4 days
Seek Thermal ShotPRO Thermal Imaging Camera, 320 x 240 resolution, 9 Hz
- 320 x 240 Sensor
- 70 mK (NETD)
- Max Temp 626 F
- 57° Field of View
- 9 Hz frame rate
- Post capture analysis tools
- SeekFusion™
- WiFi Streaming via free SeekView app
- Capture photos & video
- Large touch screen display
- 3 customizable spot temperatures
- 3 customizable area boxes with min, max and avg
- Lock and adjust temperature span
- Automatic Hi/Low temperature indicators
- 8 Color palettes
- 4 Emissivity presets
Guarantee Safe and Secure Payment Checkout
Description
Seek Thermal ShotPRO Infrared Camera
- 57° Field of View
- Post capture analysis tools
- SeekFusion™
- WiFi Streaming via free SeekView app
- Capture photos & video
Seek ShotPRO is the most advanced thermal imaging camera for building professionals. Snap photo and video and analyze immediately with new on-board thermography tools. Add spot measurements and temperature boxes to create time-saving reports on the spot. Precisely diagnose problems with 16x higher resolution than comparably priced cameras. Take full control of photos and video by adjusting the blend between visible and thermal images. Share and stream to any smartphone or tablet over WiFi. Mount to a tripod and live stream to colleagues to tackle tougher jobs in the challenging environments. Seek ShotPRO puts durable and sleek thermal imaging expertise in your pocket.
On-Device Analysis
Capture, edit and analyze photos in the field – all from your device..
SeekFusion™
Find problems faster with adjustable blend of visible and thermal images.
More Pixels, More Precision
Sixteen times more resolution than the competition. Best in class thermal resolution.
WiFi Streaming
Stream live video to any mobile device for collaboration and fixed monitoring.
Key Features
320 x 240 Best in Class Thermal Resolution
Identify, diagnose and report problems faster with high resolution thermal images and video
SeekFusion™ Technology
See exactly what you’re looking at with combined visible and thermal images
Large Color Touch Screen
3.5” color touchscreen with 640×480 resolution so you can see more detail
WIFI Live View
Stream a live thermal view onto your smartphone or tablet over WiFi
Long-Lasting Battery Life
Best-in-class battery life of up to 4 hours continuous thermal imaging
Durable, Pocket-Sized Housing
Built with a rugged, IP54 rating
Benefits and Uses
Easy-to-Use Interface
Diagnose problems on-the-spot and analyzes images on your device

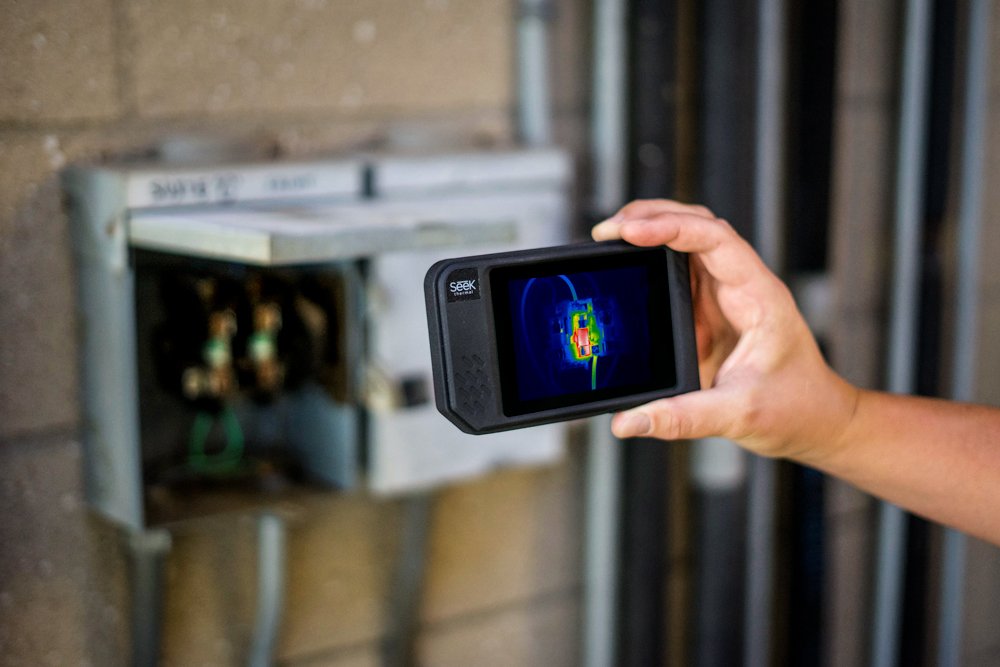

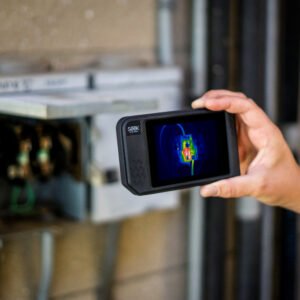

Inspect Electrical Panels, Connections, and Fuses
Find electrical faults faster and with more confidence
Check Ventilation Systems for Proper Installation
Ensure grilles, registers, and diffusers are sealed for maximum efficiency
Spot Duct Leaks Invisible to the Human Eye
Easily scan a large ducting network to reveal the air leaks
Identify Inefficient Air Handlers
Diagnose faulty equipment and improve energy efficiency
Find Missing Insulation
Easily find missing or poor-performing insulation in seconds
Overview
Seek Fusion™
VISIBLE IMAGE
SEEKFUSION™ IMAGE
THERMAL IMAGE
Thermal Imagers/Building and Industrial Thermal Imagers Template | |
|---|---|
| Detector Size | 320 x 240 Sensor |
| Thermal Sensitivity | 70 mK (NETD) |
| Temperature Range Max | 626 F |
| Temperature Range Min | -40 F |
| Image Frequency | 9 Hz |
| Field of View | 55 x 43 Degrees |
| Screen Size | 3.5 IN |
| IR/Overlay Fusion Image | Yes |
| Video Output | No |
| Focus | Fixed |
| Laser Spot | No |
| Picture in Picture | No |
| Video Recording | Yes |
| Moveable Spots | Yes |
| Touch Screen Display | Yes |
| Minimum Focus Distance | 12 CM (0.12 M) |
| Battery operating time Continuous | 4 HR |
| Camera Light | Yes |
| IR Digital Zoom | Yes |
| Voice Annotation | No |
Product General Attributes | |
| Unique Features | Adjustable Thermal Span, Level, and Emissivity settings Built in Flashlight Best cost to performance ration in class |
| Interfaces I/O | Wifi, USB |
| Storage | Internal Memory |
| IP Rating | IP54 |
| Product Weight | 6.25 OUNCES (0.391 LBS) |
| Product Height | 5 IN |
| Product Length | 1.2 IN |
| Product Width | 2.4 IN |
| HTS/Schedule B Number | 9027.50.4020 |
| ECCN Number | 6A993 |
| Calibration Included | None |
| Battery Type | Li-ion |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
You must be logged in to post a review.
Manuals/Guides
ManualsSpec SheetsApplication Notes
| Weight | 6.25 lbs |
|---|---|
| Dimensions | 1.2 × 2.4 × 5 in |
