Seiffert Industrial RollCheck Green SX-5150 Laser Roll Alignment System

Seiffert Industrial RollCheck Green SX-5150 Laser Roll Alignment System

• Green is 10x brighter than red
• Reduces down time and product waste due to misalignment of rolls
• 24 months parts and labor
• Increases production with proper alignment of rolls

Laser Alignment Tool for Accurate Visual Alignment of Rolls

The RollCheck® Green projects laser lines from a reference roll onto a reflector unit, and back to the reference roll.

This allows you to see whether your rolls are parallel and because of the simplicity of this product, you will no longer have to go through trial and error tests in order to determine if your rolls have correct alignment.

Requiring little to no training, this system is easy to use and has a compact design, allowing you to store it in any space. The RollCheck® Green is useful for shots up to 10 feet long, and it can assist in increasing your production.

The RollCheck® Green laser alignment system for parallel roll alignment is lightweight, compact and durable. The system can be attached to just about any size roll with the supplied straps. We use our proven reflected laser beam technology for maximum angular resolution, thus providing you with the most reliable and accurate visual reading. Using the latest in Green laser diode technology makes our green laser line 10x’s brighter to the operator than a red laser line.

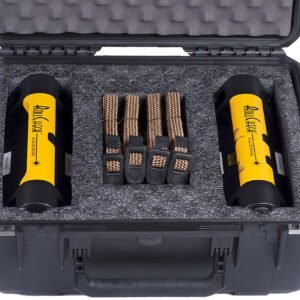

The RollCheck® can measure spans up to 10 ft. (3 m) or better from roll to roll of any size, large or small. A laser line is projected from the RollCheck® transmitter to the reflector mounted on the roll to be checked or aligned. The laser line projected to the reference line on the reflector indicates immediately if the roll is aligned vertically to the stationary roll. The laser line is then automatically reflected back to the transmitter’s reference line indicating if the rolls are parallel to one another. This system is very easy to use; a single person can perform the alignment task in minutes with no training! The RollCheck® comes in its own durable carrying case.

Patented Reflected Laser Beam Technology

Parallel Roll Alignment, utilizing the RollCheck® Laser Roll Alignment System to measure and correct vertical and horizontal angle between 2 rolls.

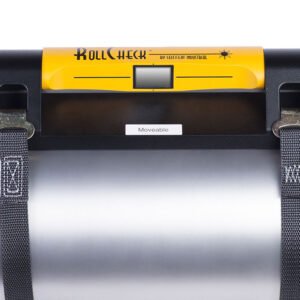

RollCheck® is a laser roll alignment system that facilitates accurate visual alignment of process rolls during replacement operations. The Laser Transmitter is mounted to a stationary roll that transmits two green laser lines to the Reflector positioned on the roll to be moved. The operator then is able to view both the vertical (pitch) and horizontal (parallel) angles and accurately adjust the roll into parallel alignment. RollCheck® is suitable for aligning rolls of most diameters that are spaced from 6” (152 mm) to 10 ft. (3 m) or more apart. It also can be used to align and measure crowned rolls as well.

RollCheck® eliminates cumbersome trial and error adjustments which lead to scrap, loss of time and output reduction and is the ideal tool for efficient roll maintenance.
