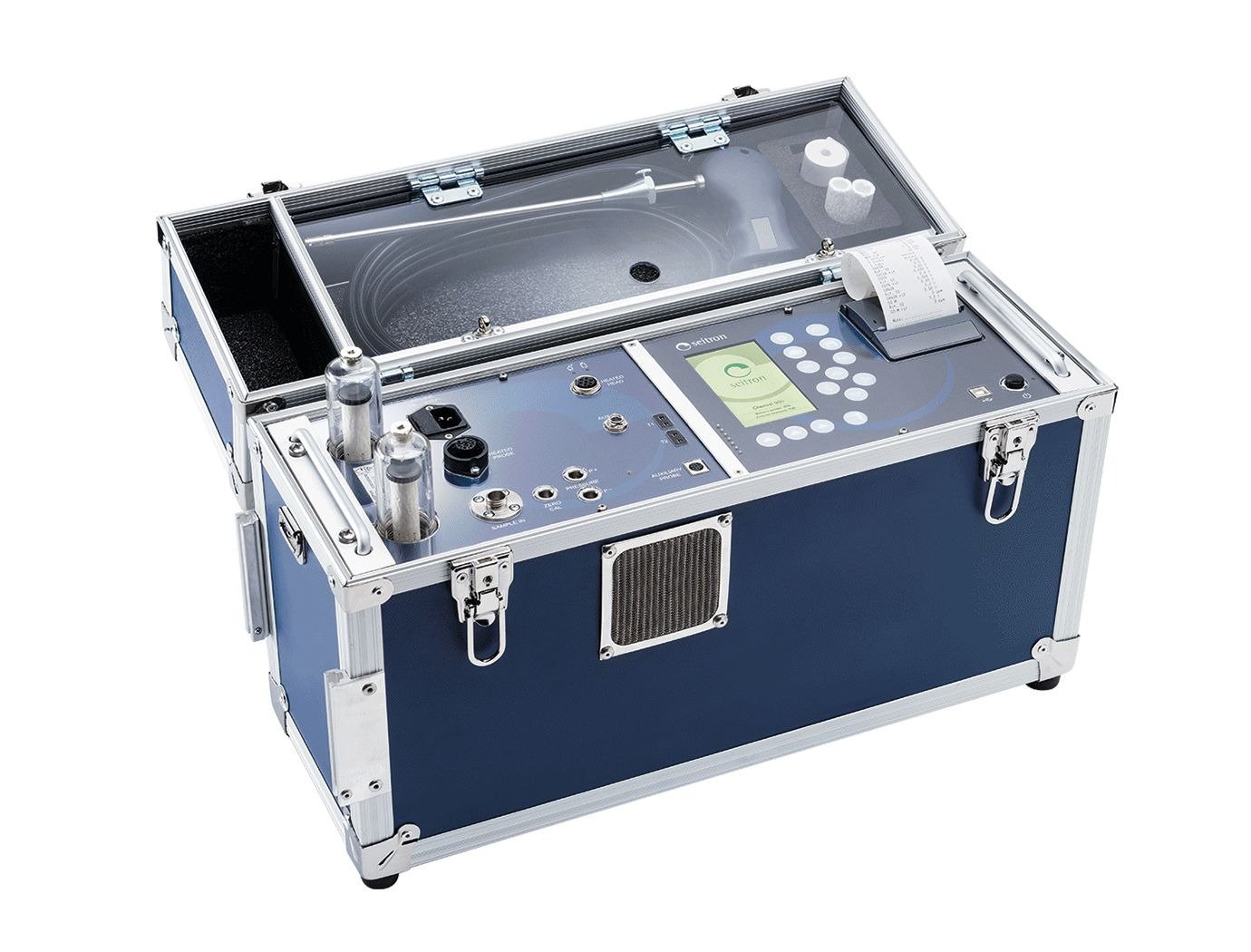

Seitron S9000 – Industrial Emissions Analyzer (O2 sensor included)

• Choose up to 8 single gas sensors (O2 is included), NDIR Bench option, and Probe option (see description section for full details)

• Step 1: Choose up to 8 single gas sensors from the following: Standard CO, Low-range CO, Mid-range CO, High-range CO, Standard NO/NOx, Standard NO2, Low NO2, Standard SO2, Low SO2, Standard H2S, Low H2S, H2, Standard CxHy, Standard Ammonia (NH3)
• Step 2: Choose NDIR Bench Option: CO2 NDIR Sensor (0-50%), CxHy NDIR Sensor (0100,000ppm), and High CO NDIR Sensor (0-50%) or NO NDIR Bench
• Step 3: Choose Probe Option: 12” (300mm) Probe, 1112F (600C) max, with 10’ (3m), 30″ (750mm) Probe, 1470F (800C) max, with 10’ (3m) Dual Hose (AASF35), 40″ (1000mm) Probe, 1470F (800C) max, with 10’ (3m) Dual Hose (AASF36), 12″ (300mm) Probe, 1112F (600C) max, with 10’ (3m) HEATED Hose and HEATED Probe Head (AASR03), or 40″ (1m) Probe, 2190F (1200C) max, with 10’ (3m) HEATED Hose and HEATED Probe Head (AASR04)
• Ability to simultaneously measure up to 12 different gases, with up to 9 single gas measuring sensors and one infrared bench (NDIR) for High CO, Direct CO2 & Hydrocarbons (HC)

When ordering please select a configuration.

The standard configuration of the S9000 Transportable Emissions Analyzer is: O2 sensor, No IR Bench, with 12-inch probe with 10-ft cord

• Example configuration: S9000-OCNL-IR-12H = O2, Standard CO, Low Range NO, IR Bench (CO2, CxHy & High CO), with 12” Heated Line & Probe

Step 1 – Select Gas Sensor Options (choose up to 8 sensors)

O – O2 Sensor (0 .. 25.0% vol) Included

C – Standard CO Sensor w/ H2 Compensation (0-8000 ppm)

CL -LOW-Range CO Sensor (0-500 ppm)

CM – MID-Range CO Sensor (0-20,000 ppm)

CH – HIGH-Range CO Sensor (0-100,000 ppm)

NS – tandard NO/NOx Sensor (0-5000 ppm)

NL – LOW NO/NOx Sensor (0-500 ppm)

D – Standard NO2 Sensor (0-1000 ppm)

DL – LOW NO2 Sensor (0-500 ppm)

S – Standard SO2 Sensor (0-5000 ppm)

SL – LOW SO2 Sensor (0-500 ppm)

H – Standard H2S Sensor (0-5000 ppm)

HL – LOW H2S Sensor (0-500 ppm)

G – H2 Sensor (0-2000 ppm)

C – Standard CxHy Sensor (0-5 %)

A – Standard Ammonia (NH3) Sensor (0-500 ppm)

C2 – ADD NDIR Sensor (CO2 Only) Sensor (0-50 % vol)

Step 2 – Select NDIR Bench Option

IR – CO2 NDIR Sensor (0-50%), CxHy NDIR Sensor (0100,000ppm), and High CO NDIR Sensor (0-50%)

O – No IR Bench

Step 3 – Select Probe Option

12 – 12” (300mm) Probe, 1112F (600C) max, with 10’ (3m) (Included With Standard Kit if no other probe option is selected)

30 – 30″ (750mm) Probe, 1470F (800C) max, with 10’ (3m) Dual Hose (AASF35)

40 – 40″ (1000mm) Probe, 1470F (800C) max, with 10’ (3m) Dual Hose (AASF36

12H – 12″ (300mm) Probe, 1112F (600C) max, with 10’ (3m) HEATED Hose and HEATED Probe Head (AASR03)

40H – 40″ (1m) Probe, 2190F (1200C) max, with 10’ (3m) HEATED Hose and HEATED Probe Head (AASR04)

The S9000 is a high-end industrial emissions analyzer, mainly used for industrial burners, cogeneration, gas turbines, industrial ovens and processes, laboratories and generally everywhere the need is to measure and register for long periods the gas emissions, in compliance with existing EPA protocols and Regulations. It can be configured with Built-in Chiller and Probe with a heated head.

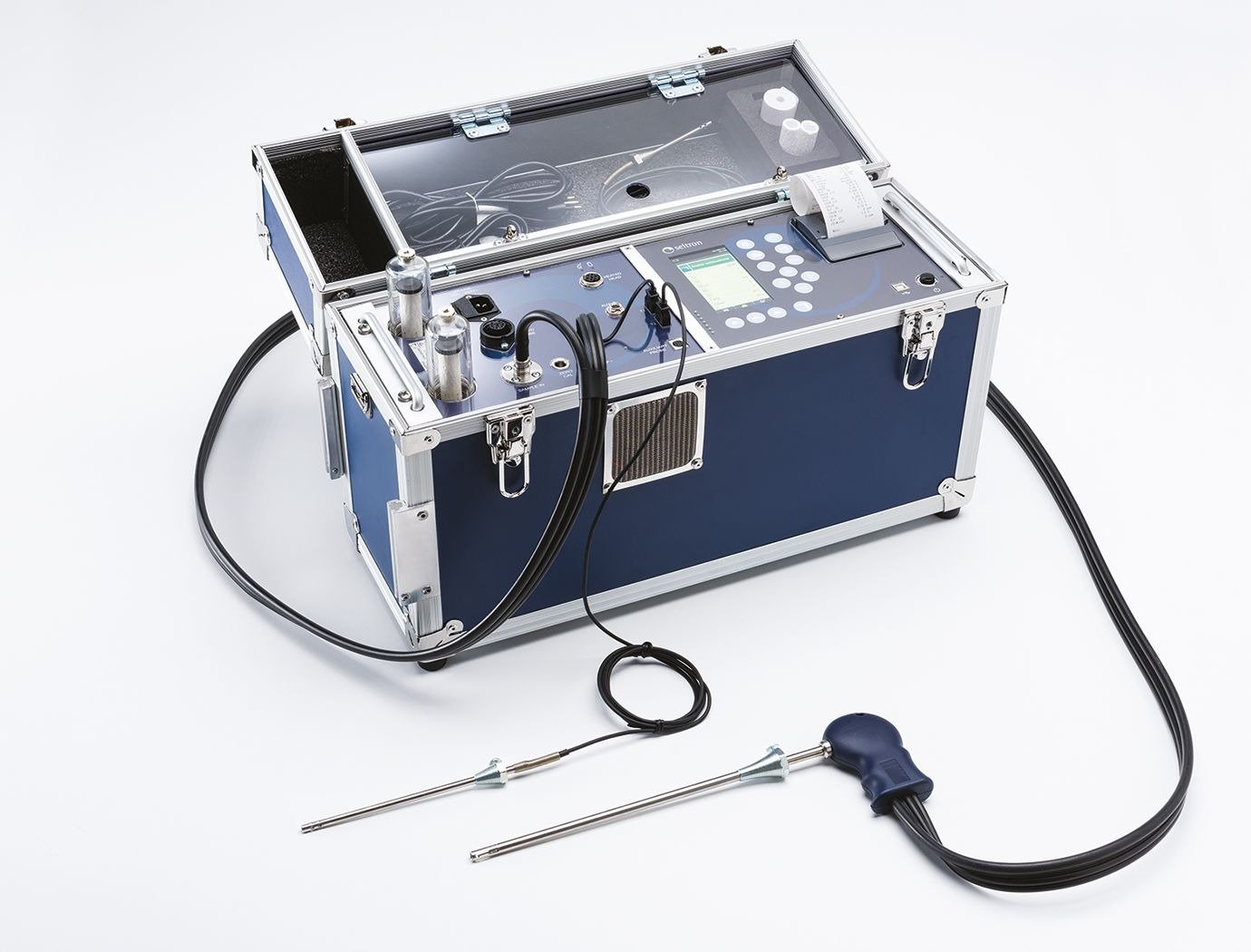

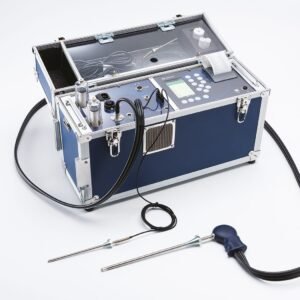

Passive Type: utility probes with different tip lengths and fittings, made of different materials, with a flexible tube connected to the central unit in various lengths.

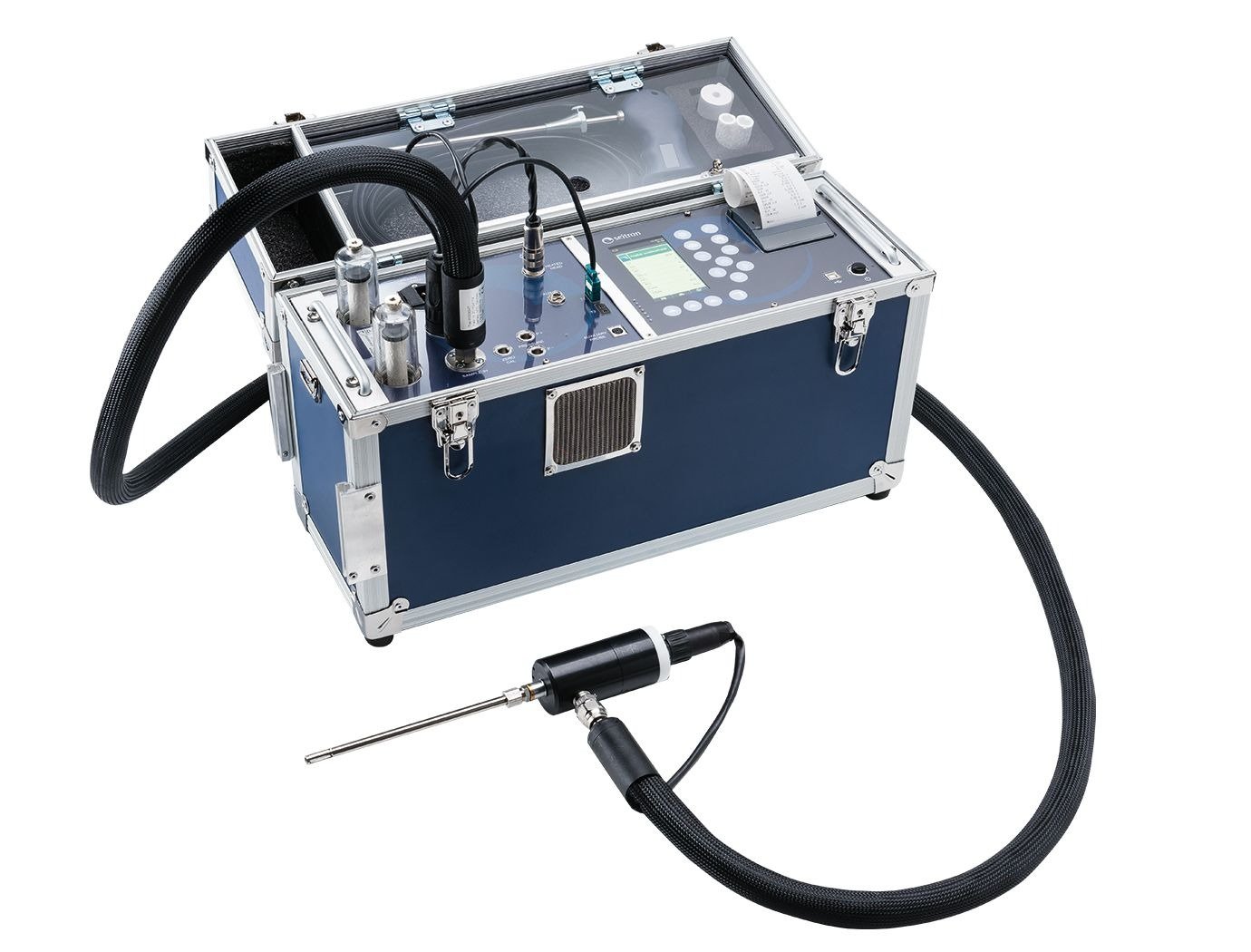

Active Type: utilizes gas sampling probe with heated head and flexible heated tube. This characteristic prevents water vapor and condensation to reach the central unit, which can affect the measurements of gases that are easily soluble in water, such as NO2 and SO2. The active sensor maintains the gas sample at a higher temperature than the dew point and keeps it stable as far as the cooling system: this is a fast, cyclone type with a Peltier cell. The water vapor condenses so quickly that the NO2 and SO2 gases do not have time to dissolve in water, resulting in the most accurate measurements possible especially Low NOx, Low SO2.

The gas sample is taken in through the gas probe, by a diaphragm suction pump inside the instrument. The measuring probe has a sliding cone that allows the probe to be inserted in holes with a diameter of 11 mm to 16 mm and to adjust the immersion depth: it is recommended to have a gas sampling point roughly in the center of the flue/stack. The gas sample is cleaned of humidity and impurities by a condensate trap and filter located inside the instrument. The gas is then analyzed in its components by electrochemical and infrared sensors. The electrochemical cell guarantees high precision results in a time interval of up to about 60 minutes during which the instrument can be considered very stable. When the measurement is going to take a long time, we suggest auto-zeroing the instrument again and flushing the inside of the pneumatic circuit for three minutes with clean air. During the zero calibrating phase, the instrument aspirates clean air from the environment and detects the cells’ drifts from zero (20.95% for the O2 cell), then compares them with the programmed values and compensates them. The pressure sensor autozero must, in all cases, be done manually prior to measuring pressure. The values measured and calculated by the microprocessor are viewed on the LCD display which is backlit to ensure easy reading even when lighting is poor.

The S900 Standard comes with:

• O2 Sensor (0-25%)
• Ability to Upgrade to 12 Total Gas Sensors
• CO Dilution Auto-Range up to 10%
• Stack Gas & Ambient Air Temperature Measurements
• Draft & Differential Pressure Measurements
• Efficiency, Loss, Excess Air, & CO2 Calculations
• 12″ (300mm) Probe, 1470˚F (800˚C) max, with 10′ (3m) Dual Hose
• Built-In Thermoelectric Chiller with Automatic Condensate Removal
• Rechargeable Battery Pack with AC Charger
• Large Full-Color Graphic Display Screen
• Built-In Printer (Non-Fading Paper)
• Internal Memory for Data Storage (16,000 Tests)
• PC Software Package with Bluetooth Adapter & USB Cable
• Wireless Bluetooth Communications

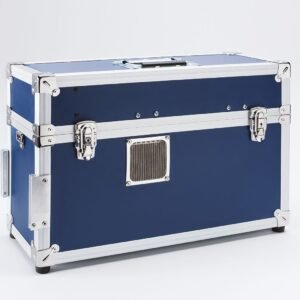

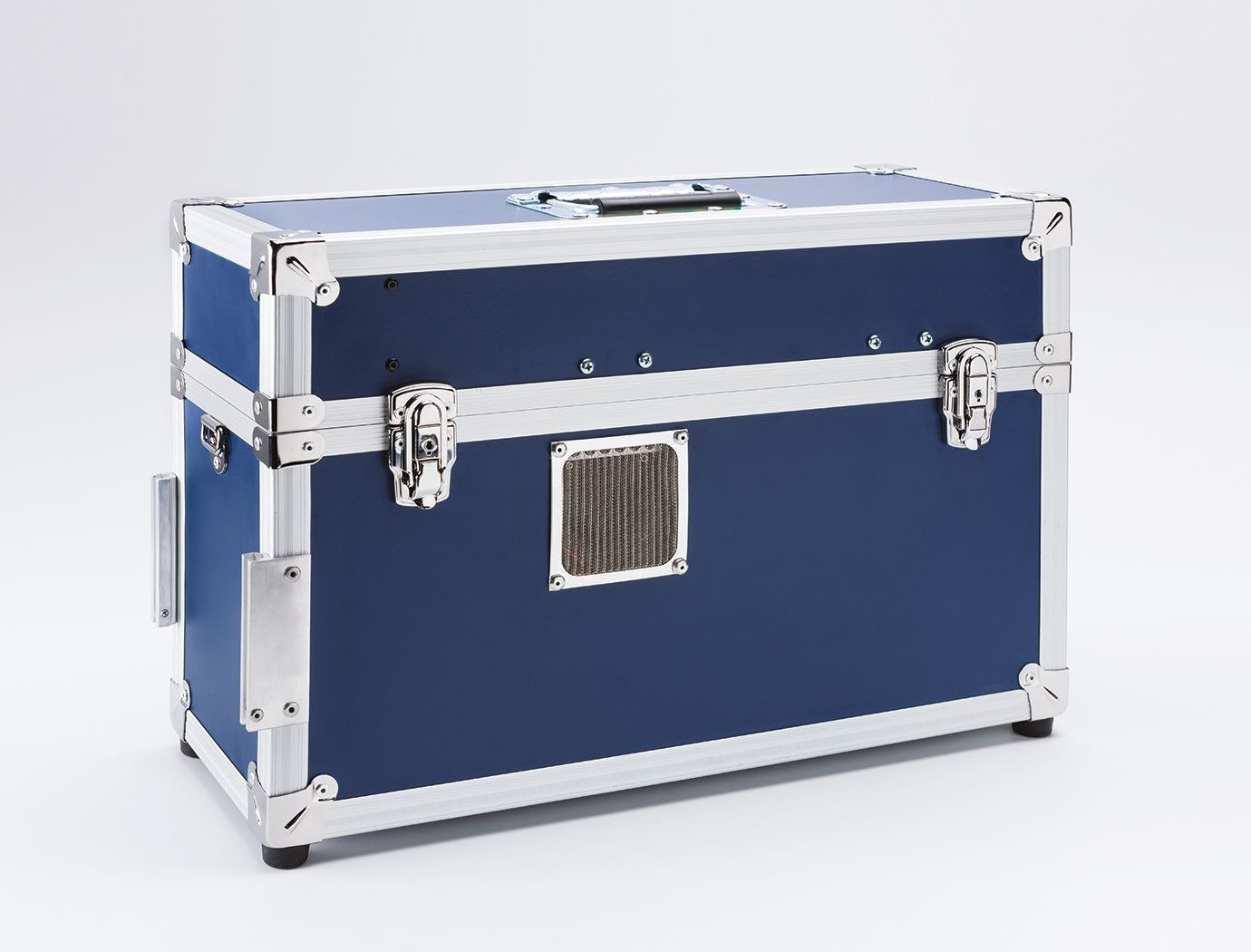

• Transportable Heavy Duty Aluminum Carrying Case
• Instruction Manual
• Calibration Certificate
