Sensepeek PC BITE KIT SQ500 – PCBite Kit with Two 500 MHz Oscilloscope Probes

• 500 MHz Probes (x2)
• Passive 10:1 probe with support for oscilloscopes with automatic scaling
• PCBite holds the circuit board during soldering/inspection/testing
• Spring-loaded test needle for fine-pitch measurements
• Multiple ground options

The new SQ series of handsfree probes from Sensepeek have a lower point of gravity making them even more stable compared with the original SP series of handsfree probes. All probes in the SQ series are also insulated and can be used handheld as any traditional probe but their full potential is used when measuring handsfree.

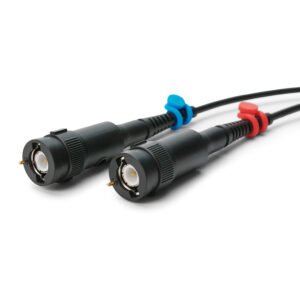

The SQ series of oscilloscope probes also includes more ground options, have probe tip protection, longer cable, and support for oscilloscopes with automatic scaling (10:1). All the loved features of handsfree measurement, exchangeable fine pitch spring tipped test needle, color-coded cable holders and the minimalistic design is maintained to make traditional sized and handheld probes obsolete.

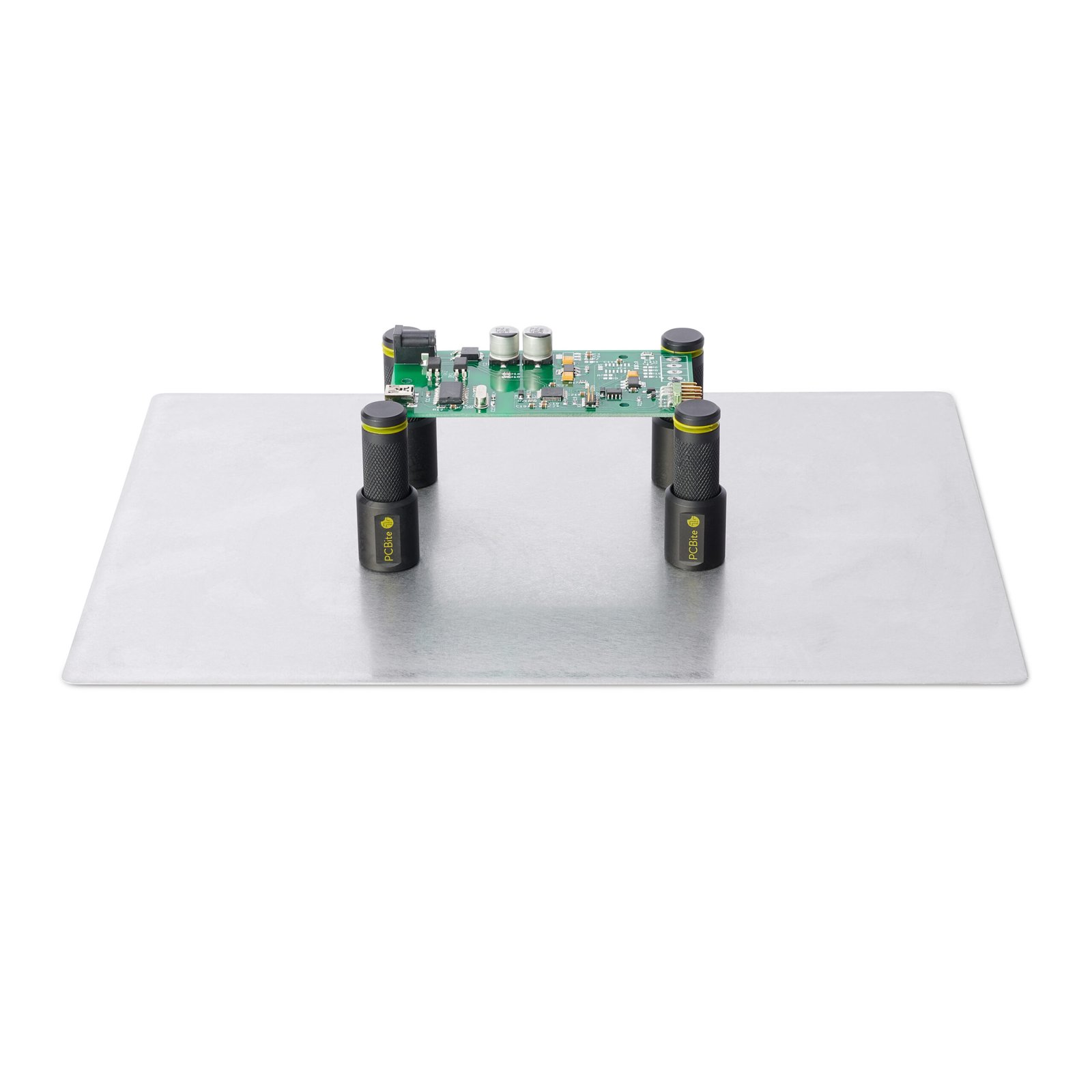

Both the length and weight of the SQ probes are perfectly balanced to be used with the included PCB holders and base plate which is a must for hands-free function. The probe holder comes with a powerful magnet in the base, as for all PCBite probes and holders which makes the probe easy to place and reposition.

One side of the included baseplate is matte and the other is mirror polished. The mirror-polished surface makes it easy to see components on the circuit board underside. For added protection during measurement, the included insulation cover can be mounted on one of the surfaces
