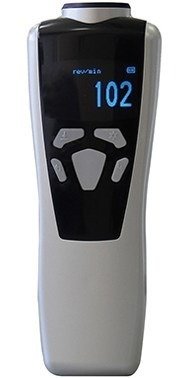

Shimpo DT-2100 – Data-Logging, Contact, Non-Contact Laser Tachometer with USB Output, 6” cir. wheel

• Data Logging with Continous, Single Unit or Statistics modes
• View data and statistics on tachometer display or with optional Windows software
• Built-in Memory with USB Data Output
• Powerful laser for non-contact measurement 2” to 13.1’ (5 to 400 cm)
• Non-Contact length measuring mode (requires reflective tape or edge of roller)

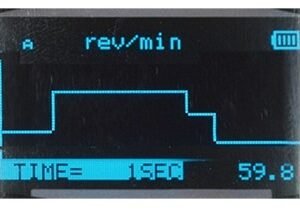

The Series DT-2100 Data-Logging Tachometer is the most highly advanced tachometer ever developed by NIDEC-SHIMPO. Providing an unequaled level of user flexibility, the DT-2100 is the premium tachometer for engineers and maintenance professionals. Aiding the diagnosis of the most difficult machinery measurements with its on-board data-logging, graphing and statistical analysis, the user can examine the results of their testing on-site and determine if additional data is required. Data can be downloaded to the optional software to further analyze and diagnose system performance. If simplicity is required, the DT-2100 can accommodate with its selectable display styles allowing results to be viewed in standard numerical, chart, bar graph or gauge modes. Max., Min., and Ave. can be quickly scrolled through in any display mode for additional test feedback. Data recording can be set for single point or continuous logging. Often the user may need to adjust the machinery during testing. Simply mount the DT-2100 on its tripod connection, select continuous logging and adjust machinery as necessary. After the test, you can easily review the results on the unit or download to the computer. Two people are no longer required to perform a test that one can now conveniently complete. The DT-2100 even allows multiple users to store their programmed settings. There is no need to spend time checking all settings to ensure proper performance.

The DT-2100 Tachometer is 2 units in 1 with the included 6” circumference contact adapter utilized in linear rate measurement. Most impressive, the DT-2100 provides convenient switching between non-contact and contact operation with its auto-detect function that instantly recognizes if a contact adapter is installed. If the larger 12” circumference wheel is desired for detecting finer resolution at higher speeds, simply select in the menu the appropriate wheel, and the DT-2100 will properly calculate the sensed speeds.

The DT-2100 possesses many cutting-edge features. One feature that is unique to this instrument is the ability to calculate lengths remotely in non-contact laser operation. This feature adds a level of convenience and capability as often it is dangerous or not possible to take a reading by physical contact. Another very beneficial feature that will alleviate user-adjusted calculations after the test is the DT-2100’s scaling function. This will benefit those that need a manual override of the data for any of a number of application-specific requirements. Whether the scaling makes the values more logical to the user or if there is an impossibility to measure at a desired specific point, but another point of a different scale provides measurement access, this feature produces the desired calculated reading. Another common example where the scaling function is very applicable is when measuring product length where for every set amount of distance there is a non-product gap that should be eliminated from the total. The scaling feature factors this gap out to provide the accurate total length at the end of the test. The user can factor this gap out and come up with an accurate length at the end.

PC software for the DT-2100 is available separately. The software provides the user the ability to program the tachometer to their requirements, as well as enables a more refined analysis of the data
