Shimpo DT-311D-EU-KIT – Xenon Stroboscope, Universal Power, EU Power Plug
11 people are viewing this product right now
Original price was: $770.00.$693.00Current price is: $693.00.
Shipping calculated at checkout.
Estimated delivery:4 days
Xenon Stroboscope, Universal Power, EU Power Plug
- Heavy Duty Xenon Stroboscope Kit with EU Plug – 85-240 VAC Charger, Spare Flashtube, Carrying Case
- Flash range: 60-12,000 RPM/FPM
- Heavy-duty construction enclosure provides exceptional durability
- Highly focused reflector eliminates “blind” viewing areas
- External trigger input allows unit to be automatically synchronized with equipment
- Universal power capability (85-240 VAC) allows it to handle a multitude of local power requirements
- Easy tri-pod or permanent mounting with integral mounting thread
Guarantee Safe and Secure Payment Checkout
Description
Shimpo DT-311D-EU-KIT
- Heavy Duty Xenon Stroboscope Kit with EU Plug – 85-240 VAC Charger, Spare Flashtube, Carrying Case
- Heavy-duty construction enclosure provides exceptional durability
- Highly focused reflector eliminates “blind” viewing areas
- External trigger input allows unit to be automatically synchronized with equipment
- Universal power capability (85-240 VAC) allows it to handle a multitude of local power requirements
Heavy Duty Xenon Stroboscope Kit EU Plug – Charger, Spare Flashtube, Case

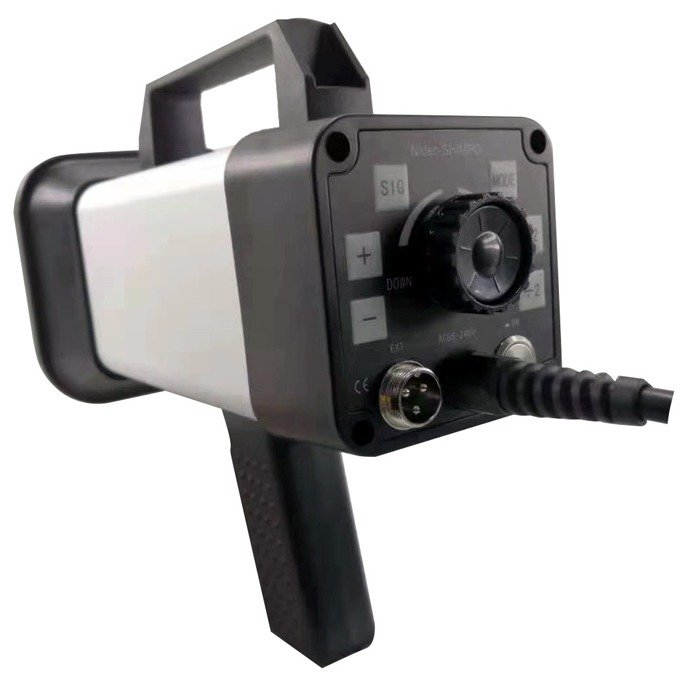

The DT-311D is a portable, highly stable, industrial-quality stroboscope for non-contact inspection and observation of moving parts by providing the user the illusion of stopped or slowed down equipment movement. Constructed with a rugged metal enclosure, the DT-311Ds withstand harsh, industrial usage. The included top & bottom handles aid in portability and usage flexibility. Built-in speed adjustment settings allow the flash rate to be easily altered by the user to visually inspect rotating or reciprocating machinery such as gear teeth, rotors, shafts, rewinders, printing presses, etc. all without stopping production. External trigger mode with connected remote sensor input enables the flash rate to be synchronized to the speed of the process. These features make the DT-311D universally-powered stroboscope ideal for quality inspection and preventive maintenance of automated motion equipment.
The universal power range (85-240 VAC) allows one model to be utilized on various power voltages in a multitude of countries.

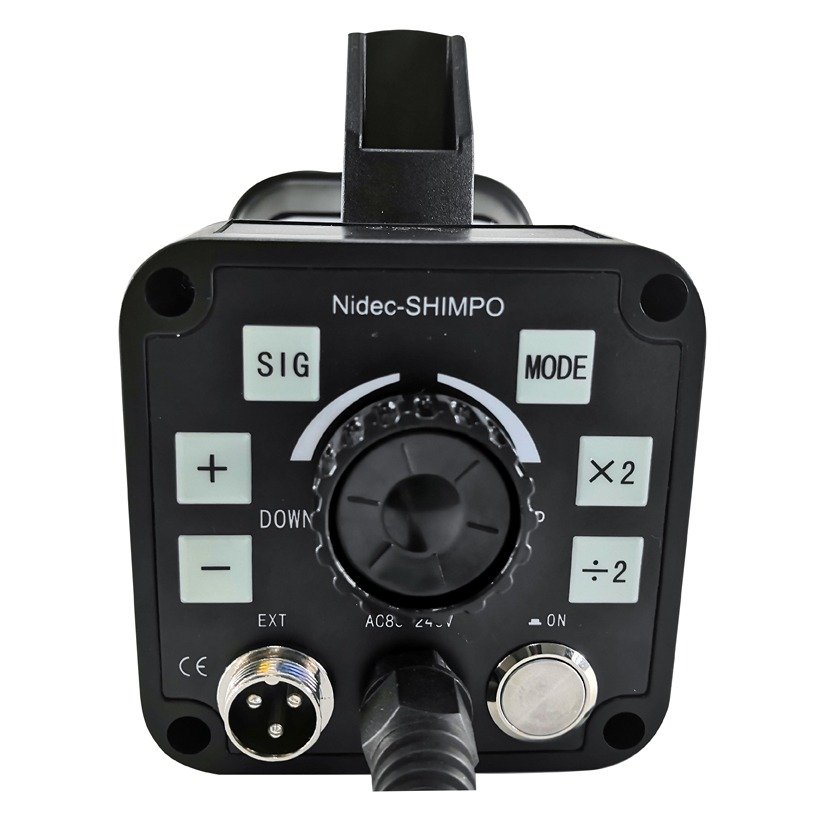

Easy Operation Control
Specifications
Please click here for technical specifications.
Reliability / Preventative Maint / Rotational/Stroboscopes Template | |
|---|---|
| Style (Stroboscope) | Hand Held |
| Digital Display | 5 Digits |
| Flash Rate Maximum | 12000 RPM |
| Flash Rate Accuracy | 0.01 RPM |
| Flash Rate Duration | 30 MILISECONDS (0.03 s) |
| External Trigger | Yes |
Product General Attributes | |
| Warranty | 1 YEARS |
| Safety Approval | CE, RoHS |
| Product Weight | 2.2 LBS |
| Product Height | 4.7 IN |
| Product Length | 8.3 IN |
| Product Width | 4.7 IN |
| Shipping Weight | 2.6 LBS |
You must be logged in to post a review.
| Weight | 2.2 lbs |
|---|---|
| Dimensions | 8.3 × 4.7 × 4.7 in |
