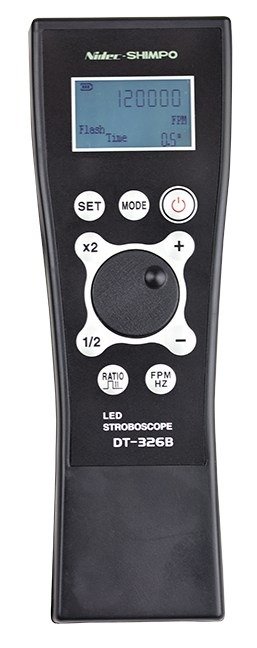

Shimpo DT-326B – Portable LED Stroboscope with AC or Battery Power

• Wide Flash Range 60 – 120,000 Flashes/min. (1-2000 Hz) can be adjusted to meet almost any high-speed application
• Adjustable Flash Pulse duration achieves sharper images for detailed inspection
• 100 – 240 VAC Line Power Operation with AC adapter for continuous use or rechargeable battery for maximum portability

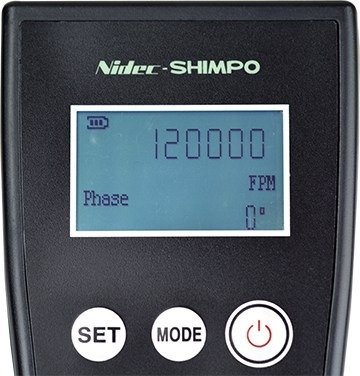

• Phase Shift Advances or retards flash timing for viewing gear teeth, cutting surfaces, repeats or “drifting” images
• Input sensor trigger function allows process machinery to control flash rate

The DT-326B’s LED array provides a bright, stable strobe light over a wide measurement range with a lifetime far exceeding xenon lit stroboscopes. Containing a rechargeable lithium battery, a single charge can last up to a full 12 hours of operation. The DT-326B is designed for speed and frequency measurements in motion and vibration analysis applications. It is ideal for predictive and preventive maintenance applications such as: motors, shafts, roto-gravure printing, extruders, blow molding, wire lettering and striping, engraving, pulse jets, water jets, fans, cams, gear teeth, belt inspections, fuel injectors, vibration analysis, audio speaker analysis, spindle spinning, cutting blade timing and sharpness, plus many more in the printing, packaging, textile, automotive, cable, mining, steel, chemical, optical, medical and shipbuilding industries.
