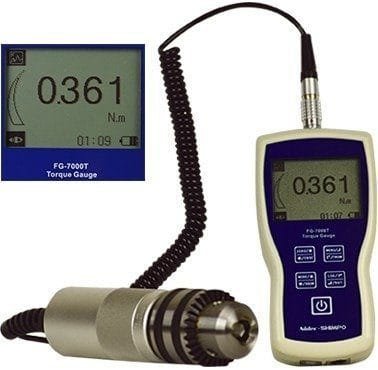

Shimpo FG-7000T-3 – Digital Torque Gauge, 10 N-m Capacity, 0.01 N-m Resolution

• Display operates in numerical or graph modes, both include a directional bar graph
• Graph mode combined with set point tolerances provides instant recognition of process relation to upper and lower limits
• Four Modes of Operation: Peak, First Peak Preset or Track Mode
• Memory with group categorization to easily separate your tests for review and later download
• Free software for viewing, graphing and analyzing data on PC

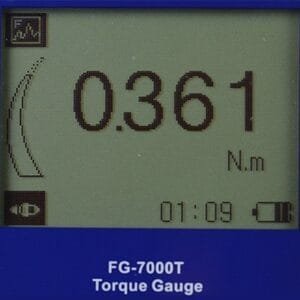

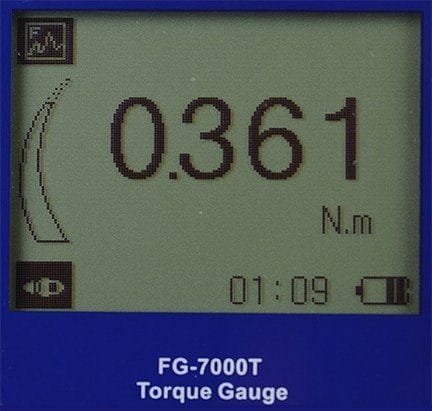

The FG-7000T Series digital torque gauges provide testing flexibility with their external torque sensor input. Torque sensors with standard chuck adapter are immediately recognized when connected to the display base and are available for your specific testing needs in 1 N-m (9 in-lb) 5 N-m (44 in-lb), and 10 N-m (88 in-lb) capacities. The multiple-language FG-7000T’s provide menu programming for easy selection and set-up of the instrument to your desired requirements. Four selectable modes of operation include Track mode for live readings, Peak mode for displaying the maximum reading, First Peak where only the initial peak is recorded once a decrease is sensed and Preset which initiates user-programmed tolerance alarms for go/no go testing. The display has two selectable operations, a numerical view with a directional bar graph or a graphical view with a directional bar graph. In a graphical view when alarm tolerances are set, the process is plotted in relation to the upper and lower limit graph lines. Combined with the go/no go icons, a simple pass/fail determination is recognized. These high-tech instruments can data log a reading at the push of a button for simple data acquisition or be set to continuous data storage. Data can be viewed on the screen, sent to the optional printer, or loaded to be analyzed and graphed on the free software program. The 1,000-point memory with definable groups allows for multiple tests to be recorded and easily separated upon loading. In addition, the comparator output can be set up for the integration of the instrument into a quality system for repetitive testing such as on a production line. The FG-7000T’s robust housings are designed to fit perfectly in the operator’s hand for portable testing. The large back-lit, 180° auto-reversible display, CW/CCW directional bar graph, combined with the dual labeled keypad allows for usage of the gauge in various positions while still being able to easily view and operate. These various features make the FG-7000T the ideal torque instrument for various applications such as closing or opening analysis of containers, valves, and door hardware, failure or destructive torque testing, or almost any torque testing requirement involving incoming quality inspection, finished goods testing to R&D.
