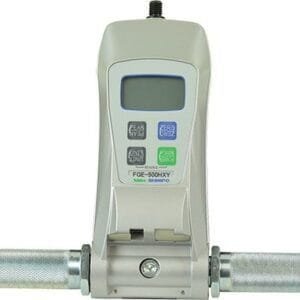

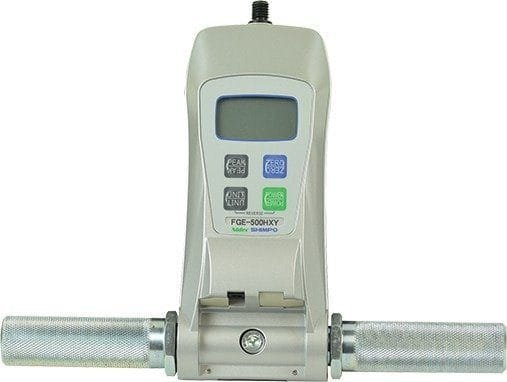

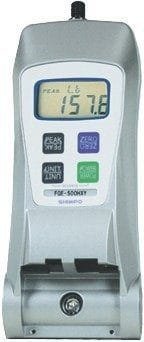

Shimpo FGE-500HXY – Digital Force Gauge, 500 lb High Capacity

• 1000 Hz Sample Rate provides faster sampling producing better resolution and more accurate results
• Ideal for strict tolerances with its high accuracy +/-0.2% F.S.
• Measure and record compression and tension tests. Permits true “push-pull” testing
• 180° Reversible display and dual printed keypad allows usage as a portable gauge or mounted upside down on a test stand
• 1 million operation load cell with superior overload protection provides a long-life, damage free product

High Capacity Digital Force Gauges with 180° reversible display & dual labeled keypad for both push, pull applications

The Series FGE-HXY Digital Force Gauges offer an enhanced heavy-duty housing allowing them to be utilized in high capacity tension and compression applications. Simple one button adjustment alters units, while pressing the peak button quickly produces the highest recorded value during the test. The 180° reversible display combined with the adjustable force direction and dual labeled keypad enable the FGE-HXY to excel in both compression and tension applications in any direction. These instruments are utilized in a variety of applications such as, incoming quality inspection, finished goods testing, R&D, ergonomic and isokinetic testing or almost any portable or force stand testing requirement.

Models are available in 500 lb ranges providing necessary performance for high capacity testing.
