Shimpo FGE-5XY Digital Force Gauge with 180 Degree Reversible Display, 5 lb Capacity

Shimpo FGE-5XY – Digital Force Gauge with 180 Degree Reversible Display, 5 lb Capacity

• Ideal for strict tolerances with its high accuracy +/-0.2% F.S.
• Measure and record compression and tension tests- permits true “push-pull” testing
• Real time or Peak Hold mode easily selectable with a single button push
• 180° Reversible display and dual printed keypad allows usage as a portable gauge or mounted upside down on a test stand

Digital Force Gauge with 180 Degree Reversible Display, 5 lb Capacity

The Shimpo FGE-5XY Digital Force Gauge combines a rugged, ergonomic and compact design with exceptional accuracy to provide a solid force testing instrument. These instruments are utilized in a variety of applications such as, incoming quality inspection, finished goods testing, R&D or almost any portable or force stand testing requirement. Simple one button adjustment alters units, while pressing the peak button quickly produces the highest recorded value during the test. The 180 degree reversible display combined with the adjustable force direction and dual labeled keypad enable the FGE5XY to excel in both compression and tension applications in any direction.

This model has a weight capacity up to 5 lbs (2 kg) providing a large offering for various testing requirements. Typical applications include wallboard, wire pull, wire crimps, trigger pull, brake pedal, aerospace ceramic, springs, food ripeness, corrugated paper strength, blister pack, medical component, muscle strength, ergonomic testing, adhesives, syringe plunger, needle sharpness and many more.

Digital Force Gauges with 180° reversible display & dual labeled keypad for both push, pull applications

The Series FGE-XY Digital Force Gauges combine a rugged, ergonomic and compact design with exceptional accuracy to provide a solid force testing instrument. These instruments are utilized in a variety of applications such as, incoming quality inspection, finished goods testing, R&D or almost any portable or force stand testing requirement.

Simple one button adjustment alters units, while pressing the peak button quickly produces the highest recorded value during the test. The 180° reversible display combined with the adjustable force direction and dual labeled keypad enable the FGE-XY to excel in both compression and tension applications in any direction. Models are available from 0.5 lbs to 200 lb ranges providing a large offering for various testing requirements.

Typical applications include wallboard, wire pull, wire crimps, trigger pull, brake pedal, aerospace ceramic, springs, food ripeness, corrugated paper strength, blister pack, medical component, muscle strength, ergonomic testing, adhesives, syringe plunger, needle sharpness and many more.

Dimensions

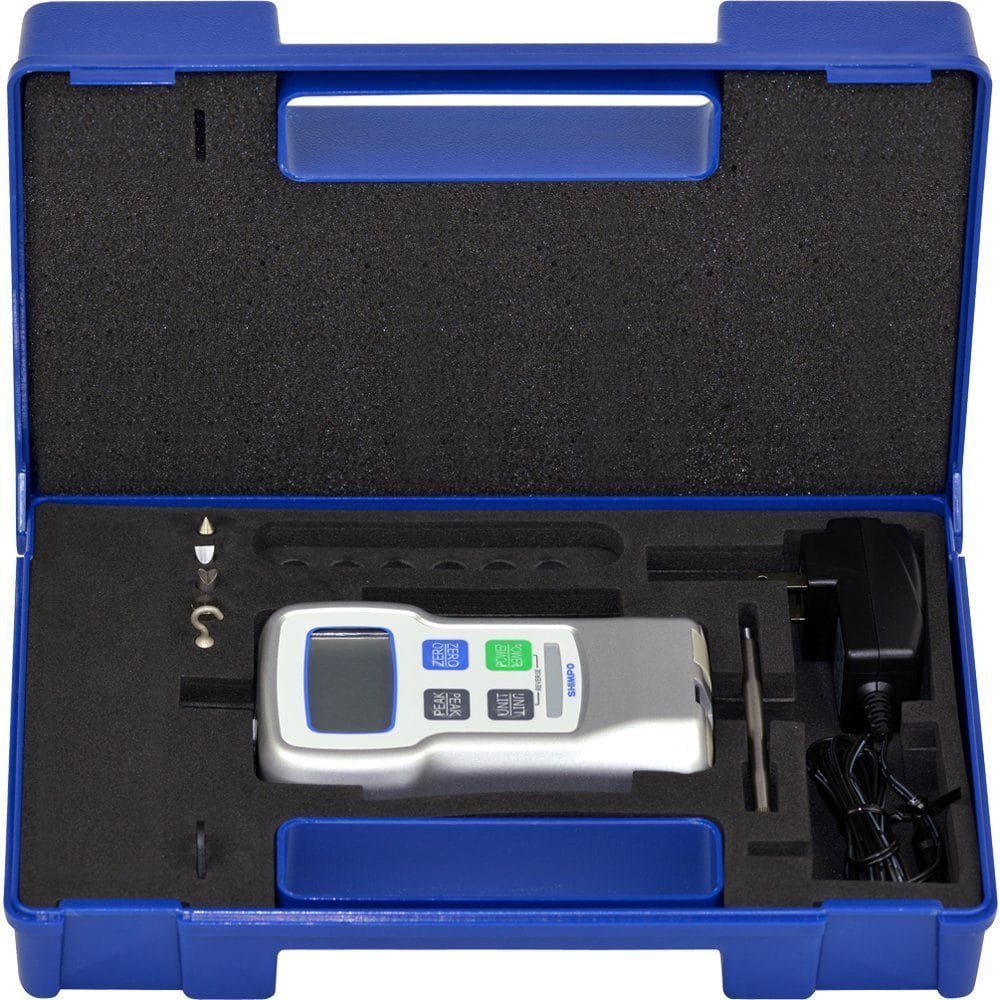

Standard Attachments
