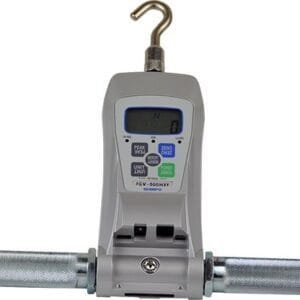

Shimpo FGV-500HXY – Digital Force Gauge, 500 lb High Capacity

• 1000 Hz Sample Rate provides faster sampling producing better resolution and more accurate results
• Ideal for strict tolerances with its high accuracy +/-0.2% F.S.
• Measure and record compression and tension tests. Permits true “push-pull” testing
• Included handle attachments aid in user testing
• 180° Reversible display and dual printed keypad allows usage as a portable gauge or mounted upside down on a test stand

High Capacity Digital Force Gauges with 180° reversible display & dual labeled keypad for both push, and pull applications

The Series FGV-HXY Digital Force Gauges offer an enhanced heavy-duty housing allowing them to be utilized in high capacity tension and compression applications. These instruments are utilized in a variety of applications such as incoming quality inspection, finished goods testing, R&D or almost any portable or force stand testing requirement.

Models are available in 500 lb. or 1000 lb. ranges providing necessary performance for high capacity testing.

The 180° reversible display combined with the adjustable force direction and dual labeled keypad enable these units to excel in both compression and tension applications in any direction. FGV models possess onboard statistical calculations and provide fast access to maximum, minimum, average, and standard deviation data. Models include the free TORIEMON software and USB cable allowing further data analysis on a PC. The FGV-HXY’s 1,000-point memory allows for data exporting in real-time or after testing is complete. In addition, the RS-232C, USB, and analog outputs provide maximum communication flexibility.
