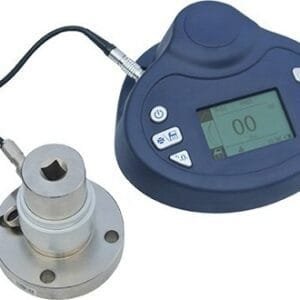

Shimpo TTC-I-50 – Digital Torque Tool Tester, 0.01 N-m, 0.05 lbf

• Strong, light-weight, compact aluminum enclosure allows portability and usage in any shop environment
• Flexible six modes of operation: Track, Peak, First Peak, Auto Peak, Auto First Peak, Double Peak
• Backlit graphical, reversible display with analog bar graph plus CW/CCW directional indication provides fast interpretation of tool response. Selectable chart display mode aids viewing performance over the entire test
• Preset operation with Pass-Fail LED icons enable quick determination of tool performance acceptance
• Units come standard with USB or RS232 communication output for data upload

The TTC Digital Torque Tool Tester is a simple operation test instrument for quickly checking torque tool performance up to 590 ft-lb (800 N-m).

The TTC Series provides exceptional accuracy for measuring torque on various products including torque wrenches, manual screwdrivers, electric screwdrivers, pneumatic screwdrivers and other torque controlled power tools.

The TTC’s provide long operation life and power flexibility with the ability to work from the internal rechargeable battery or included AC adapter. The TTC’s have six modes of operation: Track for live readings, Peak which records the highest level over a test, First Peak which records a reading after a programmed decrease, Auto Peak which resets after a period of time, Auto First Peak which resets the first peak after a period of time, Double Peak which provides two separate peak readings from programmed decreases. Preset operation with programmable tolerance thresholds for quick pass fail tool test is available in all modes.

The analog bar graph on the backlit, reversible LCD aids users by providing the resultant torque’s current position compared to the full scale range along with the direction of the force. Pass/fail icons produce live test feedback allowing instant determination of the results.

Every tester comes standard with USB and RS-232 outputs. The TTC’s software enables the uploading of data and the additional statistical analysis with its auto-calculation of the selected values.

These excellent features make the TTC Torque Tool Testers a valuable and versatile addition to the production and quality control departments.
