Siglent F603FE – Female 4.5 SMA Type VNA Calibration Kit
33 people are viewing this product right now
$449.00
Shipping calculated at checkout.
Estimated delivery:3 days
Mechanical Calibration Kit: Open(M), Short(M), Match(M,50), Through(F-F), 4.5 GHz, SMA-type
- SMA-Type mechanical calibration kit

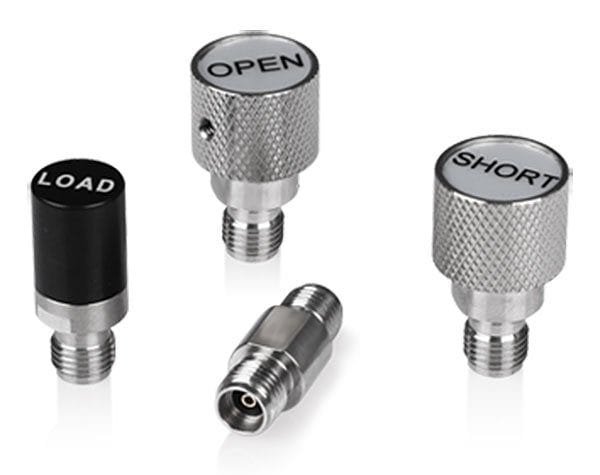

- Open (F), Short (F), Match (F,50), Through (F-F), 4.5 GHz
Guarantee Safe and Secure Payment Checkout
Description
Siglent F603FE – Female 4.5 SMA Type VNA Calibration Kit
The F603ME and F603FE economy 50Ω 3.5mm/SMA type coaxial mechanical calibration standards include fixed terminations, open circuits, short circuits, and through adaptors, specified from DC to 4.5 GHz.
The F603ME and F603FE performance specifications are very similar to the Keysight 85033E mechanical calibration kit and it can be used as an approximate replacement of 85033E, or use the STD of 85033E in network analyzers.
Several models available
Siglent offers several types of calibration kits in both male and female styles up to 9GHz. The following is a brief overview of items in this series. For more detailed information, please see that product’s individual page.
| Model | Frequency | Type | Connector | Impedance | Similar |
| F503ME | DC – 4.5 GHz | OSLT | N-Male | 50 Ω | 85032B/E |
| F503FE | DC – 4.5 GHz | OSLT | N-Female | 50 Ω | 85032B/E |
| F603ME | DC – 4.5 GHz | OSLT | 3.5mm-Male | 50 Ω | 85033E |
| F603FE | DC – 4.5 GHz | OSLT | 3.5mm-Female | 50 Ω | 85033E |
| F504MS | DC – 9 GHz | OSLT | N-Male | 50 Ω | 85032F |
| F504FS | DC – 9 GHz | OSLT | N-Female | 50 Ω | 85032F |
| F604MS | DC – 9 GHz | OSLT | 3.5mm-Male | 50 Ω | 85033E |
| F604FS | DC – 9 GHz | OSLT | 3.5mm-Female | 50 Ω | 85033E |
The model numbers in the left column can be broken down as follows:
- F = Calibration kit
- 5/6 = N or 3.5mm
- 0/1 = 50 or 75 Ohm
- 3/4 = 4.5 GHz or 9 GHz
- M/F = Male or Female
- E/S = Economy or Standard
The Type column indicates:
- OSLT = Open + Short + 50Ω termination Load + Through adapter
Product General Attributes | |
|---|---|
| Country of Origin | China |
