Siglent SDG2042X – Function/Arbitrary Waveform Generator (2 Channels/40MHz/1.2 GSa/s)
33 people are viewing this product right now
$499.00
Shipping calculated at checkout.
Estimated delivery:3 days
40MHz; 2 channels; 1.2GSa/s; wave length: 8pts-8Mpts function/arbitrary waveform output; EasyPulse technology amplitude:2mV ~ 20Vpp (high impedance); modulation function(AM, DSB-AM, FM, PM, ASK, FSK, PWM, Sweep, Burst);frequency counter function
- 2 Channels / 40MHz bandwidth
- 1.2 GSa/s maximum sampling rate
- 16-bit vertical resolution
- 8 pts to 8 Mpts waveform length
- Innovative TrueArb technology supports user-defined waveforms from 8 pts to 8 Mpts and user-defined sample rate from 1 μSa/s to 75 MSa/s
- 4.3″ high definition touch screen
- Easily combine waveforms through a single output, including noise and arbitrary waveforms
- EasyPulse technology generates lower jitter Square or Pulse waveforms, bringing extremely high precision to pulse width and rise/fall time adjustment
- Analog and digital modulation types: AM, DSB-AM, FM, PM, PSK, FSK, ASK and PWM
- Standard interfaces: USB Device, USB Host, LAN (VXI-11), and GPIB (optional)
- High precision frequency counter
Guarantee Safe and Secure Payment Checkout
Description
Siglent SDG2042X – Function/Arbitrary Waveform Generator (2 Channels/40MHz/1.2 GSa/s)
- 2 Channels / 40MHz bandwidth
- 1.2 GSa/s maximum sampling rate
- 16-bit vertical resolution
- 8 pts to 8 Mpts waveform length
- Innovative TrueArb technology supports user-defined waveforms from 8 pts to 8 Mpts and user-defined sample rate from 1 μSa/s to 75 MSa/s
The Siglent SDG2000X are dual channel function/arbitrary waveform generators with 16-bit vertical resolution and sampling rates up to 1.2 GSa/s. Available in 40, 80 and 120MHz, the SDG2000X feature proprietary TrueArb and EasyPulse technologies and were designed to solve the weaknesses inherent in traditional DDS generators. These devices provide a variety of high fidelity and low jitter signals, which can meet the growing requirements of complex and extensive applications.
Easy Pulse technology
When a Square/Pulse waveform is generated by DDS, there will be a one-clock-jitter if the sampling rate is not an integer-related multiple of the output frequency.
SDG2000X EasyPulse technology successfully overcomes this weakness in DDS designs and helps to produce low jitter Square/Pulse waveforms.
The Pulse width can be fine-tuned to the minimum of 16.3ns with the adjustment step as small as 100ps.
The rise/fall times can be set independently to the minimum of 8.4ns at any frequency and to the maximum of 22.4s. The adjustment step is as small as 100 ps.
True Arb technology
For arbitrary waveforms, TrueArb not only has all the advantages of traditional DDS, but also eliminates the probability that DDS may cause serious jitter and distortion.
TrueArb generates arbitrary waveforms point by point, never skips any point so that it can reconstruct all the details of the waveform as defined.
As with EasyPulse, TrueArb effectively overcomes the defect that DDS may cause the one-clock-jitter in arbitrary waveforms.
Other Features
Rich modulation features
Support for AM, FM, PM, FSK, ASK, DSB – AM provide for a variety of analog and digital modulation mode, “internal” and “external” modulation.
Frequency counter function
High precision Frequency Counter with an input frequency range of 0.1Hz~200MHz.
High-Performance Sampling System
Benefiting from a 1.2GSa/s and 16-bit sampling system, SDG2000X achieves extremely high accuracy performance in both time domain and amplitude, which results in more accurately reconstructed waveforms and lower distortion.
4.3 inch high definition touch screen
4.3” touch screen display, makes operation much more convenient.
Front panel
- Power Key
- USB Host
- Touch Screen Display
- Numeric Keyboard
- Knob
- Arrow Keys
- CH1/CH2 Control/Output Port
- Channel Select Key
- Function Keys
- Waveform Option
- Menu Keys

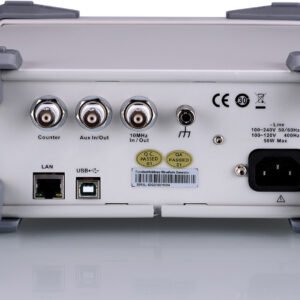

Rear panel
- Counter
- Aux In / Out
- 10MHz Clock Input/Output Port
- Earth Terminal
- AC Power Supply Input
- USB Device
- LAN Interface
Generators / Counters/Function Generator Template | |
|---|---|
| Channels | 2 |
| Frequency Maximum | 40 MHz |
| Frequency Minimum | 1 uHz (0.000001 Hz) |
| Functions | Burst, Noise, Other, Pulse, Ramp, Sine, Square, Sweep, Triangle, TTL |
| Max Amplitude Vpp @ 50 ohms | 10 V |
| Arbitrary | Yes |
| Sample Rate | 1.2 GS/S (1200 MSa/S) |
| Screen Type | Other |
| Color Screen | Yes |
| Digital Amplitude Resolution | 16 Bits |
| Triggering | Yes |
| Counter that displays frequency on screen. | Yes |
| Modulation Types | AM, FM, FSK, PWM |
| Graphical Display | Yes |
| Memory | 8 MB (8192 kB) |
| Direct Digital Synthesis (DDS) | Yes |
| PC Based | No |
Product General Attributes | |
| Unique Features | True-Arb provides true point by point ARB function. Lower distortion, better ARB reproduction. Easy-Pulse results in more flexibility in setting pulse widths and rise times at low rep rates than traditional DSS. NEW Firmware adds: * Harmonics function * Now has 193 ARB waveforms * Variable bandwidth on the Noise function |
| Warranty | 3 YEARS |
| Warranty Details | Warranty service center located in Solon, OH |
| Additional Info/Comments | Large, colorful touch-screen display. 16-bit amplitude resolution LAN & USB interfaces Supplied with Easy-Wave PC software. Low noise floor NEW Firmware adds: |
| Safety Approval | CE, CSA, UL |
| Interfaces I/O | Analog Output, GPIB, LAN / Ethernet, USB Host, USB |
| Storage | Internal Memory, USB Flash Drive |
| Product Weight | 7.6 LBS |
| Product Height | 4.2 IN |
| Product Length | 11.6 IN |
| Product Width | 10.2 IN |
| HTS/Schedule B Number | 8543.20.0000 |
| ECCN Number | 3A992 |
| Calibration Included | Factory Calibration |
| Power Supply Voltage | 120V/220V Universal |
| Country of Origin | China |
| Other Information | |
