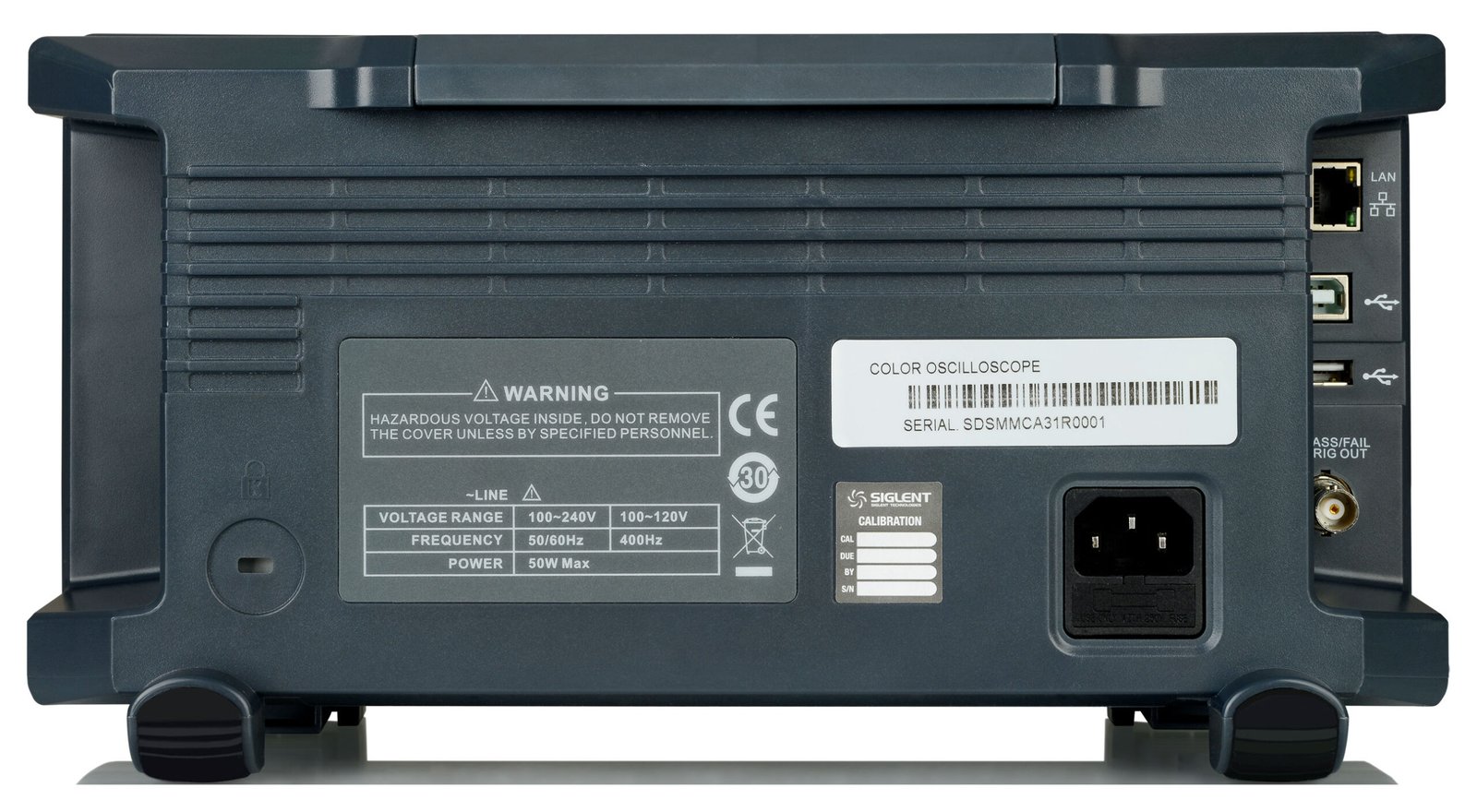

SIGLENT’s new SDS1000X-E Series Super Phosphor Oscilloscope is available in 100 and 200 MHz bandwidths and 2 or 4 analog channels. It has a maximum sample rate of 1 GSa/s and a standard record length of 14 Mpts. For ease-of-use, the most commonly used functions can be accessed with its user-friendly front panel design. The SDS1000X-E series employs a new generation of SPO (Super Phosphor Oscilloscope) technology that provides excellent signal fidelity and performance. The system noise is also lower than similar products in the industry. It comes with a minimum vertical input range of 500 uV/div, an innovative digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 400,000 frames/ sec (sequence mode).

The SDS1000X-E also employs a 256-level intensity grading display function and a color temperature display mode not found in other models in this class. SIGLENT’s latest oscilloscopes offering supports multiple powerful triggering modes including serial bus triggering. Serial decoding is free and includes IIC, SPI, UART, CAN, and LIN. History waveform recording and sequential triggering enable extended waveform recording and analysis. Another powerful addition is the new 1 Mpt FFT math function that gives the SDS1000X-E very high frequency resolution when observing signal spectra. The new design also includes a hardware co-processor that delivers measurements quickly and accurately. The features and performance of SIGLENT’s new SDS1000X-E cannot be matched anywhere else in this price class.

Front Panel

• 1. LCD Display

• 2. Universal Knob

• 3. Common Function Menus

• 4. Clear Sweeps

• 5. Run/Stop

• 6. Decode

• 7. Auto Setup

• 8. Navigate

• 9. History

• 10. Default

• 11. Vertical Control, Math, REF and Digital

• 12. Horizontal Control

• 13. Trigger Control

• 14. Menu on/off

• 15. Menu Soft key

• 16. One-Button shortcut for Save

• 17. Analog Channel

• 18. Power Button

• 19. USB Host

• 20. Digital Inputs

• 21. Probe Compensation/ Ground Terminal

Product Features

Record Length of Up to 14 Mpts

Using hardware-based Zoom technologies and record length of up to 14 Mpts, users are able to use a higher sampling rate to capture more of the signal and then quickly zoom in to focus on the area of interest.

Waveform Capture Rate Up to 400,000 wfm/s

With a waveform capture rate of up to 400,000 wfm/s (sequence mode), the oscilloscope can easily capture low-probability events.

256-Level Intensity Grading

Events that occur more frequently are brighter (intensity grading) than events that occur less often. This allows you to quickly identify spurious signals.

Color Temperature Grading

Event frequency is shown using different colors (temperature grading). Frequent events are warmer the color. This helps to easily identify rare events.

Serial Bus Decoding Function (Standard)

SDS1000X-E displays the decoding through the events list. Bus protocol information can be quickly and intuitively displayed in tabular format.

History Waveforms (History) Mode and Segmented Acquisition (Sequence)

Playback the latest triggered events using the history function. Segmented memory acquisition will store the waveform into multiple (up to 80,000) memory segments, each segment will store triggered waveforms and timestamp each frame.
