Siglent SDS2352X-E – 2 Channel / 350 MHz Digital Oscilloscope
12 people are viewing this product right now
$839.00
Shipping calculated at checkout.
Estimated delivery:3 days
350 MHz;2 channels; 2 GSa/s; 28 M memory depth; 400,000 wfm/s waveform capture rate; 7 inch display (800*480 pixels); SPO technology,1 Mpts FFT Serial bus triggering and decode (Standard), supports IIC, SPI, UART, RS232, CAN, and LIN
- 2 channels / 350 MHz bandwidth
- Real-time sampling rate up to 2 GSa/s
- Record length up to 28 Mpts
- Waveform capture rate up to 110,000 wfm/s (normal mode), and 400,000 wfm/s (sequence mode)
- Serial bus triggering and decoding (standard), supports protocols IIC, SPI, UART, CAN, LIN
- Mixed signal analysis with optional software and logic probe
- Supports 256-level intensity grading and color display modes

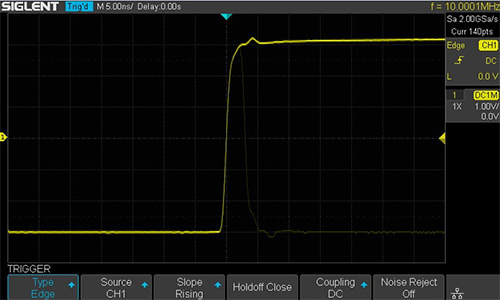

- Intelligent triggers: Edge, Slope, Pulse Width, Window, Runt, Interval, Time out (Dropout), Pattern
- Low background noise with voltage scales from 500 μV/div to 10 V/div
- Math functions (FFT, addition, subtraction, multiplication, division, integration, differential, square root)
Guarantee Safe and Secure Payment Checkout
Description
Siglent SDS2352X-E – 2 Channel / 350 MHz Digital Oscilloscope
- 2 channels / 350 MHz bandwidth
- Real-time sampling rate up to 2 GSa/s
- Record length up to 28 Mpts
- Waveform capture rate up to 110,000 wfm/s (normal mode), and 400,000 wfm/s (sequence mode)
- Serial bus triggering and decoding (standard), supports protocols IIC, SPI, UART, CAN, LIN
SIGLENT’s SDS2000X-E Series Super Phosphor Oscilloscopes are available in two bandwidths; 200 MHz and 350 MHz. They each have a maximum sampling rate of 2 GSa/s and a standard record length of 28 Mpts. The most commonly used functions can be accessed with a user-friendly one-button design.
The SDS2000X-E series employs a new generation of SPO technology. With its excellent signal fidelity, background noise is lower than similar products in the industry. It has a minimum vertical input range of 500 uV/div, an innovative digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 400,000 frames/sec (sequence mode). It also employs a 256-level intensity grading display function and a color temperature display mode not found in other models in this class.
The SDS2000X-E supports multiple powerful triggering modes including serial bus triggering and decoding. History waveform recording and sequential triggering allows for extended waveform records to be captured, stored, and analyzed. Also included is the deep memory FFT. This math function uses up to 1 M samples for FFT calculation, providing the SDS2000X-E with very high frequency resolution. The hardware co-processor executes true fast measurement and math to all 28M sample points so that there is minimal distortion on analysis.
This series also supports searching and navigating, on-screen Bode plot, 16 channel digital /MSO (optional), an external USB powered 25 MHz AWG function generator module (option), a USB WIFI adapter for wireless control and monitoring (option), and an embedded application that allows remote control via web browser. The features and high-performance of the SDS2000X-E oscilloscopes cannot be matched else anywhere at this price.
Product features

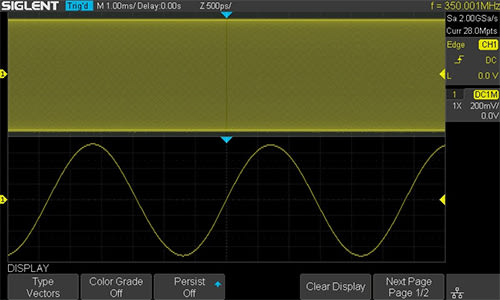

Maximum sample rate of 2 GSa/s, record Length of up to 28Mpts
Using hardware-based Zoom technologies and max record length of up to 28Mpts, users are able to oversample to capture for longer time periods at higher resolution and use the zoom feature to see more details within each signal.
Waveform Capture Rate up to 400,000 wfm/s
With a waveform capture rate of up to 400,000 wfm/s (sequence mode), the oscilloscope can easily capture the unusual or low-probability events.

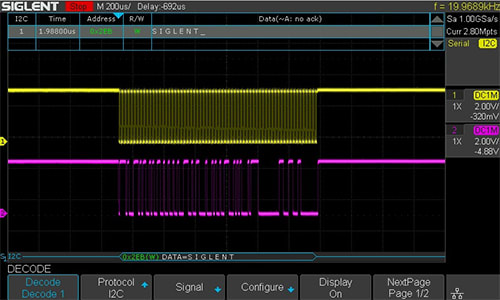

Serial Bus Decoding Function (Standard)
SDS2000X-E displays the decoding through the events list. Bus protocol information can be quickly and intuitively displayed in a tabular format.

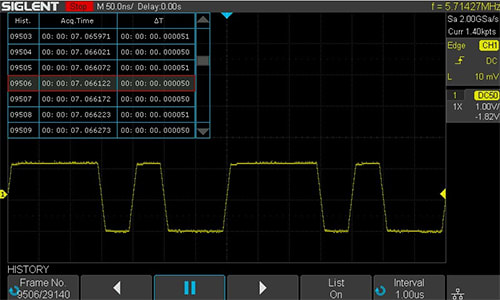

History Waveforms (History) Mode and Segmented Acquisition (Sequence)
Playback the latest triggered events using the history function. Segmented memory collection will store trigger events into multiple (Up to 80,000) memory segments, each segment will store triggered waveforms and timestamp of each frame.

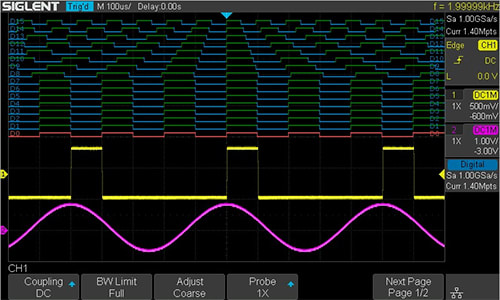

16 Digital Channels/MSO (option)
16 digital channels enables users to acquire and trigger on digital input channels and view both digital and analog waveforms simultaneously with one instrument.

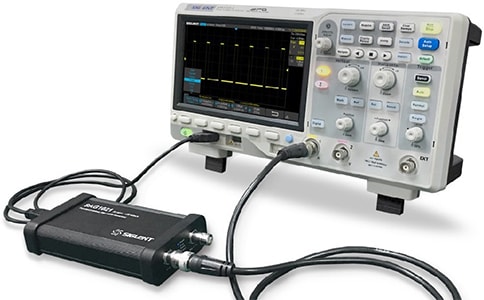

USB 25 MHz AWG Module (option)
The optional 25 MHz function/arbitrary waveform generator is operated from the USB host connection. Functions include Sine, Square, Ramp, Pulse, Noise, DC, and 45 additional built-in waveforms. The arbitrary waveforms can be accessed and edited by the SIGLENT EasyWave PC software.

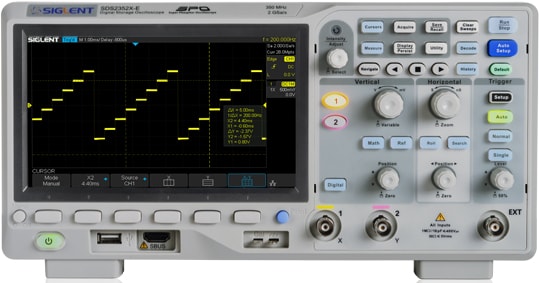

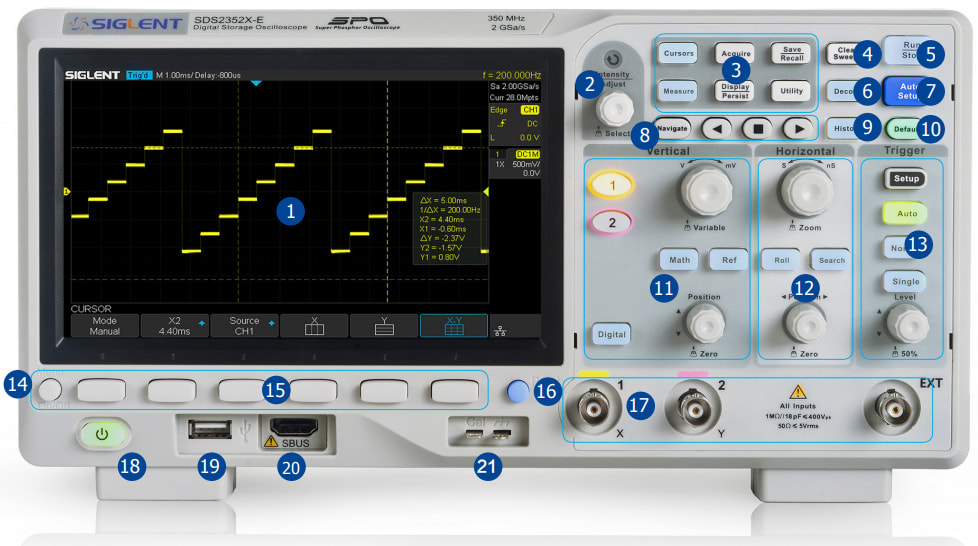

Front panel
- LCD Display
- Universal Knob
- Common Function Menus
- Clear Sweeps
- Run/Stop
- Decode
- Auto Setup
- Navigate
- History
- Default
- Vertical Control, Math, REF and Digital
- Horizontal Control
- Trigger Control
- Menu on/off
- Menu Softkey
- One – Button shortcut for Save
- Analog Channel
- Power Button
- USB Host
- SBUS Digital Inputs1
- Probe Compensation/ Ground Terminal
WARNING: Non-standard HDMI interface, Siglent device ONLY, or you will damage your devices.

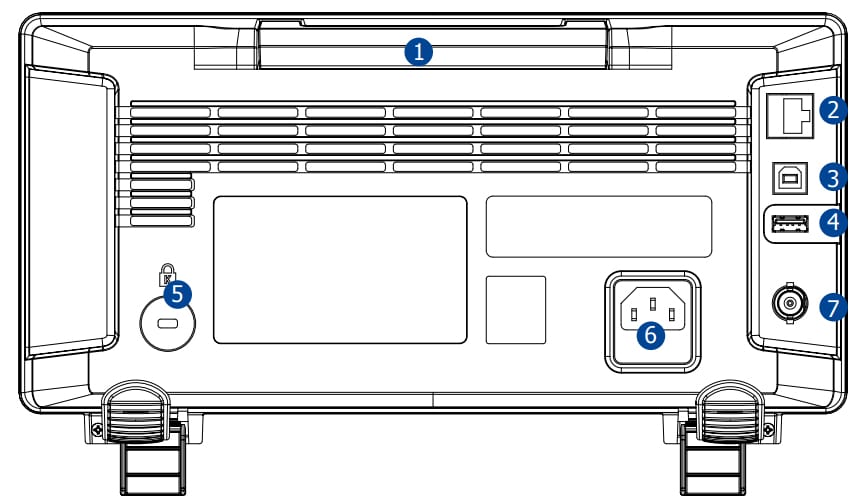

Rear panel
- Handle
- LAN
- USB device
- USB host
- Safety lock hole
- AC power socket
- Pass/Fail trigger out
Oscilloscopes/Digital Oscilloscopes Template | |
|---|---|
| Bandwidth | 350 MHz |
| Channels | 2 |
| Sampling Rate | 2 GS/S |
| Memory | 28 MP [megapoints] (28672 kB) |
| Rise Time | 1 ns |
| Screen Size | 7 IN |
| Bits | 8 |
Product General Attributes | |
| Unique Features | Serial bus triggering and decoding (standard), supports protocols IIC, SPI, UART, CAN, LIN Low background noise with voltage scales from 500 μV/div to 10 V/div 1 Mpt FFT Onscreen Bode Plotting |
| Warranty | 3 YEARS |
| Safety Approval | CE |
| Interfaces I/O | LAN / Ethernet, Web Host / Web Server, Analog Input , USB |
| Storage | Internal Memory, USB Flash Drive |
| IP Rating | IP20 |
| Product Weight | 2.6 KILOS (5.73 LBS) |
| Product Height | 151 MM (5.94 IN) |
| Product Length | 312 MM (12.28 IN) |
| Product Width | 133 MM (5.24 IN) |
| Data Logging | No |
| HTS/Schedule B Number | 9030.20.1000 |
| ECCN Number | EAR99 |
| Calibration Included | Factory Calibration |
| Power Supply Voltage | 120V/220V Universal |
| Country of Origin | China |
