Description
Siglent SSM5142A

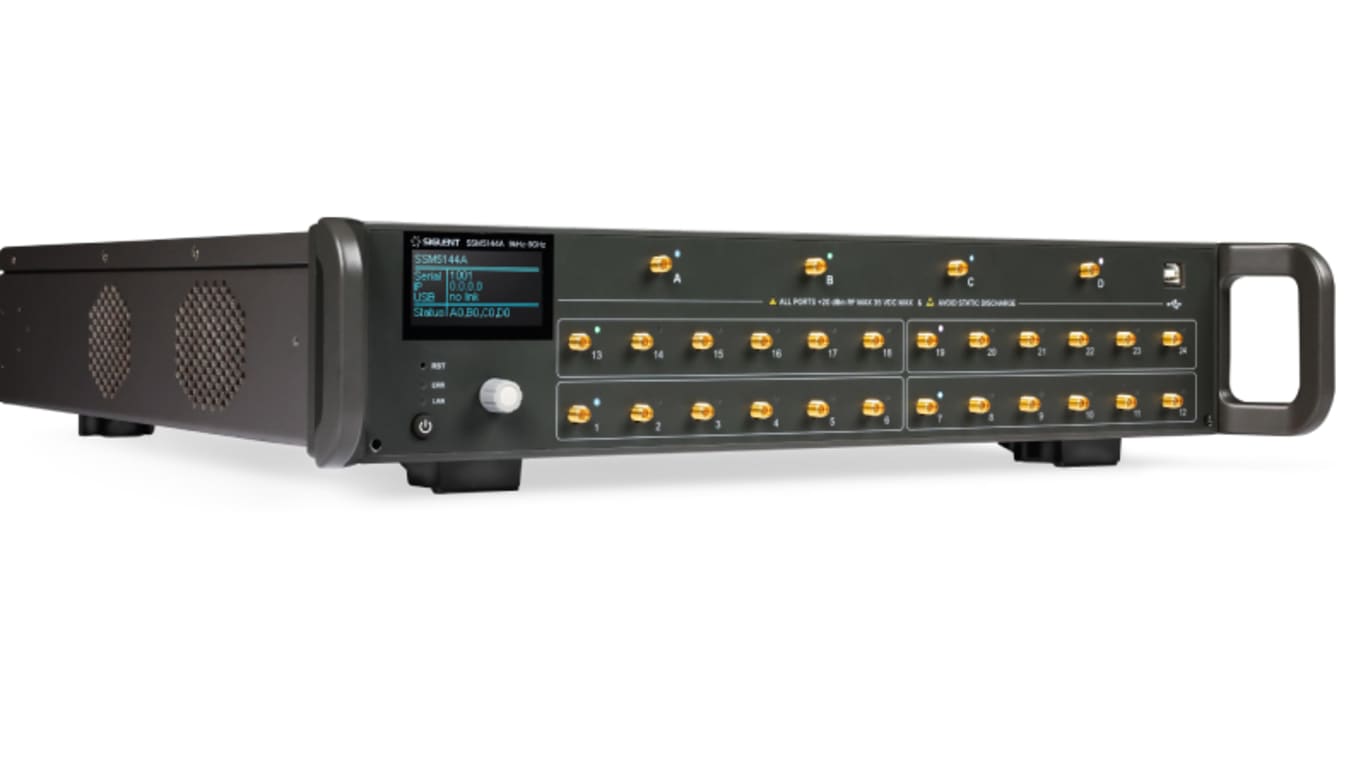

- Images are for illustrative purposes only. Input and output ports will differ depending on the model
- Frequency range: 9kHz – 9GHz
- Number of input ports: 4
- Number of output ports: 12
- RF connector: 3.5mm female
RF Switch Matrix (4 Input Ports, 12 Output Ports, 3.5mm Female, 9kHz – 9GHz)
The SSM5000A switch matrix series can expand the number of test ports of network analyzers, signal sources, spectrum analyzers, and other equipment. Depending on the model, up to 4 input ports, up to 24 output ports, and support for USB, LAN, and Direct Control communication modes are available. The Direct Control interface on the switch matrix can further expand the number of test ports and support a simplified multi-port calibration algorithm, which can greatly improve the efficiency of calibration.
Several versions available
Several models of the SSM5000A series switch matrix are available with different inputs, outputs, and frequency ranges. Please see the table below for an overview.
| Model | RF Inputs | RF Outputs | Frequency |
| SSM5122A | 2 | 12 | 9kHz – 9GHz |
| SSM5124A | 2 | 24 | 9kHz – 9GHz |
| SSM5142A | 4 | 12 | 9kHz – 9GHz |
| SSM5144A | 4 | 24 | 9kHz – 9GHz |
| SSM5321A | 2 | 6 | 100kHz – 26.5GHz |
| SSM5342A | 4 | 12 | 100kHz – 26.5GHz |
Front Panel
| 1. LCD Screen | 6. Indicator |
| 2. RF Ports (source group) | 7. Power Switch |
| 3. RF Ports (extended group) | 8. Knob |
| 4. USB Hub (remote control) | 9. Supporting Legs |
| 5. Reset |
Rear Panel
| 1. Direct CTRL | 4. Fan |
| 2. LAN | 5. AC Power Port and Fuse |
| 3(a). USB (upgrades) 3(b). USB Device (peripherals) | 6. Handles |
​
Port menu
Set the link configuration of ports. Four steps to the configuration:
1. Rotate the knob to select one of the four ports (A-D)
2. Push the knob to enter the config mode
3. Rotate the knob to change the number of linked port
4. Push the knob to finish setting and return
None
