Simatec BHT 500-700 – Bearing Handling Tool, 500-700mm

• For outer diameters measuring from 500-700 mm
• The secure solution for handling large and heavy bearings
• Maximum handling force: 500 kg
• Reduces the risk of accidents and bearing damage

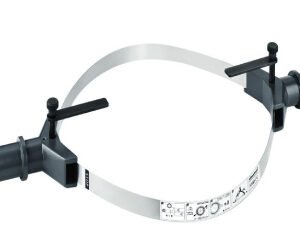

• Encloses the outer race of the bearing with a steel band

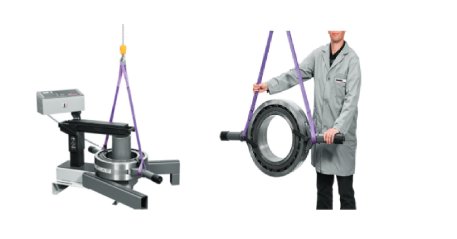

The Simatec Bearing Handling Tool is ideally suited for professionally and securely lifting large, heavy bearings with the maximum handling force of 500 kg. The BHT reduces the risk of accidents and bearing damage. The BHT encloses the outer race of the bearing with a steel band. With two handles on opposite sides and two carrying belts, the bearing can be easily transported with a lifting crane. The bore remains open so the bearings can be easily placed onto a shaft.

With the Bearing Handling Tool, bearings can be both horizontally and vertically fitted onto a shaft. Two anti-twist devices, which are fastened against the inner race, ensure that the inner race of the bearing does not turn out of control.

1. Steel clamping strips

2. Handles

3. Turning handles

4. Inner race fasteners
