Description

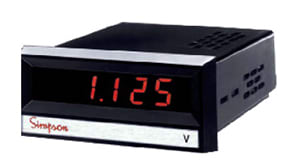

Simpson 24506 Panel Meter RED LED, 2865 0-2 DCMA, 120 VAC
- 2865 0-2 DCMA, 120 VAC, RED LED
- 3 ½ digit red LED display
- Input/output edge connector
- “U” – shaped mounting bracket
- Jumper – selectable decimal point
Mounting Instructions
- The 2800 indicators are installed with the mounting hardware provided.
- Slide the meter through the panel cutout.
- Next, insert a side mounting bracket to each side of the meter.
- Use the two holes located near the bezel to attach them to the meter.
- Slide the brackets back until they lock into the meter.
- Turn the screws in each bracket until they firmly contact the panel surface.
Temperature / PID Controllers | |
---|---|
Size Rectangular | 1/8 DIN |
Panel Meters/Panel Meters Template | |
Type (Panel Meter ) | Digital |
Style (Panel Meter) | Rectangular/Square |
Number of Inputs (Panel Meters) | Single |
Mounting (Panel Meter) | Panel Mount |
Input (Panel Meters) | Current |
Size-Face Width | Other |
Process Output | No |
Control / Alarm Setpoints | No |
Water Proof | No |
Splash Proof | No |
Relay Output | No |
Product General Attributes | |
Country of Origin | United States |
