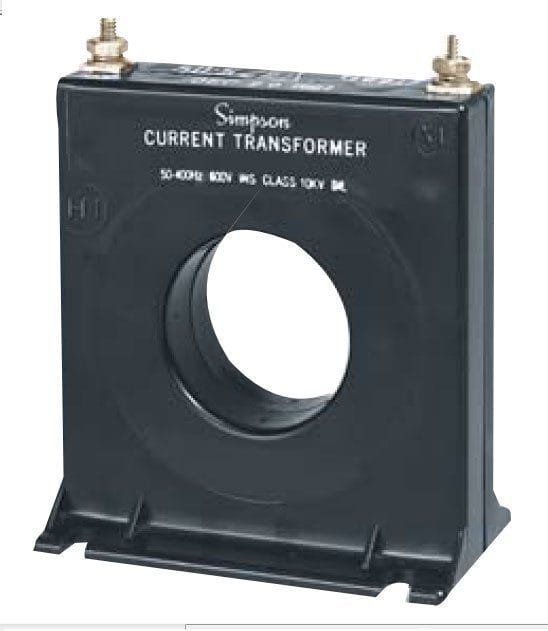

Simpson 37020 Current Transformer with Terminals 100/5 AMPS

Name: Simpson 37020 Current Transformer with Terminals 100/5 AMPS - NESTES Instruments
SKU: Simpson 37020
Price: 57.80 USD
Availability: InStock

Brand:

Simpson

Please, activate Wishlist option to use this widget.

Please, activate Compare option to use this widget.

8 people are viewing this product right now

Original price was: $61.66.Current price is: $57.80.

Shipping calculated at checkout.

Add to quote

Estimated delivery:5 days

CURRENT XFMR, SCREW, 100/5 AMPS

Reduces High AC Current Signal to 5 Amp AC Signal
Six AC Current Input Ranges Available
Accuracy ±1.0% (±2.0% for 100 Amp)
Screw Terminals for Easy Connection

SKU: Simpson 37020 Tags: Current Sensors, Current Transformers Categories: Current Transformers

Have any Questions?

Feel free to Get in touch

Guarantee Safe and Secure Payment Checkout

Description

Reviews (0)

Manuals/Guides

Description

Simpson’s terminal-type current transformers can be used to monitor AC Current when the current level is too high for the panel meter to be connected directly in series, usually above 75 Amperes. The current transformer reduces the primary input current to a secondary current of 5 Amperes, which can be monitored by the panel meter. The current transformer is equipped with terminals to permit easy connection to either an analog or a digital panel meter. These terminals are # 8-32 brass studs and come with flat washer, lockwasher, and regular nut (Leads are not provided). A typical wiring setup is shown at right, depicting a terminal-type current transformer installed with a panel meter to monitor current.
