Sale

SKF TIH 100M/MV Medium Induction Heater – 400–460 V/50–60 Hz

Name: SKF TIH 100M/MV Medium Induction Heater - 400–460 V/50–60 Hz - NESTES Instruments
SKU: SKF TIH 100M/MV
Price: 8637.31 USD
Availability: InStock

Brand:

SKF

Please, activate Wishlist option to use this widget.

Please, activate Compare option to use this widget.

20 people are viewing this product right now

Original price was: $15,723.26.Current price is: $8,637.31.

Shipping calculated at checkout.

Add to quote

Estimated delivery:5 days

Medium induction heater with a 120 kg bearing heating capacity – 400–460 V/50–60 Hz

Standard swivel arm for large size yoke
Capable of heating a 97 kg (213 lb) bearing in less than 20 minutes, saving time and energy
2-step power setting and smaller yokes allow heating smaller bearings safely and at lower power consumption
Temperature mode pre–set at 110 °C (230 °F) to help prevent bearing over–heating
Automatic demagnetisation
3 years warranty

SKU: SKF TIH 100M/MV EAN: 7316572533277 Tags: Bearing Tools, Reliability / Preventative Maint / Rotational Categories: Bearing Tools

Have any Questions?

Feel free to Get in touch

Guarantee Safe and Secure Payment Checkout

Description

Reviews (0)

Manuals/Guides

Description

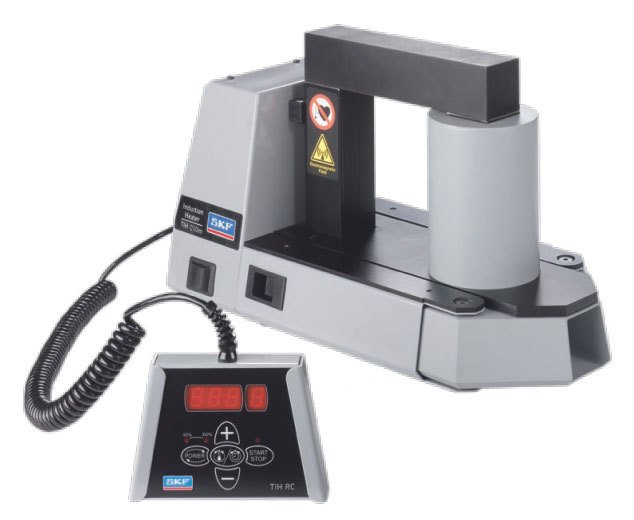

SKF TIH 100M/MV Medium Induction Heater

The SKF medium induction heater TIH 100m has the same high standards of efficiency and performance as the smaller heater TIH 030m, combined with increased capacity. The advanced design of the power electronics allows features of accurate electric current control, cut-outs to avoid overheating, controls on rate of temperature increase, these are as some of the standard features in the TIH Series range.

Placing the induction coil outside the heater’s housing allows the heating of bearings weighing up to 120 kg (264 lb). The heater is equipped with thermal overheating protection to reduce the risk of damage to the induction coil and the electronics. In addition to temperature mode, the TIH 100m is equipped with a time mode for heating components other than bearings. The heater is supplied standard with three yokes and is available in two executions: 230V/50-60Hz or 400-460V/50-60Hz.
