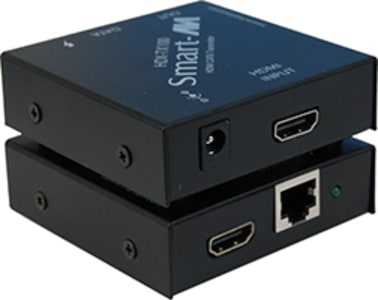

Smart-AVI HDX-100S – Transmitter and Receiver for HDMI Over a Single CAT6 Cable
27 people are viewing this product right now
Original price was: $328.90.$267.23Current price is: $267.23.
Shipping calculated at checkout.
Estimated delivery:4 days
HDMI CAT5/5e/6 STP Extender Includes: [HDX-TX100, HDX-RX100, 2 x (PS5VD2A)]
- Perfect Image Quality at all Resolutions (1920 x 1200, 480p, 720i, 720p, 1080i, 1080p).
- Compact transmitter/receiver units
- Video Resolutions up to 1920 x 1200 at 60Hz (1280 x 1024 at 75Hz) on all Distances to the Maximum Limit
- Bandwidth to 1.64Gps
- Automatic DDC Learning from Local Monitor
- Local HDMI Output
- Unit Operates Regardless of Local Monitor Connectivity
- Distances up to 150 Feet using Cat6 STP Cabling
- Compatible with all Operating Systems
- Plug-and-Play – No Software Required
Guarantee Safe and Secure Payment Checkout
Description
Smart-AVI HDX-100S Transmitter and Receiver for HDMI Over a Single CAT6 Cable
HDMI CAT5/5e/6 STP Extender
- HDMI Type A 19 pin female video interface
- 1920 x 1200@60Hz or 480p/720i/720p/1080i/1080p resolution
- Dimensions – 2.75”W x 3.875”L x 1”H
The Smart-AVI HDX-100S is an innovative solution to extending any HDMI signal – be it a gaming console, Blu-ray player, computer, etc. – over inexpensive CAT6 STP cabling up to 150 feet away to one remote display and one local screen for real-time monitoring of content.
This is the perfect solution for broadcasting high-definition media easily and inexpensively from a source to display screen for customers to view while keeping the CPU in a remote, secure location, such as a computer room or the back office of a business. Utilizing the HDX-100S, users can monitor what’s being shown to customers in real-time via a local display while retaining full control over the CPU or HDMI source, accessible only by key personnel.
Compact design
The HDX-100 is a compact unit that is easily integrated into a digital display network such as in a retail store or bar/lounge. The transmitter and receiver units are extremely compact, which makes inclusion into a user’s infrastructure very simple and handy.

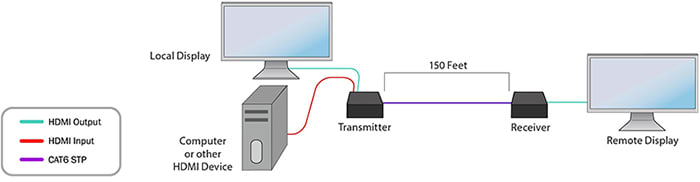

Diagram
Product General Attributes | |
|---|---|
| Warranty | 1 YEARS |
| Warranty Details | All Smart-AVI products are warranted to be in good working condition for a period of one (1) year from the date of purchase. |
| Product Weight | 1.2 LBS |
| Product Height | 8.75 IN |
| Product Length | 5.18 IN |
| Product Width | 6.375 IN |
| Shipping Weight | 3 LBS |
| Country of Origin | United States |
| UPC | 638936941953 |
You must be logged in to post a review.
Manuals/Guides
ManualsSpec Sheets
| Weight | 1.2 lbs |
|---|---|
| Dimensions | 5.18 × 6.375 × 8.75 in |
Related products
Sale

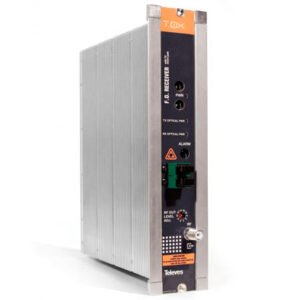

Televes 233501 T.0X Broadband Fiber Optic Receiver
Original price was: $391.28.$342.37Current price is: $342.37. Add to cartSale

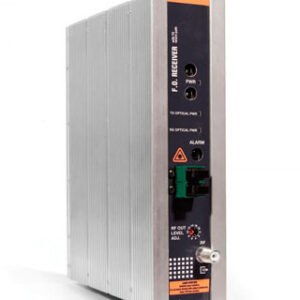

Televes 233601 T.0X BROADBAND Fiber Optic Receiver / Return Path Transmitter (1310nm / 6dBm)
