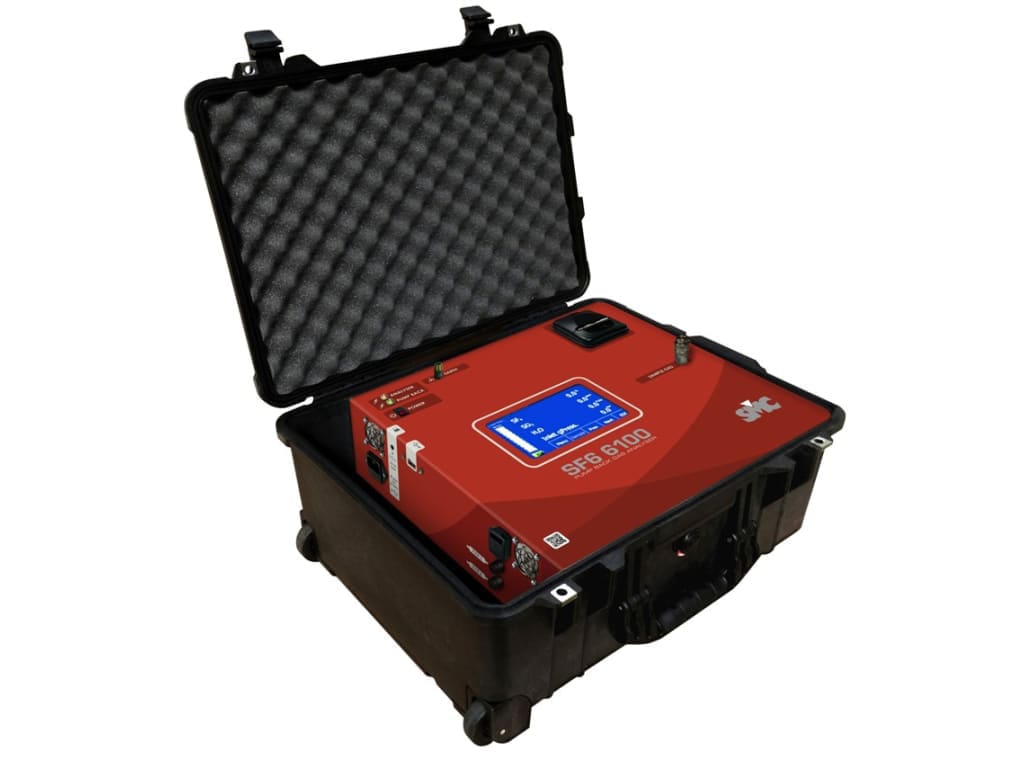

SMC SF6 6100-6 – Portable Gas Analyzer with 6 Gas (SF6, SO2, H2O, HF, CO, H2S)

• Configuration of sensors include: SF6, SO2, H2O, HF, CO, H2S
• Housed within a heavy-duty, transportable IP66 case
• Total weight of 46 lb (21kg)
• Powerful, software is included
• Pre-programmed with all current IEC and CIGRE test configurations

This is my super awesome description for this amazing product. It includes cool features and amazing things this product is capable of! This description should be well written, short, and super helpful for the customer.

The SMC Rapidox SF6 6100 Pump Back is a fully automatic SF6 gas analyzer, designed for controlling and monitoring the quality of SF6 in medium & high-voltage gas-insulated electrical equipment.

Sample gas input into the analyzer can be measured in just a few minutes. Once the analysis has taken place, the user has the option to store the SF6 gas within the analyzer for disposal or recycling, or to pump it back into the electrical equipment at pressure, ensuring that no gas escapes in-between sampling.

The integrity of the gas is maintained through the vacuum purge cycle and storage system, which ensures that no air contaminates the gas sample and that no SF6 gas escapes the analyzer. Once analysis has taken place, the user has the option to store the SF6 gas within the analyzer for disposal or recycling or to pump it back into the electrical equipment.

Each SF6 6100 Pump Back and Portable analyzer can be configured to individual customer requirements, with a range of compatible gas sensing combinations available. Though highly configurable, these SF6 6100 analyzers possess many standard features to enhance functionality.

Standard Measurable Gases

• SF6 – Sulphur Hexafluoride
• H20 -Dew Point
• SO2 – Sulphur Dioxide

Optional Gases Included with SF6 6100-6 (6-gas analyzer):

• HF – Hydrogen Fluoride
• CO – Carbon Monoxide
• H2S – Hydrogen Sulfide
