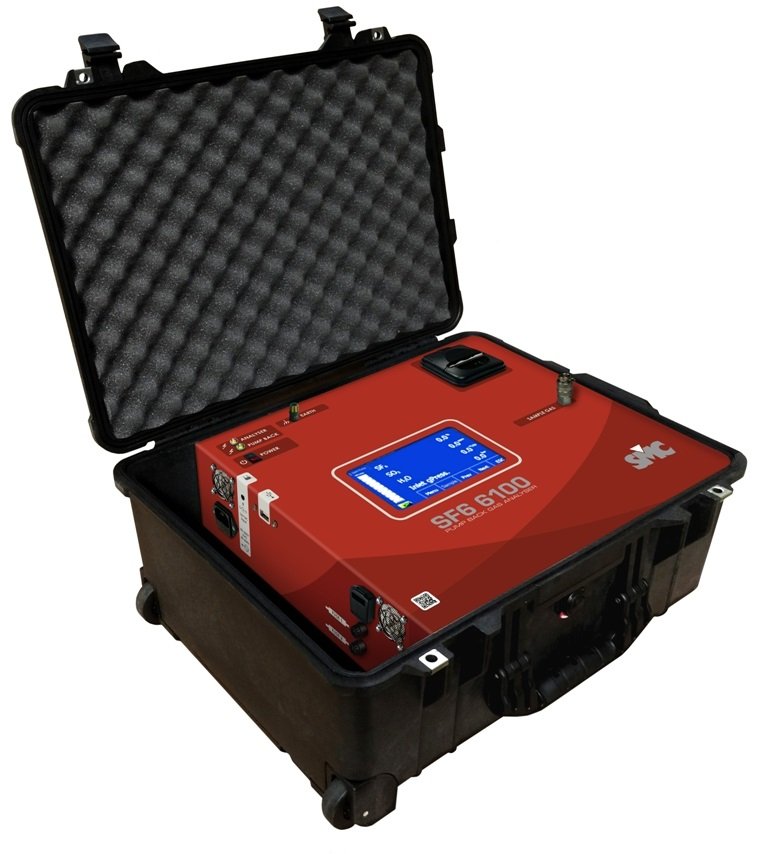

SMC SF6 6100-8 – Portable Gas Analyzer with 8 Gas

• Provides SF 6 gas analysis in accordance with environmental regulation.
• Modular design allows for a custom sensor combination upon request.
• Lithium battery provides up to eight hours of operation. Charging is possible on any voltage (90-260VAC).
• Housed within a heavy-duty IP66 case with a total weight of 46 lbs (21 Kg).
• 7” (180mm) full-color touch screen interface with soft menu keys.

The SMC Rapidox SF6 6100 Pump Back is a fully-automatic SF6 gas analyser, designed for controlling and monitoring the quality of SF6 in medium & high voltage gas insulated electrical equipment. Sample gas input into the analyzer can be measured in just a few minutes. Once the analysis has taken place, the user has the option to store the SF6 gas within the analyzer for disposal or recycling, or to pump it back into the electrical equipment at pressure, ensuring that no gas escapes in-between sampling.

The integrity of the gas is maintained through the vacuum purge cycle and storage system, which ensures that no air contaminates the gas sample and that no SF6 gas escapes the analyzer. Once analysis has taken place, the user has the option to store the SF6 gas within the analyser for disposal or recycling, or to pump it back into the electrical equipment.

• Modular design allows for bespoke sensor combination upon request
• Housed within a heavy-duty, transportable IP66 case
• Total weight of 46 lb (21kg)
• Powerful, software is included
• Pre-programmed with all current IEC and CIGRE test configurations
• Operates on any worldwide mains voltage (90-260VAC)

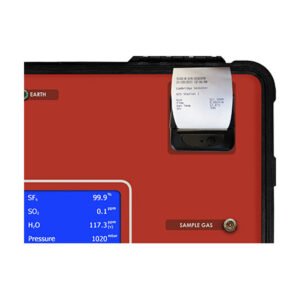

• Thermal printer provides on-site test results
• Multi-language
• Password protection feature

Each SF6 6100 Pump Back and Portable analyzer can be configured to individual customer requirements, with a range of compatible gas sensing combinations available. Though highly configurable, these SF6 6100 analyzers possess many standard features to enhance functionality.

Measurable Gases

The SMC SF6 6100 Pump Back is able to simultaneously measure up to eight compatible Gases, including:

Standard Measureable Gases

• SF6 – Sulphur Hexaflouride
• H20 – Dew Point
• SO2 – Sulphur Dioxide

Optional Measurable Gases

• HF – Hydrogen Fluoride
• CF4 – Tetrafluoromethane
• H2S – Hydrogen Sulfide
• CO- Carbon Monoxide
• Air
