Description

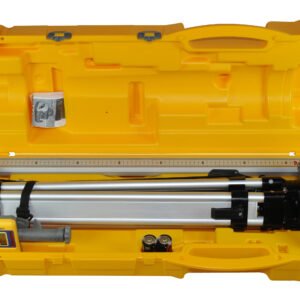

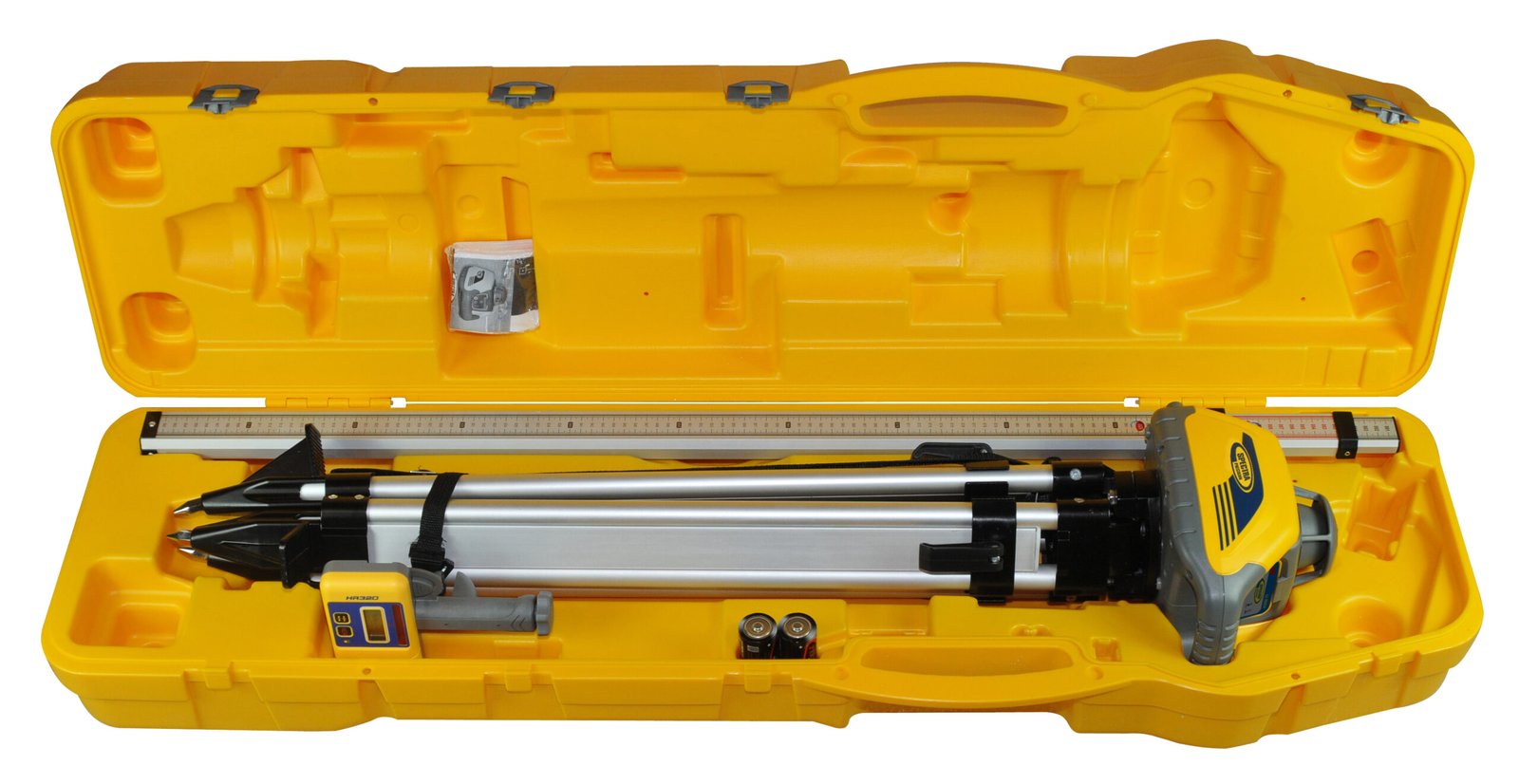

Spectra Precision LL100N-3 Laser Level – with HR320 Receiver, GR153 Rod (Metric), Tripod and Case

- General elevation control
- Checking and setting elevations for smaller job sites
- Leveling forms and footers
- Ideal for decks, terraces, pools, septic systems

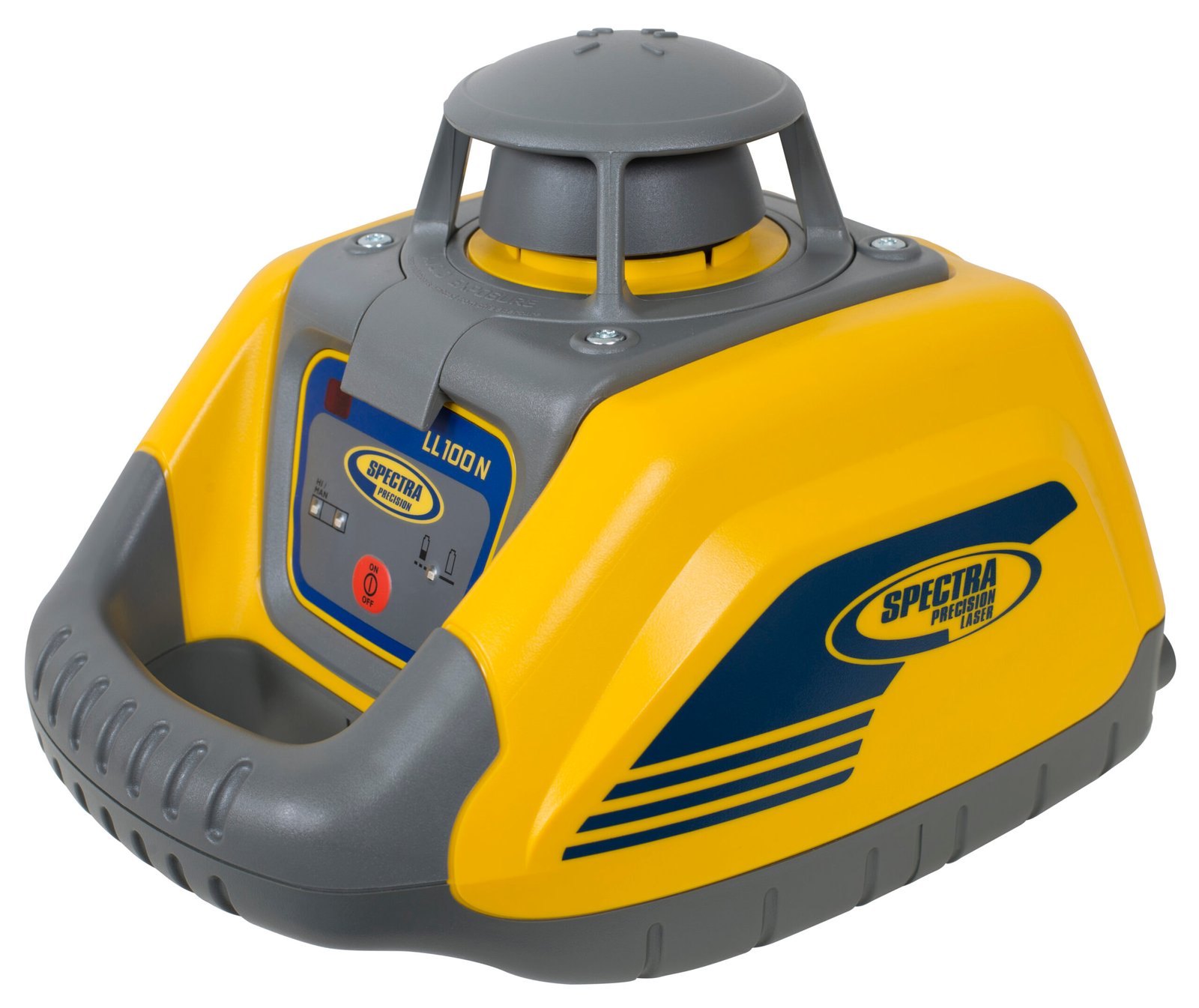

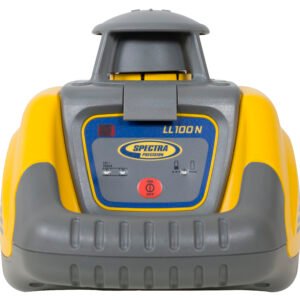

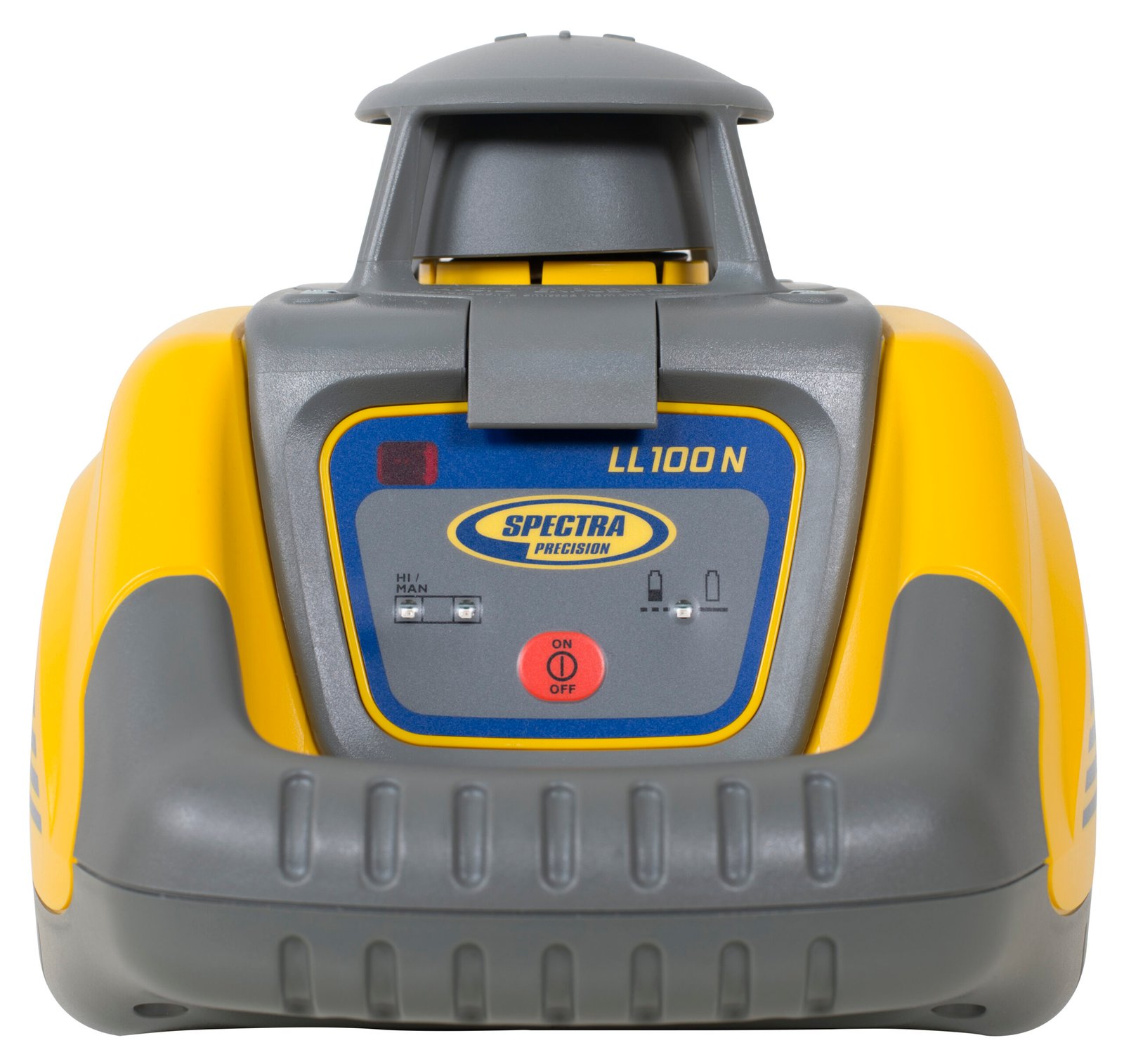

The fully automatic, self-leveling Spectra Precision Laser LL100N sets a new standard in rugged reliability, handling a wide variety of general construction applications. Even in the toughest job site conditions, the LL100N consistently delivers reliable, accurate performance to increase your overall productivity and cost-savings.
The LL100N laser mounts on a tripod and sends a 360° plane of laser light over the entire work area, allowing one person to take accurate, self-leveled elevation measurements up to 575 feet (175 m) away with the HR320 laser receiver.
The LL100N is designed to be durable and reliable, day in and day out, and features superior drop and weather protection. The tough LL100N laser can withstand drops of up to 3 feet (1 m) onto concrete and tripod tip-overs up to 5 feet (1.5 m). This ruggedness results in reduced downtime and lower repair costs.
Key Features
- Automatic self-leveling
- Accuracy 1/8 inch @ 100 ft (3mm @ 30 m)
- Working range of 1,150 ft (350 m) diameter
- Simple one-button operation for quick start up
- Height of Instrument Alert – unit stops rotating when jarred to avoid erroneous readings
- Single axis manual slope mode (with RC601 Remote Control)
- Rotor cage can be removed for precise 360°coverage
- Complete kit available and fits in one case with tripod and grade rod
- Extremely durable and portable
- 3 Year limited warranty
| Part No. | Receiver | Rod | Tripod | Case |
| LL100N | HR320 | No | No | Small Case |
| LL100N-1 | HR320 | GR151 Tenths | Q104025 | System Case |
| LL100N-2 | HR320 | GR152 Inches | Q104025 | System Case |
| LL100N-3 | HR320 | GR153 Metric | Q104025 | System Case |
| All part numbers include LL100N transmitter, HR320 receiver, C59 Adapter for receiver, case, retail carton graphics, 2 D and 2 AA Alkaline batteries | ||||
