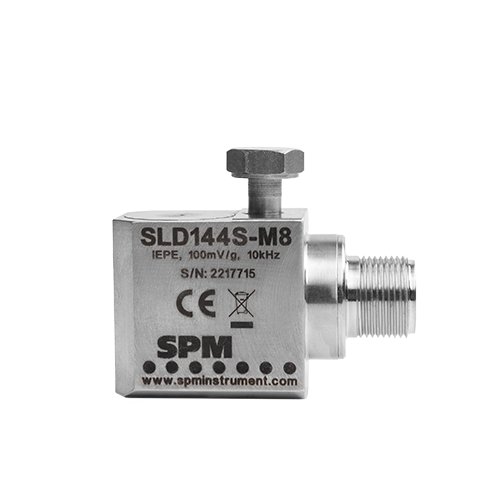

SPM Vibration SLD144S-M8 – Vibration Transducer with Side Entry (2-10k Hz, 100 mV/g, M8 Thread)

• SLD144S – Vibration Transducer with 2-Pin Side Entry (MIL Spec)
• Frequency range: 1-10,000Hz
• Sensitivity: 10mV/m/s2
• Cable length: 100m
• Mounting thread: M8 x 1.25

The SPM vibration transducer SLD144S is a piezo-electric accelerometer compression type with side entry and built-in electronics, designed for vibration monitoring of industrial machinery. The electrical signal is isolated from the transducer housing. The transducer is installed on a flat machine surface and connected via a twisted pair cable with a 2-pin connector. The flat machine surface must be min. 30 mm in diameter (min. 16 mm in diameter when using optional mounting base 15757, 15802, or 17769). The transducer has a captured bolt for installation.

The transducers are piezo-electric accelerometers of compression type; each individually tuned, with built-in preamplifier, designed for vibration monitoring of industrial machinery. The electrical signal is isolated from the transducer housing. Enhanced electronics and improved ambient characteristics deliver excellent performance in a very large area of applications. These transducers are designed to withstand the rigors of industrial environments. Stainless, acid-proof steel housings, case isolation, and hermetic sealing make them very robust.
