Description

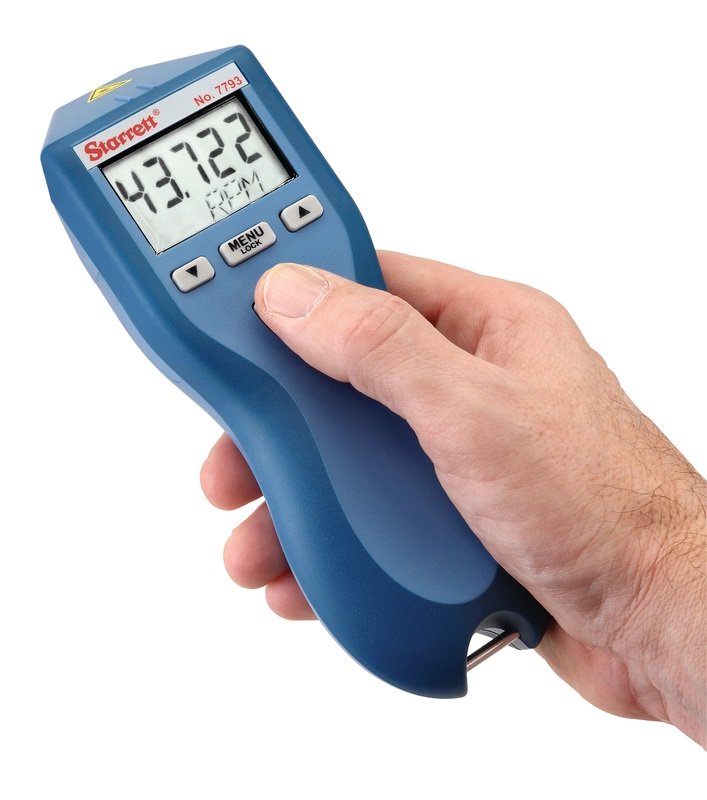

Starrett S7793Z – Contact and Non-Contact Digital Tachometer
The Starrett S7793Z Pocket Laser Tachometer is a digital, battery-powered portable optical tachometer that can operate up to 25 feet from a reflective target using a laser light source. Its ergonomic design allows safe, direct line-of-sight viewing of both target and display at the same time, with a non-slip rubber surface for single hand operation.
This powerful 32 function Tachometer/Ratemeter, Totalizer/Counter and Timer (stopwatch) is programmable in both inch and metric rates. It has TTL compatible pulse output to trigger devices such as data collectors or stroboscopes.
The Starrett S7793 Contact and Non-Contact Digital Tachometer includes a Tachometer, RCA, Contact Tips, 10cm linear contact wheel, (2) AA Batteries and 5 ft of T-5 Reflector Tape, and latching carrying case.
Starrett S7793Z Contact and Non-Contact Digital Tachometer
- Operating range up to 25ft
- Accepts remote contact assembly
- Accepts remote sensors (optional)
- TTL pulse output
- Auto ranging/fixed decimal (user selectable)
- English and metric rates
- Tripod mounting bushing
- On-target and low battery indicators
- Rugged rubberized housing
- NIST traceable certificate of calibration included
Reliability / Preventative Maint / Rotational/Tachometers Template | |
|---|---|
| Detection Type | Contact |
| Style of Tachometer | Handheld |
| Max RPM | 200000 RPM |
| Min RPM | 5 RPM |
| Housing | Plastic |
Product General Attributes | |
| Product Weight | 210 GRAMS (0.463 LBS) |
| Product Height | 6.92 IN |
| Product Length | 1.6 IN |
| Product Width | 2.4 IN |
| Calibration Included | NIST Calibration |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
