Tasco CMT24DS – Circuit Mapper System; 24 Circuit Panel

Tasco CMT24DS – Circuit Mapper System; 24 Circuit Panel

Model CMT24DS

• Maps 24-circuit panel
• Easy to use with no knobs or switches to adjust
• Determines which breakers are serving specific branches in seconds
• Identifies lines on any electrical wiring system

THE CIRCUIT MAPPER SYSTEM – CMT24DS/CMT42DS/CMT84DS

The revolutionary Circuit Mapper System from TASCO maps all branch circuits quickly and easily. Poorly labeled breaker panels are an unfortunate fact of life, but they don’t have to hold you up. The Circuit Mapper System enables you to work quickly and accurately. This branch circuit identifier completely maps all circuits and breaker connections from a single breaker panel. Its digital output shows the complete circuit you are testing. You can map a full breaker panel all at once with this branch circuit tracer.

Forget about the LEDs and confusing displays that come with a conventional electrical circuit tracer. The Circuit Mapper System comes in three models. The CMT24DS maps a 24-circuit panel, suitable for residential or smaller buildings. The CMT42DS maps a complete 42-circuit breaker panel common in most new residential or light office space. The CMT84DS maps 2-42 circuit panels in the same panel room or can even map 2-42 circuit panels on different floors at the same time. The Circuit Mapper System has several clear benefits over a conventional electrical branch circuit identifier. It can save immense amounts of time and will quickly pay for itself. The unit eliminates the mistakes that can occur with a competing electrical wiring locator.

HOW IT WORKS

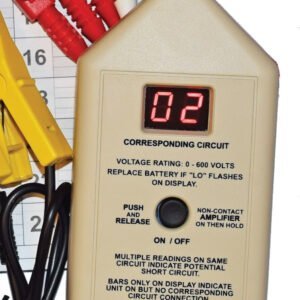

Each of the clamps connected from the transmitter around a conductive circuit induce a coded signal modulated at 166KHz and 250KHz. There is a unique code for each of the branch circuits. The receiver is able to measure the signal on a conductor when the probe is inserted to the outlet. Because of the unique frequency and code of the transmitted signal, the receiver is able to determine the strongest signal at any given outlet or light switch and display that reading to the user.

In a nutshell, the TASCO Circuit Mapper System will enable you to do better, more accurate and more efficient work. In addition, you can count on TASCO to provide unrivaled support for this electrical wiring tracer. Help is just a phone call away, and one call is all it usually takes to solve a problem. In the unlikely event that the Circuit Mapper System isn’t the right tool for you, TASCO will take it back with no hassles. TASCO has provided dependable tools to the trade since 1986.
