TekBox EMCView EMC Pre Compliance Software

TekBox EMCView – EMC Pre Compliance Software

EMCview PC software for EMC pre-compliance testing with Rigol Spectrum Analyzers

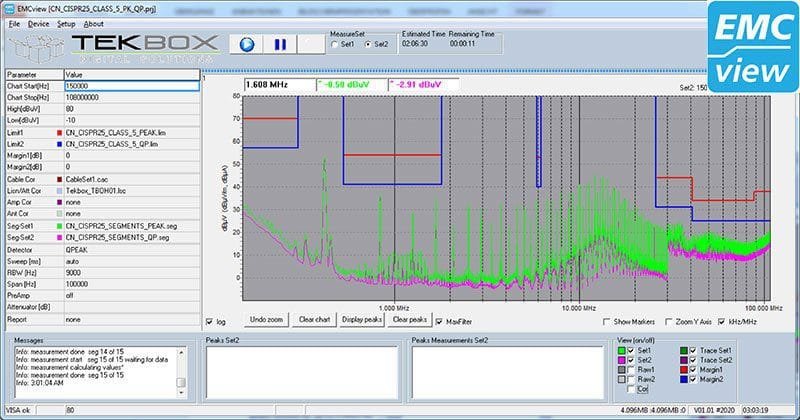

Tekbox EMCview is a PC-software for user friendly EMC pre-compliance testing of radiated and conducted emissions. It is a perfect complement for automated testing using our LISNs and TEM Cells. A built in amplitude correction enables correction and conversion coefficients for cables, amplifiers, attenuators, LISNs, TEM cells, antennas, RF current probes, striplines and capacitive coupling clamps.

There is no need for a time consuming setup. The SW is ready for measurements straight after installation. All emission related CISPR-xx (EN550xx) measurements and a few automotive manufacturer standards are pre-configured in corresponding project files. The graph supports two complete measurement runs such as for example Average / Quasi-Peak or Peak / Quasi Peak and alternatively a fast Quasi-Peak scan of critical peaks.

EMCview currently only supports spectrum analyzers from Rigol. The spectrum analyzer should also be equipped with the EMI option. Support for other spectrum analyzer manufacturers will be added in future SW versions.

Installation information

EMCView is a PC based software.

The latest version can be downloaded from here: https://www.tekbox.com/product/EMCview.zip

Each license can be installed as one of the two following options:

1. For use on only one PC but with multiple Spectrum Analyzers: TekBox will require the Host ID of your Windows PC. Download EMCview from the Tekbox website, copy it into any directory of your desired PC, e.g. C:EMCview and run the exe-file to install it. Then run EMCview and open the ABOUT / About menu and there you can find the ID in the Host # line.
2. For use on multiple PC’s but with just one Spectrum Analyzer: TekBox will need the serial number of your spectrum analyzer. After you send the details of the host file or the serial number of the spectrum analyzer Tekbox will send you the license file.
