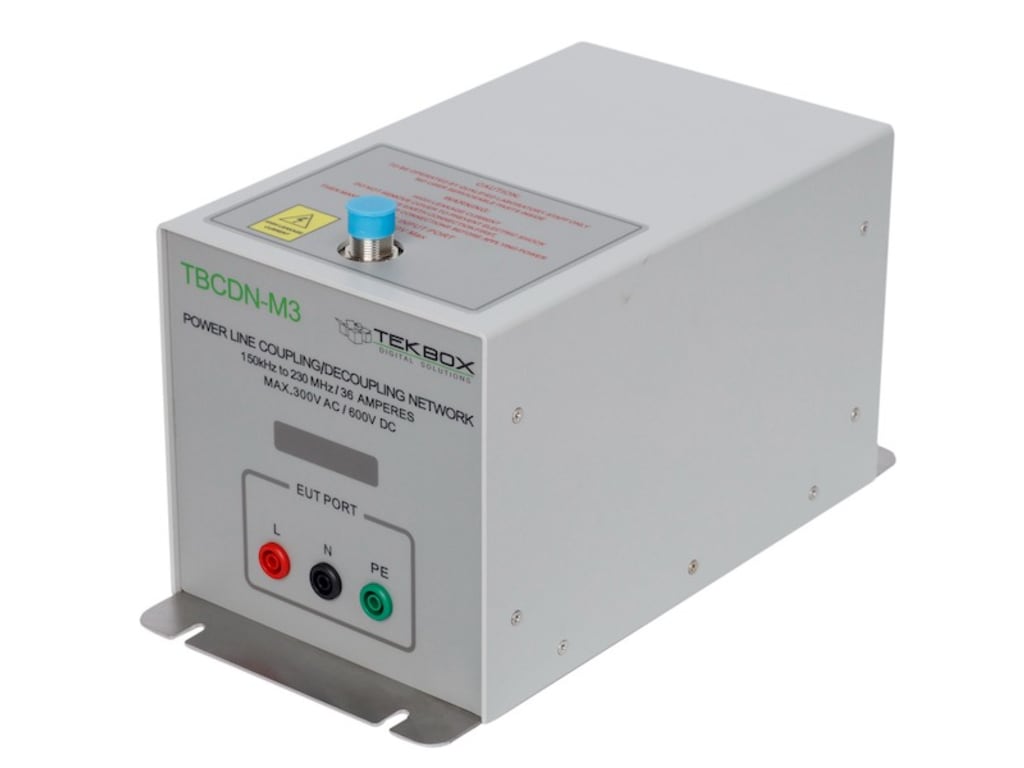

TekBox TBCDN-M3 – Coupling Decoupling Network M3 (36A Max Current)
22 people are viewing this product right now
$1,275.00
Shipping calculated at checkout.
Estimated delivery:5 days
Coupling Decoupling Network M3
- Maximum supply voltage: 300V AC, 600V DC
- Maximum current: 36A
- Frequency range: 150 kHz – 230 MHz
- Maximum RF input power: 6.5W CW
- Maximum RF input voltage: 32 V
- Common mode impedance: 150 kHz – 24 MHz: 150 Ω ± 20 Ω; 24 MHz – 80 MHz: 150 Ω 60 Ω / – 45 Ω; 80 MHz – 230 MHz: 150 Ω ± 60 Ω
- Voltage Division Ratio: 150 kHz – 80 MHz: 9.5 dB ± 1 dB; 80 MHz – 230 MHz: 9.5 dB 3 dB / – 2 dB

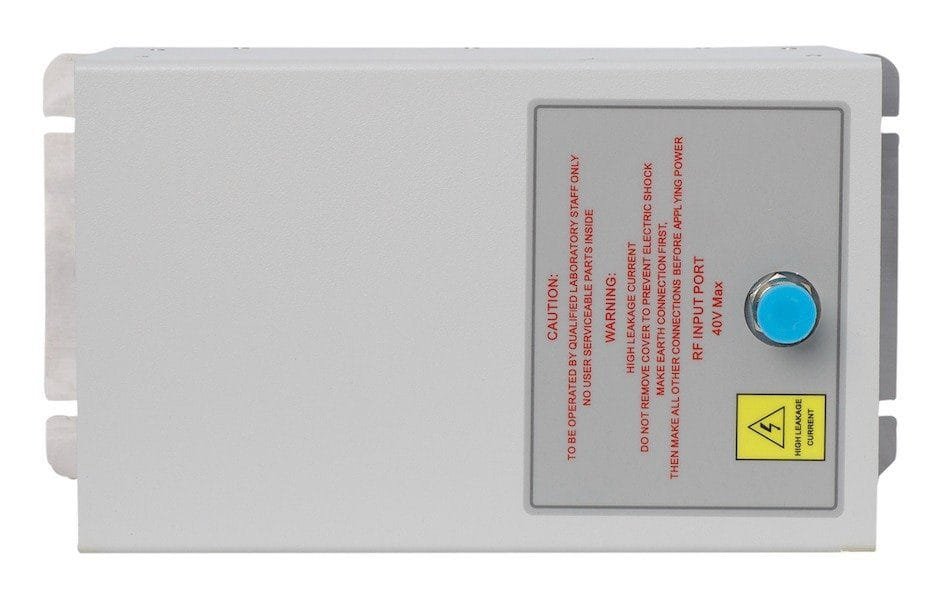

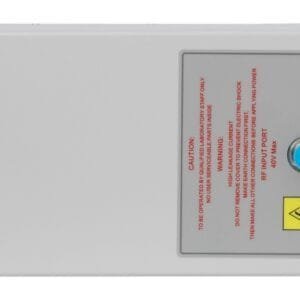

- RF input connector: N – female

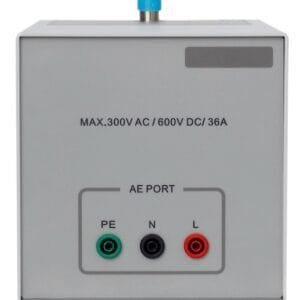

- EUT / AE connectors: 4 mm banana safety jacks, 4mm slots in base plate for GND connection
- Housing material: powder coated aluminum, stainless steel base plate
Guarantee Safe and Secure Payment Checkout
Description
TekBox TBCDN-M3
- Maximum supply voltage: 300V AC, 600V DC
- Maximum current: 36A
- Frequency range: 150 kHz – 230 MHz
- Maximum RF input power: 6.5W CW
- Maximum RF input voltage: 32 V
Coupling Decoupling Network M3 (36A Max Current)
The TBCDN-M3 is a Coupling Decoupling Network for conducting immunity testing according to IEC 61000-4-6.
The TBCDN-M3 is compliant with IEC 61000-4-6 Annex D2. It is designed to inject common mode disturbance signals in the frequency range from 150 kHz to 230 MHz into unscreened AC and DC power supply lines.
Product General Attributes | |
|---|---|
| Product Weight | 2.5 KILOS (5.51 LBS) |
| Product Height | 300 MM (11.81 IN) |
| Product Length | 150 MM (5.91 IN) |
| Product Width | 150 MM (5.91 IN) |
| Shipping Weight | 6.33 LBS |
| Shipping Height | 13.58 IN |
| Shipping Length | 6.78 IN |
| Shipping Width | 6.78 IN |
You must be logged in to post a review.
Manuals/Guides
Manuals
| Weight | 6.33 lbs |
|---|---|
| Dimensions | 150 × 150 × 300 in |
