Coupling Decoupling Network M5

Maximum supply voltage: 300V AC, 600V DC
Maximum current: 36A
Frequency range: 150 kHz to 230 MHz
Maximum RF input power: 6.5W CW, RF input voltage: 32V
RF input connector: N-Female
Common mode impedance: 150 kHz – 24 MHz: 150 Ω ± 20 Ω, 24 MHz – 80 MHz: 150 Ω 60 Ω / – 45 Ω, 80 MHz – 230 MHz: 150 Ω ± 60 Ω
Voltage Division Ratio: 150 kHz – 80 MHz: 9.5 dB ± 1 dB, 80 MHz – 230 MHz: 9.5 dB + 3 dB / – 2 dB

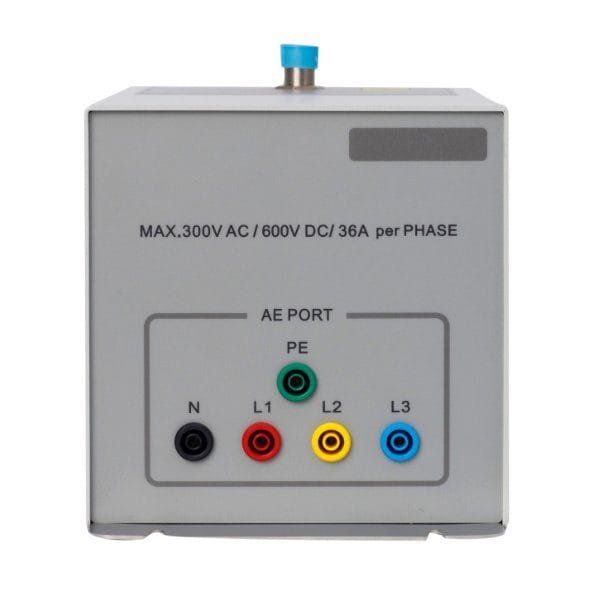

EUT/AE connectors: 4mm banana safety jacks, 4mm slots in base plate for GND connection
Includes individual test protocol with voltage division ratio
Housing material: powder coated aluminum, stainless steel base plate

SKU: TekBox TBCDN-M5 Tags: Accessories, EMI Accessories Categories: EMI Accessories

Have any Questions?

Feel free to Get in touch

Guarantee Safe and Secure Payment Checkout

Description

Reviews (0)

Manuals/Guides

Additional information

Description

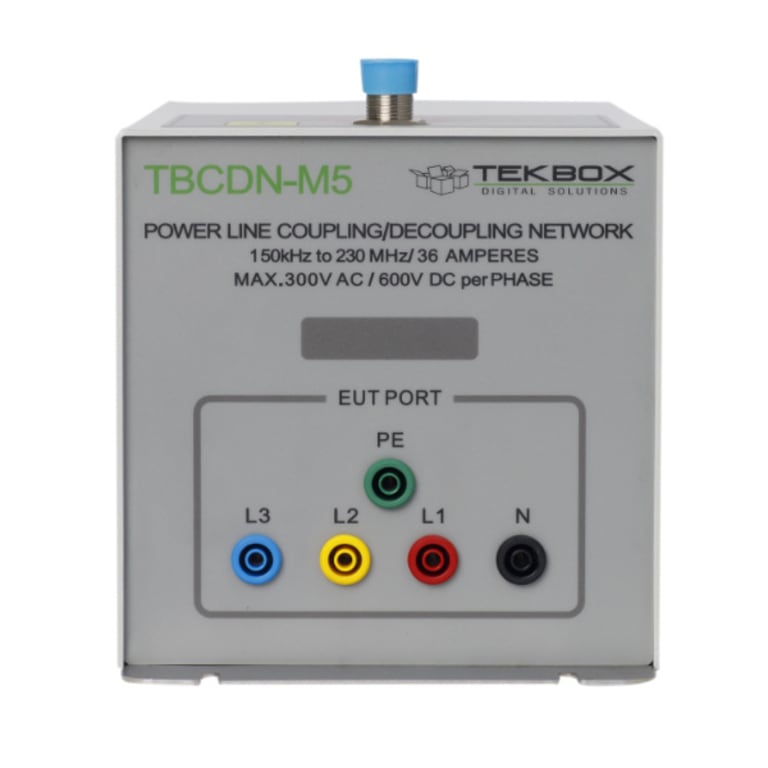

TekBox TBCDN-M5

Maximum supply voltage: 300V AC, 600V DC
Maximum current: 36A
Frequency range: 150 kHz to 230 MHz
Maximum RF input power: 6.5W CW, RF input voltage: 32V
RF input connector: N-Female

Coupling Decoupling Network M5 (36A Max Current)

The TekBox TBCDN-M5 is a Coupling Decoupling Network for conducted immunity testing according to IEC 61000-4-6.

The TBCDN-M5 is compliant with IEC 61000-4-6 Annex D2. It is designed to inject common mode disturbance signals in the frequency range from 150 kHz to 230 MHz into unscreened AC and DC power supply lines.
