Description

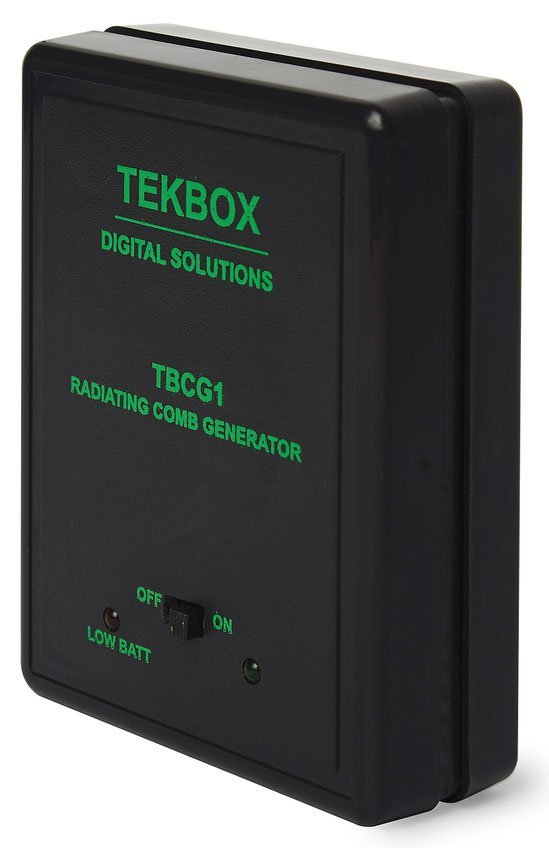

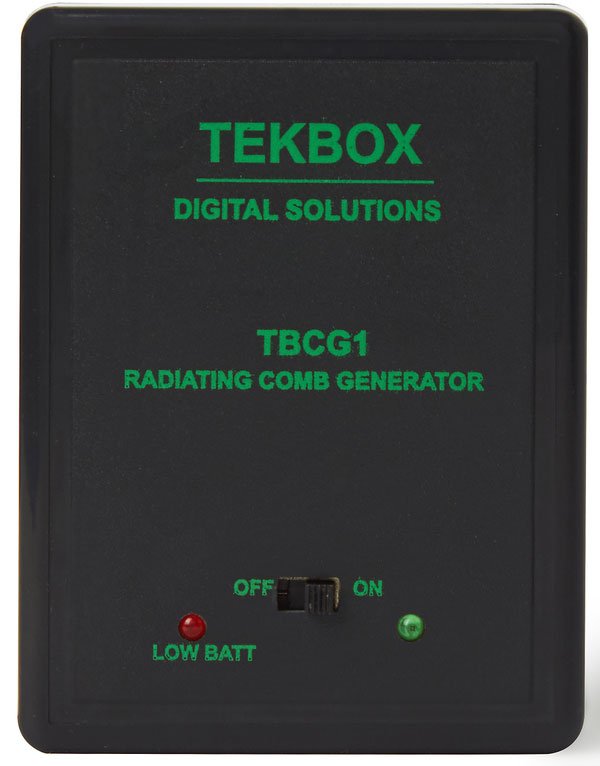

TekBox TBCG1 – Radiating Comb Generator

- Base frequency: 100 MHz
- Characterized comb spectrum: 30 MHz – 6 GHz
- Tolerance: +/- 2.5 dB
The TBCG1 is a radiating comb generator with an internal antenna and a base frequency of 100MHz. It radiates a comb spectrum characterized up to 6GHz. The comb generator is built and characterized to serve as a rough reference for testing radiated noise measurement set ups in anechoic chambers, TEM/GTEM cells, shielded chambers, etc.
It is a portable device, powered by a 9V alkaline cell.
Warning: the TBCG1 radiates across a wide spectrum, significantly exceeding radiating noise limits specified in any CISPR standard. Use it only in a shielded environment to avoid interference with other electronic products.
Turn off the device after its use, to prevent battery drainage (ION = 175mA).

Product General Attributes | |
|---|---|
| HTS/Schedule B Number | 9030400000 |
| ECCN Number | 3A992 |
| Country of Origin | Vietnam |
