TekBox TBMA3 – Logarithmic Periodic Measurement Antenna, 250 MHz – 1300 MHz
24 people are viewing this product right now
$1,375.00
Shipping calculated at checkout.
Estimated delivery:5 days
250 MHz – 1300 MHz Logarithmic Periodic Antenna
- Frequency range: 250 MHz – 1300 MHz
- Connector: N-type female
- Isotropic gain: 6 dBi ± 1.5 dB
- VSWR: < 1.95:1 over the entire frequency range; 1.35:1 average
- Antenna factor: 17.7-27.5 dB/m
- Logarithmic periodic antenna for radiated noise measurement
- Powder-coated aluminum alloy construction
- 1/4″ thread on mounting adapter fits most tripods

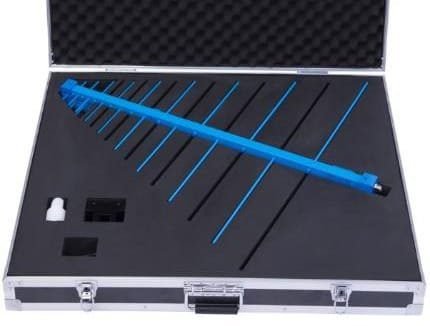

- Sturdy, protective carry case included
- Antenna dimensions: (W) 29.49″ x (H) 6.70″
Guarantee Safe and Secure Payment Checkout
Description
TekBox TBMA3 – Logarithmic Periodic Measurement Antenna, 250 MHz – 1300 MHz
- Frequency range: 250 MHz – 1300 MHz
- Connector: N-type female
- Isotropic gain: 6 dBi ± 1.5 dB
- VSWR: < 1.95:1 over the entire frequency range; 1.35:1 average
- Antenna factor: 17.7-27.5 dB/m

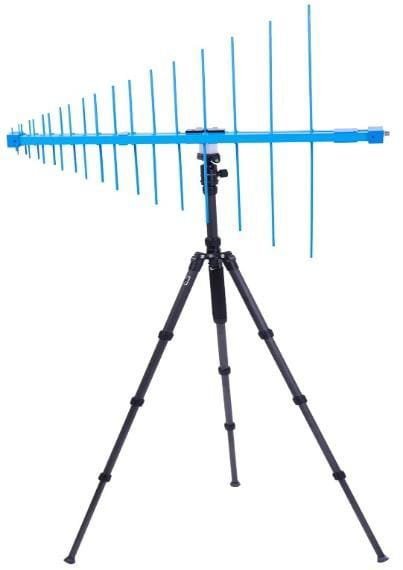

The TBMA3 from TekBox is an average sized log-periodic antenna. The radiating elements and supporting booms are made from powder coated aluminum alloy. It is equipped with a standard female N-connector and comes with an antenna bracket and a mounting adapter. A standard ¼” thread on the bottom of the mounting adapter makes it easy to connect it to most standard tripods.
The TBMA3 frequency range is from 250 MHz to 1.3 GHz and has VSWR and antenna factor values typical for log-periodic measurement antennas. CISPR 16 divides the frequency range into several bands and defines specific antennas for each of these bands. For the frequency range above 300 MHz up to 1 GHz, CISPR 16 specifies using logarithmic periodic antennas (log-periodic antennas) for radiated noise measurements.
Accessories/Antennas Template | |
|---|---|
| Maximum Frequency Range | 1300 MHz |
| Connection | N-Type |
Product General Attributes | |
| Product Weight | 3.92 LBS |
| Product Height | 6.70 IN |
| Product Length | 33.98 IN |
| Product Width | 29.49 IN |
| Shipping Weight | 4.51 LBS |
You must be logged in to post a review.
Manuals/Guides
ManualsOther
| Weight | 4.51 lbs |
|---|---|
| Dimensions | 33.98 × 29.49 × 6.7 in |
