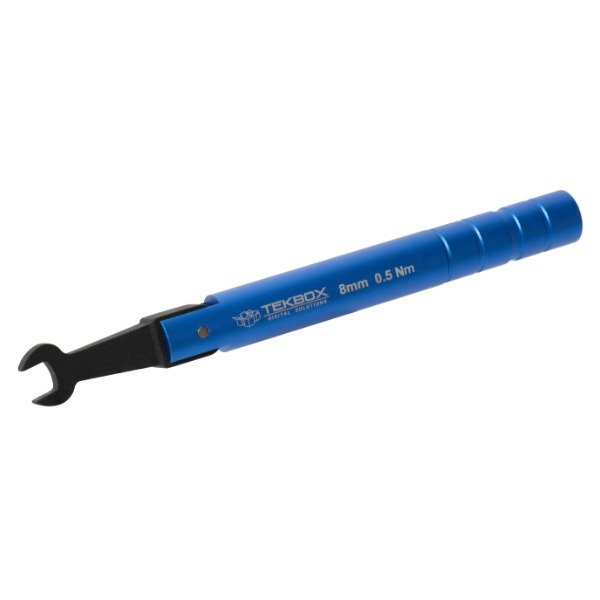

TekBox TBTWR-05NM – SMA Torque Wrench

• This SMA torque wrench is a break-over type with a standard SMA 5/16″ (8 mm) opening (also suitable for 3.5 mm and 2.92 mm connectors)
• Economical SMA torque wrench to ensure consistent and reliable connections for RF/microwave measurements
• Break-over type with a standard SMA 5/16″ (8mm) opening
• Bidirectional operation
• Default factory calibration: 0.5 Nm

This SMA torque wrench is a break-over type with a standard SMA 5/16″ (8 mm) opening (also suitable for 3.5 mm and 2.92 mm connectors).

Application

• SMA with brass connectors: 0.5 Nm (5 in-lbs)
• SMA with stainless steel connectors: 0.9 Nm (8 in-lbs)
• For connecting 3.5 mm or 2.92 mm to SMA: 0.56 Nm (5 in-lbs)
• For 3.5 mm and 2.92 mm: 0.9 Nm (8 in-lbs)
