Tektronix 2-SERIAL – Serial Trigger and Analysis Option for 2 Series Oscilloscopes

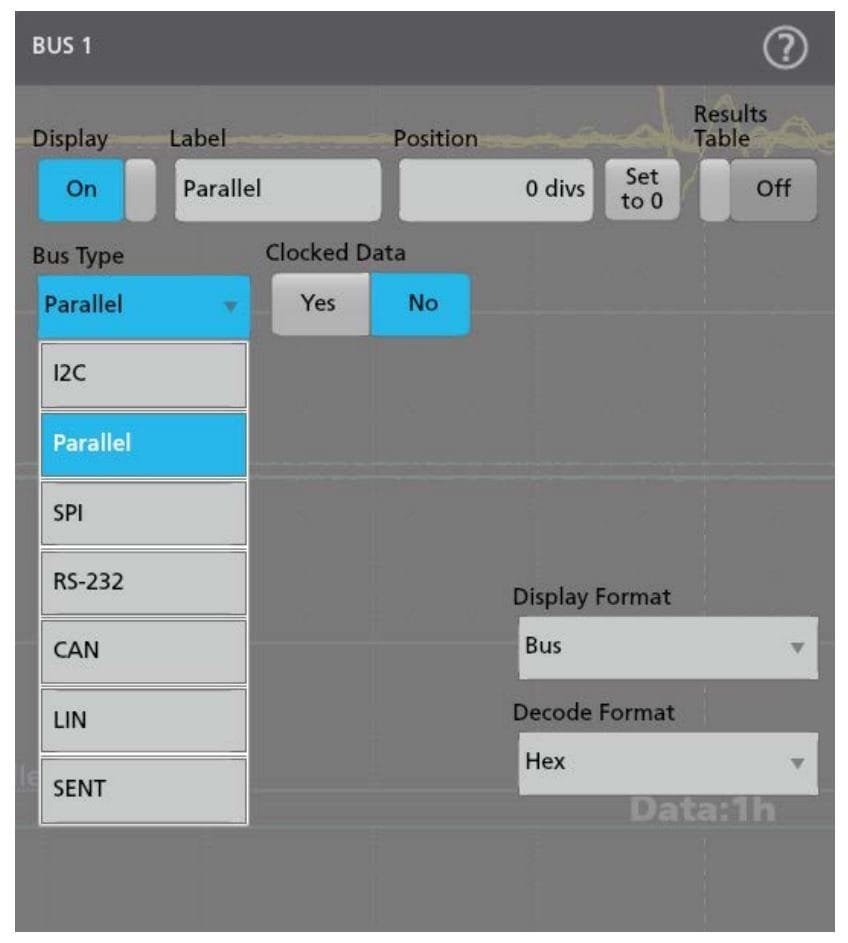

The Tektronix 2-SERIAL is the serial trigger and analysis option for 2 Series oscilloscopes. It a robust set of tools for working with the most common serial buses found in embedded design including I2C, SPI, RS-232/422/485/UART, CAN, CAN FD, LIN, SENT.

The protocol decode and triggering capability is invaluable to trace the flow of activity through a system by observing the traffic on one or more serial buses.

• Serial protocol triggering lets you trigger on specific packet content including start of packet, specific addresses, specific data content, unique identifiers, and errors.
• Bus waveforms provide a higher-level, combined view of the individual signals (for example clock, data, chip enable, etc.) that make up your bus, making it easy to identify where packets begin and end, and identifying sub-packet components such as address, data, identifier, CRC, and so on.
• The bus waveform is time-aligned with all other displayed signals, making it easy to measure timing relationships across various parts of the system under test.
• Bus decode table provides a tabular view of all decoded packets in an acquisition. Packets are time stamped and listed consecutively with columns for each component (address, data, and so on).
