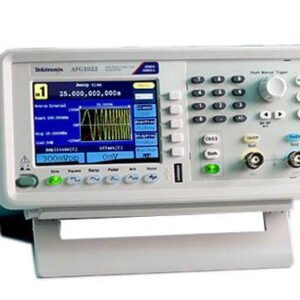

Tektronix AFG1022 Arbitrary Function Generator

34 people are viewing this product right now

Original price was: $1,180.00.Current price is: $1,121.00.

Shipping calculated at checkout.
or
Add to quote
Estimated delivery:3 days

Arbitrary /Function Generator: 2Channel, 125MS/s, 25MHz Sine Waveform, 14-bits, 3.9 Color LCD, 2U half rack, USB Host/Device

  • AFG1022 Arbitrary Function Generator
  • Dual-channel, 25 MHz sine wave, and 12.5 MHz square/pulse wave provides a cost effective solution for basic education and other applications
  • 125 MS/s sampling rate and 14-bit vertical resolution enable great signal fidelity
  • 1 mV p-p  to 10 V p-p  output amplitude over the whole frequency range
  • The intuitive user interface shortens the learning curve for students and other users
  • 2 to 8,192-point length of memory for user-defined arbitrary waveforms
  • 64-MByte internal non-volatile memory for arbitrary waveform storage
  • Standard USB host/device for memory expansion and remote control
  • Continuous, sweeping, burst, and modulation modes covers most requirements for students and other users to get the experiments/test job done
  • Built-in 200 MHz counter with 6-digit resolution offers an easy and precise way of frequency/period/pulse width/duty cycle measurement
  • Menu and online help are in English and Simplified Chinese
  • Compact form factor for stacking on other bench instruments to save valuable bench space
  • Free ArbExpress makes user defined waveforms editing extremely easy
  • Compatible with TekSmartLab for easy teaching and learning
SKU: Tektronix AFG1022 Tags: , Categories:
Pay safely with Visa Pay safely with Master Card Pay safely with PayPal Pay safely with Maestro Tooltip text
Guarantee Safe and Secure Payment Checkout

Description

Tektronix AFG1022 Arbitrary Function Generator

The AFG1022 Arbitrary Function Generator provides a waveform generation tool with the best price performance ratio. It includes dual channel, 25 MHz bandwidth and up-to 10 V p-p output amplitude. The four run modes, 50 built-in frequently-used waveforms and the built-in 200 MHz frequency counter cover most waveform generation needs in your experiment and test jobs. The 3.95-inch TFT LCD, short-cut buttons, USB interface and PC software provide the most intuitive ways to configure the instrument.

Applications

  • Electric and electronics experiments
  • Communications experiments
  • Sensor simulation
  • Functional test

Performance and features
1 μHz to 25 MHz sine waveform range, with 12-digit or 1 μHz resolution and a ±1 ppm drift high stability time base, provides great signal fidelity in the frequency domain. With 1 mV p-p to 10 V p-p output amplitude range, and 14-bit or 1 mV p-p resolution over the whole frequency range, there is no need to compromise between output amplitude and frequency any more.

Four different run modes and four modulation modes cover most use cases with a cost effective solution. 50 most-frequently used standard and arbitrary waveforms are built-in for easy access. Up to 8,192 points arbitrary waveforms memory enables users to replicate real world signals captured with a Tektronix oscilloscope or defined with ArbExpress. The built-in 200 MHz and 6 digit resolution frequency counter is an easy and precise way to measure frequencies/periods/pulse widths/duty cycles.

Ease of use
The high-resolution 3.95-inch color TFT display shows relevant settings and parameters in both text and graphic formats, which give users full confidence in their settings, and let them focus on the task at hand. The front panel shortcut buttons and rotary knob make accesses to most frequently used functions and settings with minimum effort and time. The built-in 64-MByte non-volatile memory together with USB stick memory interface, provide unlimited space for user-defined waveform storage.

Software and solutions
Compatible with ArbExpress, the user-defined arbitrary waveforms generated by the free software can be loaded on the AFG1022 easily with a USB memory stick.

As a building block of Tektronix educational solution, the AFG1022 can be embedded into TekSmartLab and enable a cost efficient and effective way of teaching, learning, and lab management.

Generators / Counters/Function Generator Template

Channels2
Frequency Maximum25 MHz
Frequency Minimum1 uHz (0.000001 Hz)
FunctionsNoise, Other, Pulse, Ramp, Sine, Square
Max Amplitude Vpp @ 50 ohms10 V
ArbitraryYes
Sample Rate125 MS/S (125 MSa/S)
Screen TypeLCD, TFT
Color ScreenYes
TriggeringYes
Counter that displays frequency on screen.Yes
Modulation TypesAM, FM, FSK, PSK, PWM
Memory64 MB (65536 kB)

Product General Attributes

Warranty5 YEARS
Warranty DetailsFive year warranty on parts and labor
Interfaces I/O Other, USB
StorageUSB Flash Drive
Product Weight3.4 KILOS (7.50 LBS)
Product Height4.4 IN
Product Width9.0 IN
Shipping Weight4.7 KILOS (10.36 LBS)
Data LoggingYes
Country of OriginChina
