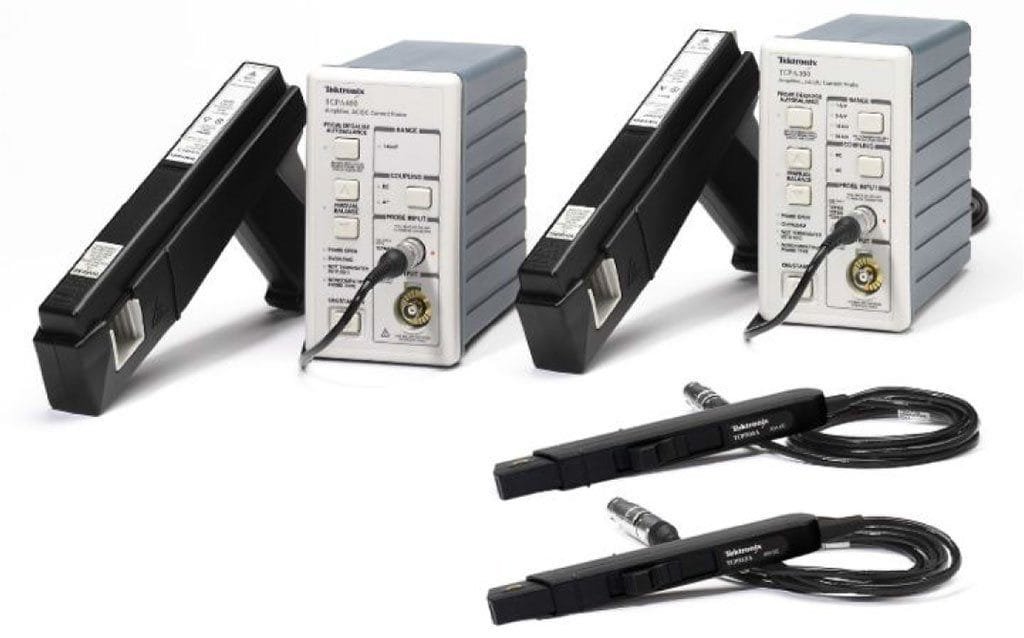

Tektronix TCP303 – AC/DC Current Probe (DC – 15 MHz, 150 A DC)
30 people are viewing this product right now
$5,140.00
Shipping calculated at checkout.
Estimated delivery:3 days
AC/DC Current Probe, DC to 15 Mhz, 150A – Requires TCPA300 Amplifier
- Maximum Current
- DC: 150 A
- Max RMS: 150 A
- Peak Current: 500 A
- Minimum Current: 5 mA
- Bandwidth: 15 MHz
- Rise Time: < 23 ns
- Automatic scaling and units – Oscilloscope on-screen readout of magnitude and amps reduces measurement errors with no more hand calculations
- AC/DC input coupling
- Low insertion impedance reduces device under test loading
- Split-core construction allows easy circuit connection
- Status indicators provide visual operating status and notification of potential error conditions – degauss, probe open, overload, not terminated into 50 Ω, noncompatible probe type
- Low DC drift and noise allows improved low-level currentmeasurements
- 3rd party safety certification
Guarantee Safe and Secure Payment Checkout
Description
Tektronix TCP303 – AC/DC Current Probe (DC – 15 MHz, 150 A DC)
- Maximum Current
- DC: 150 A
- Max RMS: 150 A
- Peak Current: 500 A
- Minimum Current: 5 mA
- Bandwidth: 15 MHz
- Rise Time: < 23 ns
- Automatic scaling and units – Oscilloscope on-screen readout of magnitude and amps reduces measurement errors with no more hand calculations
The TCP303 AC/DC current measurement family is a highly advanced current measurement system for today’s current measurement needs. When connected to Tektronix oscilloscopes with TEKPROBE Level II, TekConnect (w/ TCA-BNC), or TekVPI (w/ TPA-BNC) interfaces, current measurements and calculations are simple and easy
Applications
- Power supplies (switching and linear)
- Semiconductor devices (SCRs, IGBTs, MOSFETs, CMOS, BJTs)
- Power inverters/converters
- Electronic ballasts
- Industrial/consumer electronics
- Mobile communications (phone, satellite, relay stations)
- Motor drives
- Transportation systems (electronic vehicles, electric trains,locomotives, avionics)
Product General Attributes | |
|---|---|
| Product Height | 3.40 IN |
| Product Length | 14.70 IN |
| Product Width | 12.80 IN |
| Shipping Weight | 2.70 LBS |
| Country of Origin | China |
| Shipping Height | 3.40 IN |
| Shipping Length | 14.70 IN |
| Shipping Width | 12.80 IN |
You must be logged in to post a review.
Manuals/Guides
ManualsSpec SheetsApplication Notes
| Weight | 2.7 lbs |
|---|---|
| Dimensions | 14.7 × 12.8 × 3.4 in |
