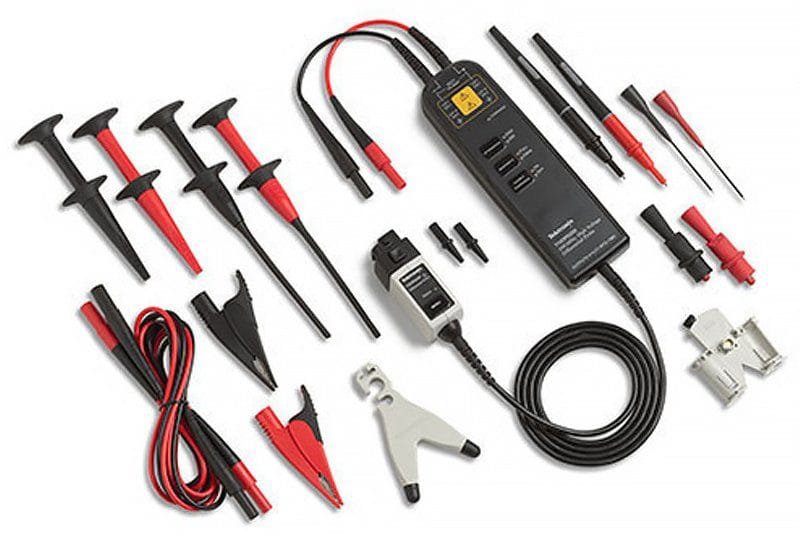

Tektronix THDP0200 – 200 MHz High Voltage Differential Probe

Name: Tektronix THDP0200 - 200 MHz High Voltage Differential Probe - NESTES Instruments
SKU: Tektronix THDP0200
Price: 2880.00 USD
Availability: InStock

Brand:

Tektronix

Please, activate Wishlist option to use this widget.

Please, activate Compare option to use this widget.

11 people are viewing this product right now

$2,880.00

Shipping calculated at checkout.

Add to quote

Estimated delivery:5 days

Differential PROBE; 200 MHZ TekVPI DIFFERENTIAL HIGH VOLTAGE PROBE

Attenuation: 50X / 500X
Bandwidth: 200 MHz
Input Impedance: 10 MΩ || 2 pF
Maximum Voltage
- 500X: ± 1500 V
- 50X: ± 150 V
Selectable Bandwidth-limiting Filters
DC Reject
Small Compact Probe Head for Probing Small Geometry Circuit Elements
Straight Pin, Square Pin, Solder Down, Variable Pitch Standard Accessories
Robust Design for Reliability
Provides Automatic Units Scaling and Readout on the Oscilloscope Display
Connect Directly to the DPO7000, DPO4000, and MSO4000 Series Oscilloscopes Using TekVPI™ Probe Interface (No additional power adapters required)
Easy Access to Scope-displayed Probe Menu for Probe Setup Control and Operating Status Information
AutoZero – Zeros Out Output Offset
High-speed Switch Mode Power Supply Design
CAN/LIN Bus Design
High-speed Digital Design
Digital Design and Characterization
Manufacturing Engineering Test
Research and Development

SKU: Tektronix THDP0200 Tags: Accessories, Probes Categories: Probes

Have any Questions?

Feel free to Get in touch

Guarantee Safe and Secure Payment Checkout

Description

Reviews (0)

Manuals/Guides

Additional information

Description

Tektronix THDP0200

Attenuation: 50X / 500X
Bandwidth: 200 MHz
Input Impedance: 10 MΩ || 2 pF
Maximum Voltage

500X: ± 1500 V
50X: ± 150 V

Selectable Bandwidth-limiting Filters

200 MHz High Voltage Differential Probe

A high-voltage differential probe is used for measuring the voltage difference between two test points where neither test point is at the ground. High voltage differential probes from Tektronix can be used for signals up to 6000 V. These probes are the best choice for making non-ground referenced, floating, or isolated measurements in large part due to their common-mode rejection capability. These products are designed, manufactured, and serviced by Tektronix.
