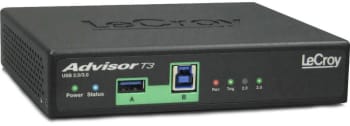

Teledyne LeCroy Advisor 3.0 Std Prot – Super Speed USB Analyzer

• USB 3.0 Standard Protocol Analyzer System
• 2 GB Memory and Spool-toDisk Capture
• Fast Signal Locking
• Hardware Triggering
• Full Class Decoding
• Extensive Decodes

Hardware Triggering

Hardware-based event triggering is essential for pinpointing protocol events when operating at 5Gbps signaling speed. With the Advisor T3, triggering can be specified at the lowest levels including bus states, ordered sets (U0, SKP, etc…), packet types, or header fields (End of Burst, Packets Pending, etc…). The Advisor analyzer can also filter unwanted traffic from the buffer in real-time by discarding redundant patterns such as SKPs, idles, and training sequences.

Compact and Convenient

The Advisor’s unique small form-factor fits within any briefcase yet boast 2GB of recording memory. The system also offers spool-to-disk capture, making it well suited for testing software drivers or analyzing system performance. Like all Teledyne LeCroy analyzers, the Advisor features field upgradeable firmware allowing the system to evolve with the specifications.

6th Generation Analysis Software

The Advisor T3 provides many of the same features as the Voyager system including the legendary CATC Trace which has become the industry’s de-facto standard for USB 2.0 protocol analysis. This intuitive hierarchical display can be expanded to show packet-level events or collapsed to show complete transfers. A comprehensive toolset is included allowing traffic to be individually searched, grouped, or filtered from the trace.

The Advisor T3 is based on Teledyne LeCroy’s Voyager analyzer platform with its fast signal-lock and uncompromised 5Gbps recording accuracy. Designed to sit in-line between host and device, the Advisor provides loss-less capture of USB 2.0 or USB 3.0 traffic. Every event is time-stamped including logical state changes and LFPS signals. With its intelligent termination detect mode, the Advisor seamlessly captures in-band reset and hot-plug behaviors between devices.

USB Device Decoding

The Advisor T3 software will automatically assign device class decodes using data reported during enumeration by each endpoint. Manual decoding assignment is also available from a drop-down menu providing unparalleled support for USB device types. There’s full support for the USB OTG specification as well as Video class 2.0, Mass Storage, and USB Attached SCSI (UAS) protocol.

Raw Debugging Power

The Advisor T3 includes the Link Tracker display that captures every transition and presents raw 10-bit data patterns chronologically with a timing resolution of 2ns. Designed to assist with low-level debugging, all ordered sets including training sequences and inter-packet symbols can be displayed in 10-bit, 8-bit, scrambled, and unscrambled Hex format. Unlike Pipe-PHY based analyzers that swallow 10-bit symbol errors, the Advisor T3 shows malformed packets, framing errors, and invalid codes to allow an unambiguous analysis of link problems.
