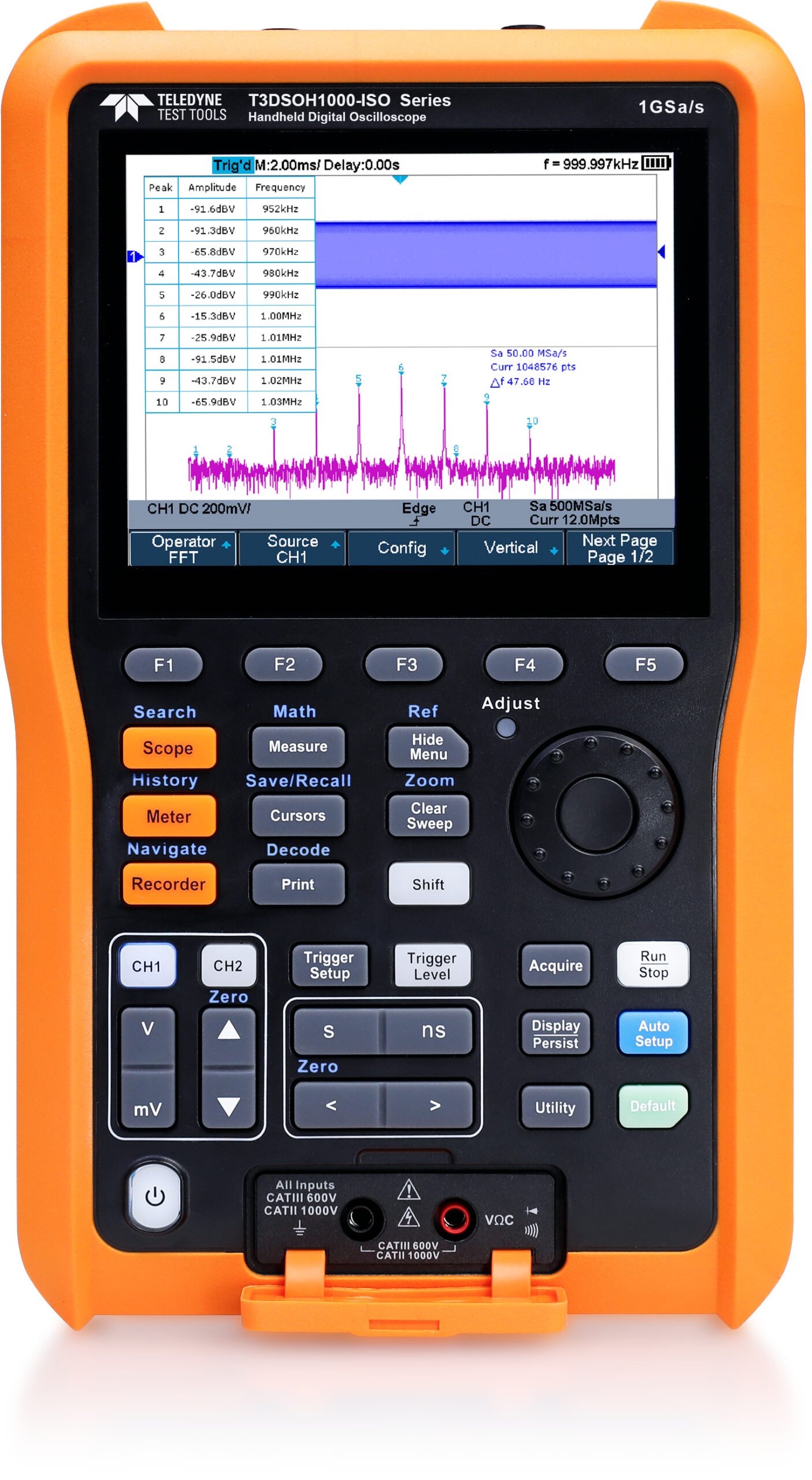

Teledyne LeCroy T3DSOH1202-ISO – Handheld Oscilloscope (200 MHz, Isolated Inputs)

• 200 MHz bandwidth

• Two independent floating CAT III 600V/CAT II 1000V rated isolated inputs
• Vertical Scale: 5 mV/div–100 V/div (1-2-5 sequence)
• Max Sample rate of 1 GSa/s (single channel), 500 MSa/s (two channels)
• True-RMS measurements – All AC Voltage and Current ranges give True-RMS readings

The Teledyne Test Tools DSOH1000 and DSOH1000-ISO handheld oscilloscopes integrate oscilloscope, recorder, and multimeter functions into a convenient and portable design. Weighing only 1.7 kg (3.8 lbs.), the battery-powered DSOH series can be used for field testing, automotive, R&D, and industrial maintenance.

The Teledyne T3DSOH1000 and T3DSOH1000-ISO has a UL2054 certified lithium battery pack, 6900 mAh capacity, external charger. The handheld oscilloscopes have and IP51 dust and drip-proof housing. The Rubberized surface with large key makes it easy to use with gloves.

The Teledyne T3DSOH1000 and T3DSOH1000-ISO have isolated USB Host and USB device (Micro-USB).

T3DSOH1000-ISO models have CAT III 600V/CAT II 1000V rated isolated inputs. The 6000 counts digital multimeter supports DCV, ACV, DCI, ACI, Resistance, Diode, Capacitance, and continuity test. IT is a True RMS AC voltage/current measurement multimeter. Included current adapters helps in current measurement up to 10A.

SPO display technology provides fast refresh rates. The resulting intensity-graded trace is brighter for events that occur with more frequency and dims when the events occur with less frequency.

The color temperature display is similar to the intensity-graded trace function, but the trace occurrence is represented by different colors (color “temperature”) as opposed to changes in the intensity of one color. Red colors represent events that occur more frequently, while blue is used to mark points that occur less frequently.

Using hardware-based Zoom technologies and max record length up to 12 Mpts, users can oversample to capture for longer periods at higher resolution and use the zoom feature to see more details within each signal.

With a waveform capture rate of up to 400,000 wfm/s (sequence mode), the oscilloscope can easily capture unusual or low-probability events.

The T3DSOH displays the decoding through the events list. Bus protocol information can be quickly and intuitively displayed in a tabular format.

Playback the latest triggered events using the history function. Segmented memory collection will store trigger events into multiple (Up to 80,000) memory segments, each segment will store triggered waveforms and timestamps for each frame.

T3DSOH uses a UL2054 certified lithium battery package. The battery capacity of 6900 mAh can guarantee long-term operation without an external power supply for up-to 5.5 hours (T3DSOH1000 series) and 4 hours (T3DSOH1000-ISO series). The battery supports an external charger to further meet the requirements of portability.

T3DSOH supports adapter power supply and battery power supply. After connecting the adapter, the battery enters into charging mode. The adapter provides a maximum 4 A output current.
